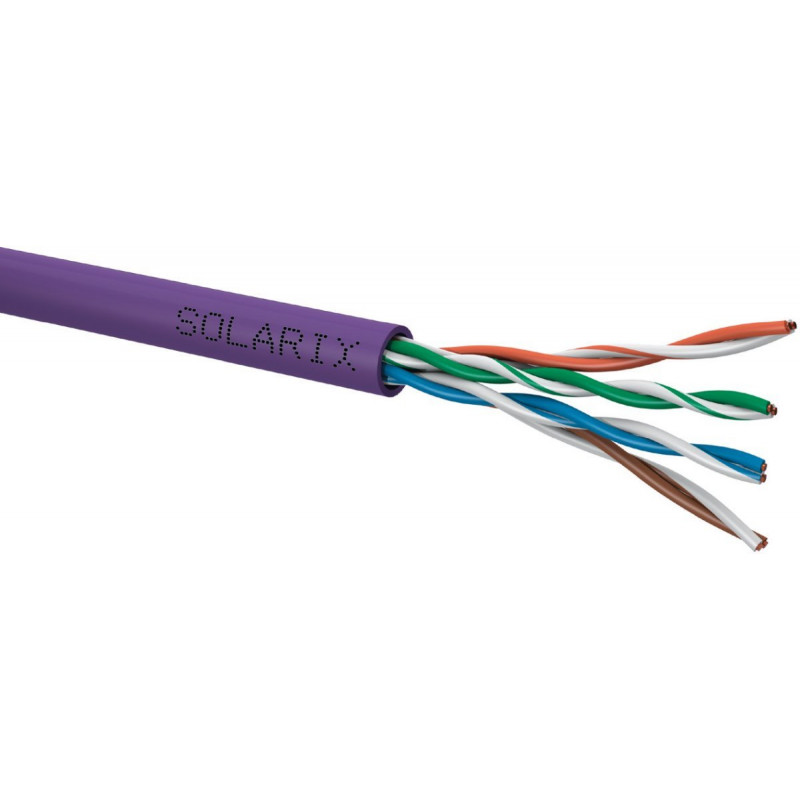

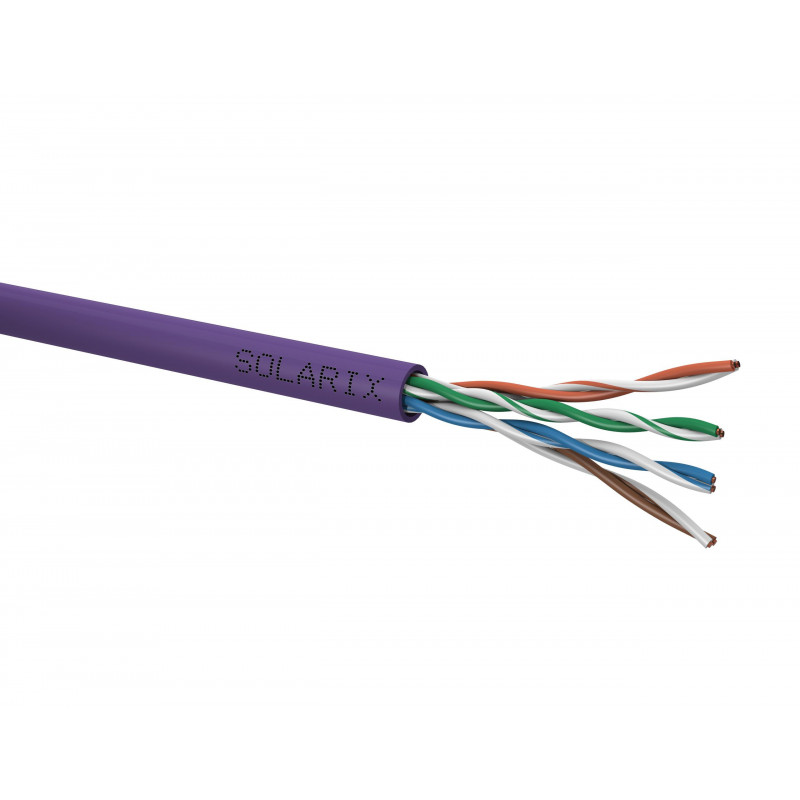

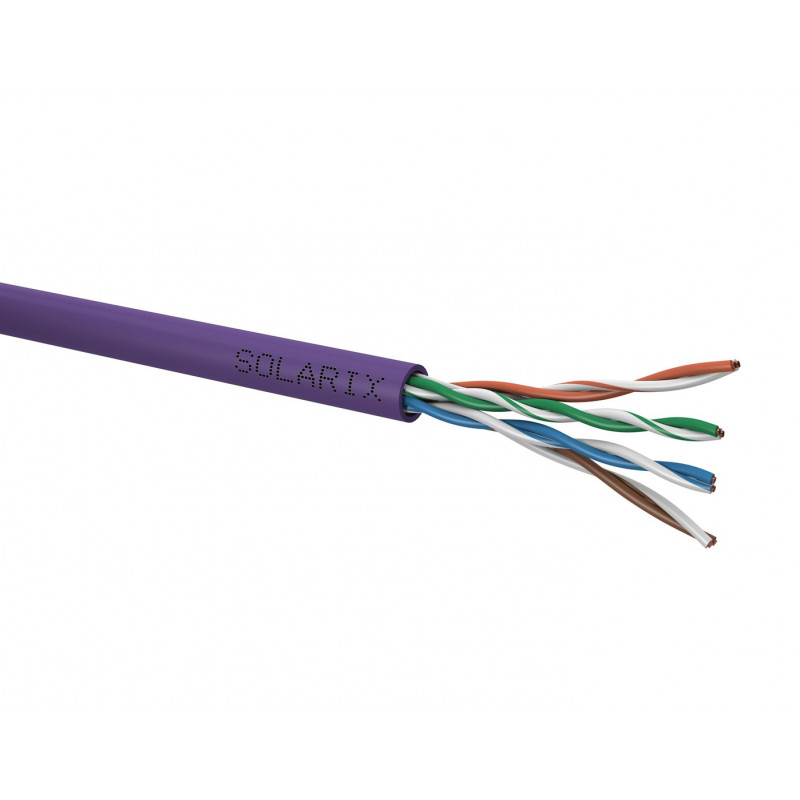

SOLARIX Cat5e U/UTP sieťový kábel, 500 m, LSZH

The SOLARIX Cat5e U/UTP Network Cable is a reliable unshielded twisted pair cable designed for structured cabling installations. Supplied in a 500 m length, it features a Low Smoke Zero Halogen (LSZH) jacket and is tested up to 350 MHz, supporting Ethernet protocols including 2.5GBASE-T and 5GBASE-T. The cable meets international standards and is suitable for horizontal cabling in network infrastructures.

Key features

• Unshielded twisted pair (U/UTP) construction
• Tested up to 350 MHz bandwidth
• Supports 2.5GBASE-T and 5GBASE-T Ethernet protocols
• LSZH jacket with fire reaction class Dca-s1,d2,a1
• 99.97% pure copper conductors
• Length marking every 1 m from 0 to 500 m
• Complies with ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D standards
• Independently tested by FORCE TECHNOLOGY under EC Verified program at Component Level
• CPR tested according to AVCP 3

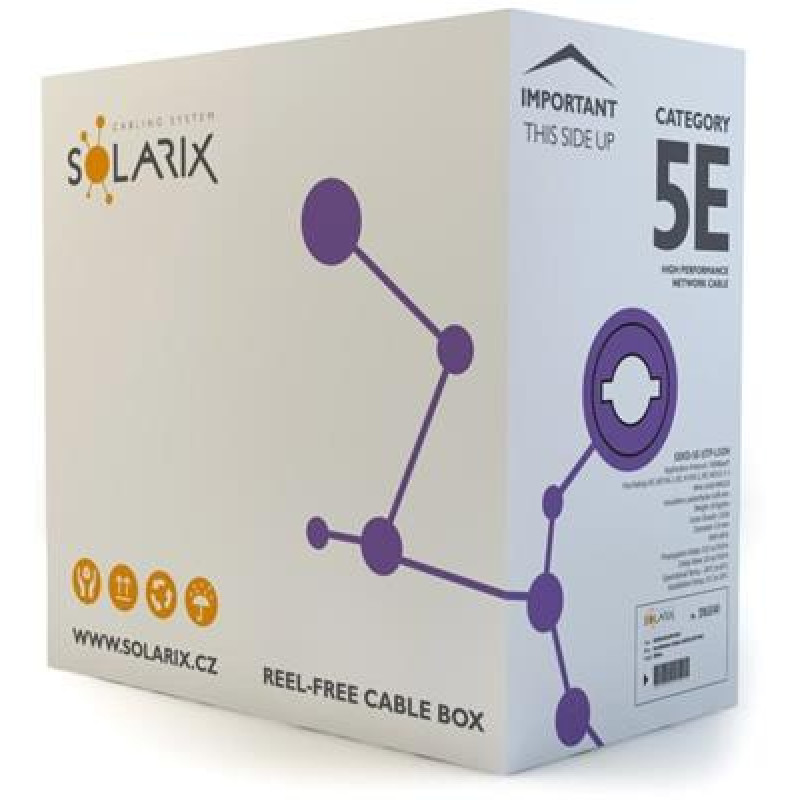

• Supplied in a durable three-layer cardboard box

Specifications

• Brand: SOLARIX
• MPN: 51493R
• Product type: Network Cable
• Cable length: 500 m
• Cable standard: Cat5e
• Cable shielding: U/UTP
• Jacket material: Low Smoke Zero Halogen (LSZH)
• Fire reaction class: Dca-s1,d2,a1
• Conductor type and size: copper wire 0.50 mm ± 0.005 mm
• Insulation and conductor diameter with insulation: HDPE 0.88 mm
• Jacket colour: violet RAL 4005
• Nominal cable diameter: 5.0 mm
• Weight: 30.2 kg/km
• NVP: 68%
• Propagation delay: 535 ns/100 m
• Delay skew: ≤45 ns/100 m
• Storage temperature: -20 °C to 60 °C
• Operating temperature: -20 °C to 60 °C
• Installation temperature: 0 °C to 50 °C
• Packaging: 500 m, three-layer cardboard box
• Packaging dimensions (H x D x W): 420 mm x 420 mm x 215 mm
