Solplanet ASW 8K-LT G2 3-fázový sieťový menič, 8 kW, 2 MPPT, Wi-Fi

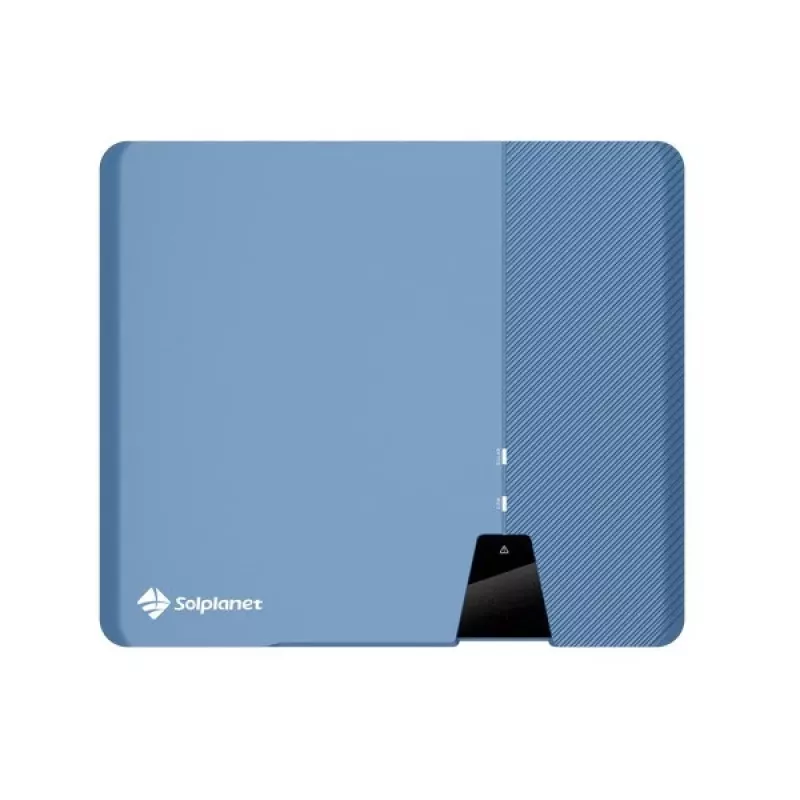

The Solplanet ASW 8K-LT G2 is a high-performance 3-phase grid-tied inverter designed for residential and commercial solar installations. With 8kW rated output power and dual MPPT trackers, it maximizes energy harvest while ensuring reliable operation. Built with IP65 protection and natural convection cooling, it is suitable for outdoor installation and operates efficiently in a wide temperature range.

Advantages

High efficiency up to 98.6% with European efficiency of 97.9% ensures maximum energy yield. Dual MPPT trackers with wide voltage range optimize performance under partial shading. Integrated Wi-Fi for easy monitoring and optional 4G/Ethernet connectivity. Compact and lightweight design simplifies installation.

Suitable for

• Residential and commercial solar systems
• Three-phase grid connections
• Outdoor installations (IP65 rated)
• Systems requiring remote monitoring

Key specifications

• Rated AC Output Power: 8000 W
• Max AC Output Power: 8800 VA
• Number of MPPTs: 2
• Max DC Input Power: 12000 W
• Max DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 V - 1000 V
• Start-up Voltage: 180 V
• Max Input Current per MPPT: 16 A
• Nominal AC Voltage: 3/N/PE, 220/380 V, 230/400 V, 240/415 V
• AC Frequency: 50/60 Hz
• Max Efficiency: 98.6%
• European Efficiency: 97.9%
• Communication: Wi-Fi (standard), optional 4G/GPRS, Ethernet
• Ingress Protection: IP65
• Operating Temperature: -25°C to +60°C
• Cooling: Natural Convection
• Protection: DC reverse polarity, AC short circuit, AC overcurrent, AC overvoltage, islanding, RCMU, surge Type II DC & AC

Recommendations

For optimal performance, pair with high-quality solar panels and ensure proper ventilation. Use the Solplanet monitoring app for real-time data and system management.
