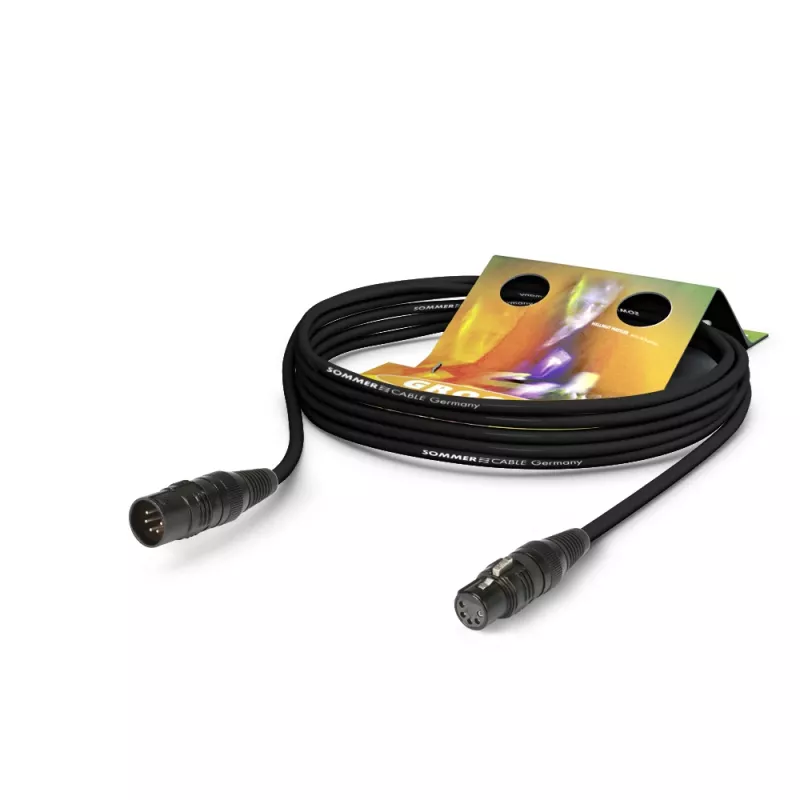

Sommer Cable Binary 434 DMX512 kábel, 4 x 0,34 mm², XLR konektor samec 5-pol. na XLR konektor samica 5-pol., HICON, čierny, 5 m (B4GSU0500-SW)

The Sommer Cable DMX512 Binary 434 4 x² is a high-quality, ready-to-use patch cable designed for professional DMX512 lighting control and AES/EBU digital audio applications. Featuring a 1-meter length, this cable is equipped with HICON XLR 3-pin male and female connectors, ensuring reliable signal transmission in demanding environments. The cable's double shielding and 110 Ohm impedance guarantee interference-free performance, making it an ideal choice for stage, studio, and installation use.

Advantages

This cable offers exceptional durability and signal integrity thanks to its robust construction. The double shielding (braided copper and AL/PT foil) effectively rejects electromagnetic interference, while the OFC copper conductors ensure low resistance and high conductivity. The PVC jacket provides flexibility and protection against mechanical stress, and the HICON connectors are known for their reliable locking mechanism and long service life.

Suitable for

• DMX512 lighting control systems
• AES/EBU digital audio connections
• Microphone cable applications
• Professional audio and lighting setups in theaters, clubs, and events

Key specifications

• Cable type: DMX512 / AES/EBU
• Connector 1: XLR 3-pin male (HICON)
• Connector 2: XLR 3-pin female (HICON)
• Cable length: 1.0 m
• Impedance: 110 Ohm
• Conductor: 2 x 2 x 0.22 mm² (4 conductors, 2 twisted pairs), OFC copper
• Shielding: Double shielded (braided copper + AL/PT foil)
• Jacket: PVC, 6.5 mm diameter
• Capacitance: 45 pF/m (conductor/conductor), 85 pF/m (conductor/shield)
• Temperature range: -30°C to +70°C
• Dielectric strength: 1500 V
• Insulation resistance: > 1 GOhm x km
• Colour: Black

Recommendations

For optimal performance in DMX512 networks, use this cable with proper termination and avoid excessive daisy-chaining. Pair with Sommer Cable DMX splitters and adapters for a complete, reliable system.
