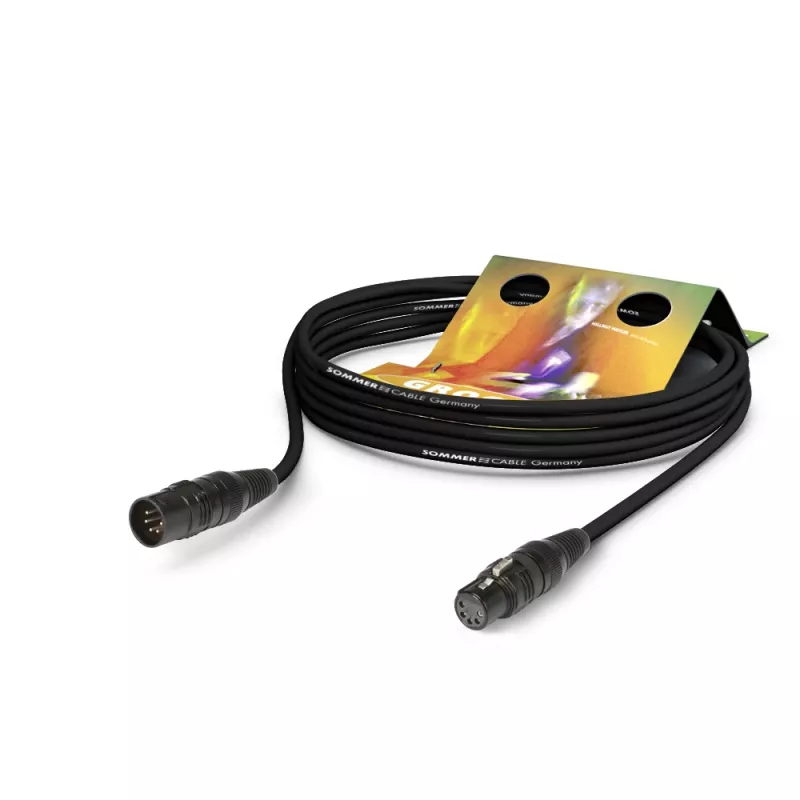

Sommer Cable DMX512 Binary 434 4 x² XLR samec samica HICON - 10m čierna

The Sommer Cable DMX512 Binary 434 is a high-performance cable designed for professional DMX512 lighting control and AES/EBU digital audio applications. This 10-meter cable features two HICON XLR 5-pin connectors (male to female) and a robust construction with 2 x 2 x 0.22 mm² conductors made of high-purity oxygen-free copper (OFC). The cable is shielded with an AL/PT foil and braided copper shield (90% coverage) to ensure reliable signal transmission and minimal interference. With a characteristic impedance of 110 Ohm and low capacitance, it is ideal for demanding stage, studio, and installation environments.

Advantages

This cable offers exceptional signal integrity and durability. The dual shielding provides excellent protection against electromagnetic interference, while the high-quality OFC conductors ensure low loss and clear audio or data transmission. The HICON connectors are known for their robust design and secure locking mechanism, making them suitable for frequent use in live events and permanent installations.

Suitable for

• DMX512 lighting control systems
• AES/EBU digital audio connections
• Intercom systems
• Professional stage and studio setups

Key specifications

• Cable type: DMX512 / AES/EBU
• Connectors: HICON XLR 5-pin male to female
• Length: 10 meters
• Conductors: 2 x 2 x 0.22 mm² (4 conductors)
• Impedance: 110 Ohm
• Shielding: AL/PT foil + braided copper (90% coverage)
• Jacket: PVC, black, 6.5 mm diameter
• Capacitance: 45 pF/m (cond/cond), 85 pF/m (cond/shield)
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance in DMX512 networks, use this cable with proper termination and avoid excessive daisy-chaining. The 110 Ohm impedance is also ideal for AES/EBU digital audio signals up to 192 kHz.
