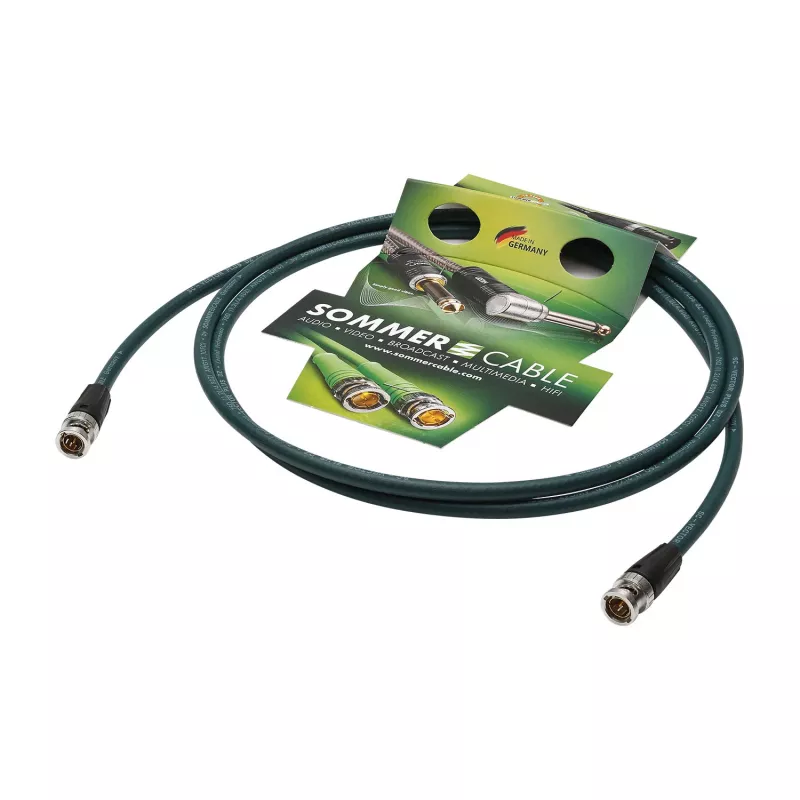

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ UHD video patch kábel, BNC konektor samec na BNC konektor samec, NEUTRIK, zelená, 20 m (DZGR-2000-GN-SW)

The Sommer Cable SC-Vector PLUS 1.2/4.8 DZ HD-SDI Video Patch Cable is a professional-grade coaxial cable designed for high-definition serial digital interface (HD-SDI) and 3G-SDI video transmission. With a length of 0.5 meters and equipped with two BNC male connectors (HICON), this cable is ideal for short patch connections in broadcast studios, live events, and post-production environments. It features a solid copper conductor, gas-foamed polyethylene dielectric, and double shielding (aluminum/PT foil plus copper braid with 95% coverage) to ensure excellent signal integrity and minimal interference.

Advantages

This cable delivers reliable performance for HD-SDI and 3G-SDI signals up to 3 Gbps, with low attenuation (16.0 dB per 100 m at 1 GHz) and high return loss (>20 dB). The robust double shielding protects against electromagnetic interference, while the PVC jacket provides durability and flexibility for everyday use. The 75-ohm impedance ensures compatibility with standard broadcast equipment.

Suitable for

• Professional broadcast studios
• Live event production
• Video post-production
• HD-SDI and 3G-SDI patch panels
• Short-distance video signal connections

Key specifications

• Cable type: HD-SDI Video Patch Cable
• Series: Sommer Cable SC-Vector PLUS 1.2/4.8 DZ
• Impedance: 75 Ohm
• Connectors: BNC Male to BNC Male (HICON)
• Cable length: 0.5 m
• Conductor: Solid Copper, 1.2 mm diameter
• Dielectric: Gas-foamed Polyethylene (PE)
• Shielding: Double Shielded (AL/PT Foil + Copper Braid, 95% coverage)
• Outer diameter: 7.0 mm
• Jacket material: PVC
• Cable color: Black
• Supported standards: HD-SDI, 3G-SDI (SMPTE 292M, 424M)
• Attenuation: ~16.0 dB/100m @ 1 GHz
• Return loss: >20 dB/100m @ 1 GHz
• Velocity of propagation: 82%
• Capacitance: 52 pF/m
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, use this cable for short patch connections within racks or between devices. Ensure BNC connectors are properly tightened to maintain signal integrity. This cable is not intended for outdoor or long-distance runs.
