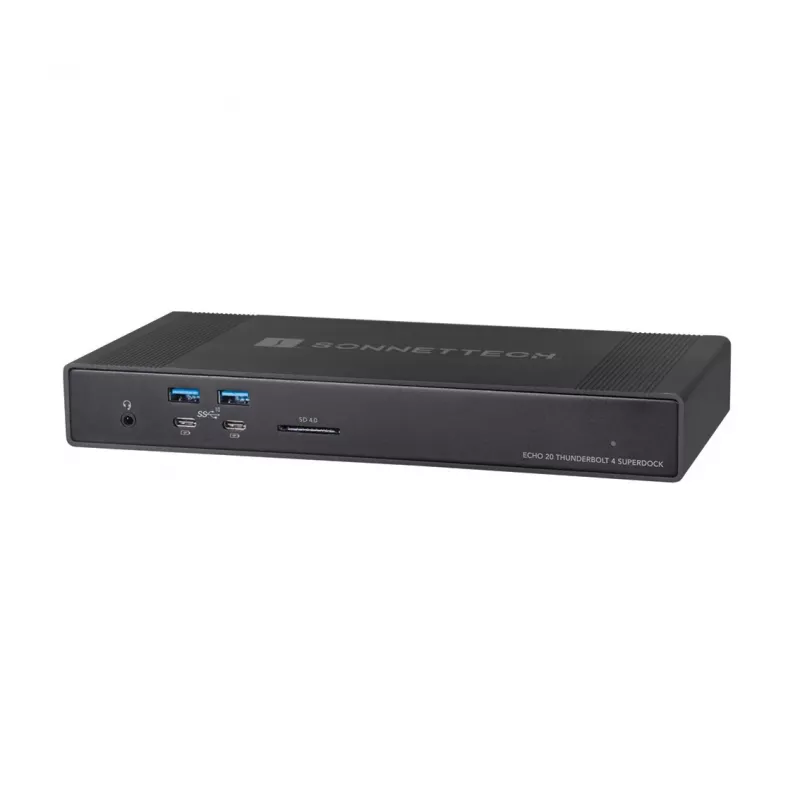

Sonnet Echo 20 Thunderbolt 4 SuperDock káblová čierna 100W Power Delivery 2500 Mbit/s

The Sonnet Echo 20 Thunderbolt 4 SuperDock is a wired docking station that expands a computer’s connectivity with Thunderbolt 4 performance, up to 100W power delivery, an internal M.2 NVMe SSD slot, HDMI display output, 2.5 Gigabit Ethernet, multiple high-speed USB ports, SD card reader, and dedicated RCA audio outputs. It connects to a computer with a single Thunderbolt cable (0.7 m included) and is compatible with Apple M series Macs, Thunderbolt 3 Intel Macs, Thunderbolt 3/4 and USB4 Windows systems, Thunderbolt 4/USB4 Chromebooks, and M series iPad Pro.

Advantages

The Echo 20 SuperDock consolidates power, storage expansion, networking, and peripheral connections into one device, enabling a single-cable workflow with up to 100W charging to the host computer. It offers an internal M.2 NVMe slot for up to 8TB of additional storage (SSD sold separately), a built-in HDMI port for direct display connection, and a 2.5 Gb/s Ethernet interface that delivers faster transfers over existing Cat5e or better cabling. Four USB-A and four USB-C ports provide 10Gbps USB 3.2 Gen 2 speeds with up to 7.5W per port; the dock also includes an SD UHS-II card reader, stereo RCA outputs, and security features such as a Thunderbolt 4 cable with ThunderLok 4 retainer and Kensington Lock compatibility.

Suitable for

• Professionals who need multiple displays and high-speed peripheral connections
• Photographers and videographers who require fast SD card and NVMe SSD transfers
• Home and small office users who want faster-than-gigabit Ethernet without rewiring
• Laptop users who prefer a single-cable docking and 100W charging

Key specifications

• Host interface: Thunderbolt 4 (includes Thunderbolt 4 cable, 0.7 m)
• Power Delivery: up to 100W to computer via rear Computer/Charging port
• Internal SSD: M.2 NVMe slot, supports up to 8TB (SSD sold separately); transfer rates up to ~800 MB/s
• Ethernet: 2.5 Gigabit Ethernet (2500 Mbit/s); backward compatible with 1Gb/s and 100Mb/s
• Video outputs: 1× HDMI onboard; Thunderbolt ports support single up to 8K or dual 6K @60Hz depending on host capabilities
• USB: 4× USB-A (USB 3.2 Gen 2, 10Gbps, up to 7.5W each), 4× USB-C (USB 3.2 Gen 2, 10Gbps, Type-C charging supported)
• Media reader: UHS-II SD card slot (up to 320 MB/s read)
• Audio: stereo RCA outputs
• Security: ThunderLok 4 retainer included; Kensington Lock slot ready
• Colour: Black

How to use

Place the Echo 20 SuperDock on a stable surface and connect it to your computer using the supplied Thunderbolt 4 cable. Install an M.2 NVMe SSD by removing the two screws on the bottom panel, inserting the SSD into the internal slot, and reinstalling the cover. Connect monitors to the onboard HDMI port or to the Thunderbolt/USB-C ports as supported by your host. Attach USB peripherals, an Ethernet cable, SD cards, and RCA audio cables as needed. The dock will provide power to the connected laptop (up to 100W) and supply up to 15W on downstream Thunderbolt ports and up to 7.5W on each USB port for bus-powered devices.

Recommendations

For best network performance use Cat5e or higher cabling and a 2.5Gb Ethernet-capable switch or NAS. Choose an M.2 NVMe SSD that is listed as compatible in Sonnet’s NVMe SSD compatibility documentation. When using multiple high-bandwidth devices and displays, verify your computer’s Thunderbolt/USB4 video and bandwidth capabilities to ensure the desired multi-display and throughput configuration.
