Soundcraft EFX8 analógový mixpult s efektovým procesorom

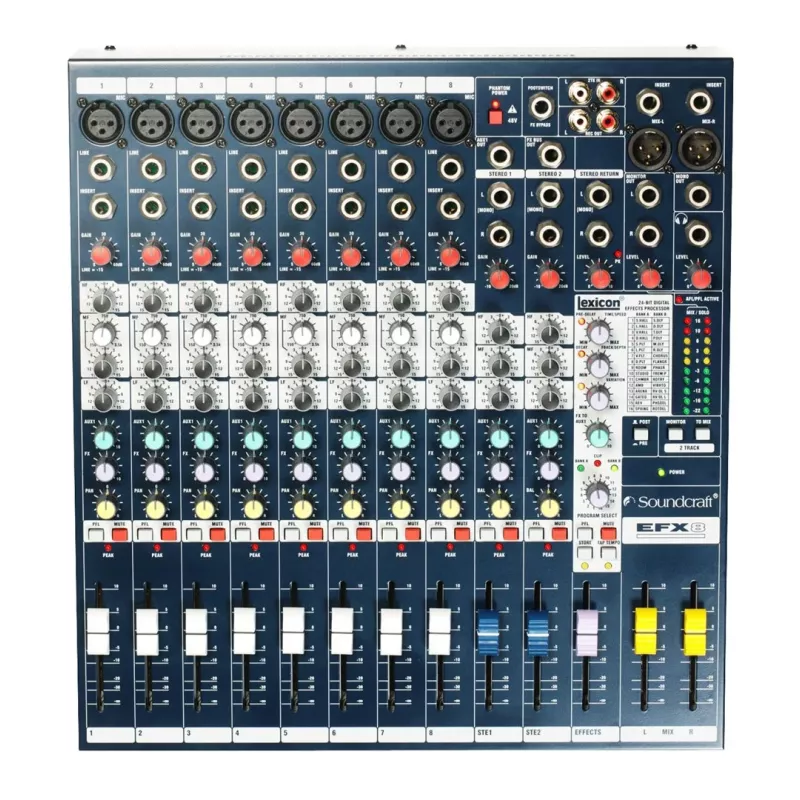

The Soundcraft EFX8 is a professional analog mixing console featuring 8 mono input channels and 2 stereo input channels, equipped with a built-in Lexicon 24-bit digital effects processor. Designed for live sound and studio applications, it offers 32 effects presets with tap tempo and three parameter controls, providing versatile sound shaping capabilities. The console includes 3-band EQ with swept mid on mono channels, 2 aux sends, global +48V phantom power, and 60mm faders for precise control. Its robust construction and internal universal power supply make it suitable for both fixed installations and touring.

Advantages

The EFX8 combines the reliability of analog circuitry with high-quality digital effects, offering a cost-effective solution for venues, churches, and bands. The Lexicon effects processor delivers studio-grade reverb, delay, and modulation effects, while the intuitive layout ensures quick setup and operation. The swept mid EQ on mono channels allows for precise frequency adjustments, and the dedicated PFL/Solo and mute functions on each channel enhance monitoring flexibility.

Suitable for

• Live sound reinforcement in small to medium venues
• House of worship sound systems
• Band rehearsals and small gigs
• Studio recording and mixing
• Portable PA systems

Key specifications

• Input Channels: 8 Mono (XLR/TRS), 2 Stereo (TRS)
• Built-in Effects: Lexicon 24-bit Digital Effects Processor with 32 presets
• EQ: 3-band with swept mid on mono channels, 3-band fixed on stereo channels
• Aux Sends: 2 (1 configurable Pre/Post, 1 FX Post-fader)
• Phantom Power: +48V Global
• Faders: 60mm
• Main Outputs: XLR (L/R)
• Inserts: On all mono channels and main mix output
• Frequency Response: 20Hz - 20kHz (+/-1.5dB)
• THD+N: <0.02% @ 1kHz
• Mic EIN: -128dBu (150 Ohm source)
• Power Supply: Internal Universal
• Rack Mountable: Yes (with optional kit)

Recommendations

For optimal performance, use high-quality XLR and TRS cables. The optional rack mount kit allows integration into standard 19-inch racks. Ensure proper ventilation around the unit to prevent overheating.
