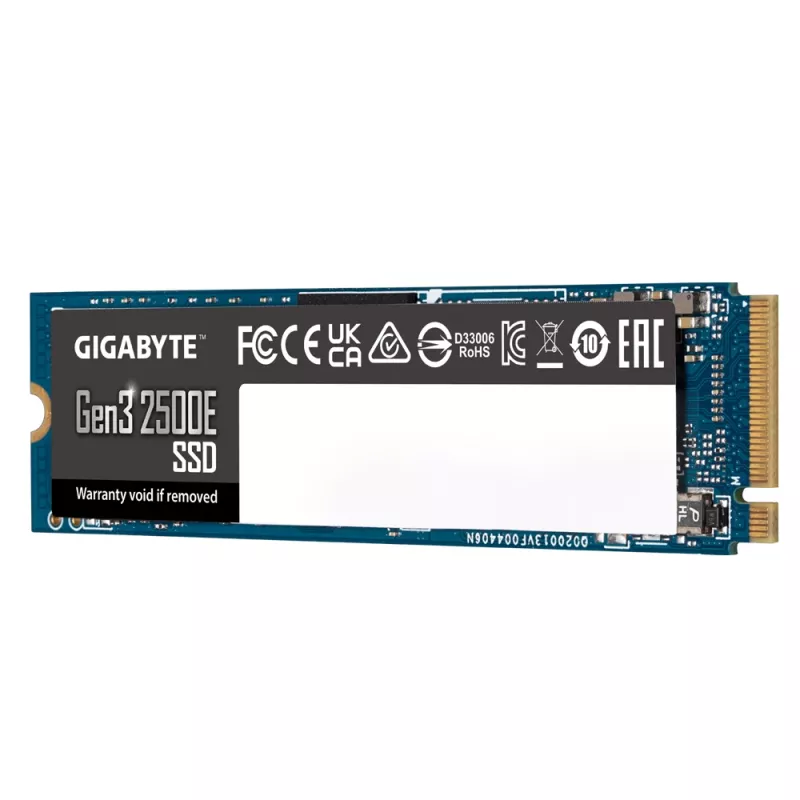

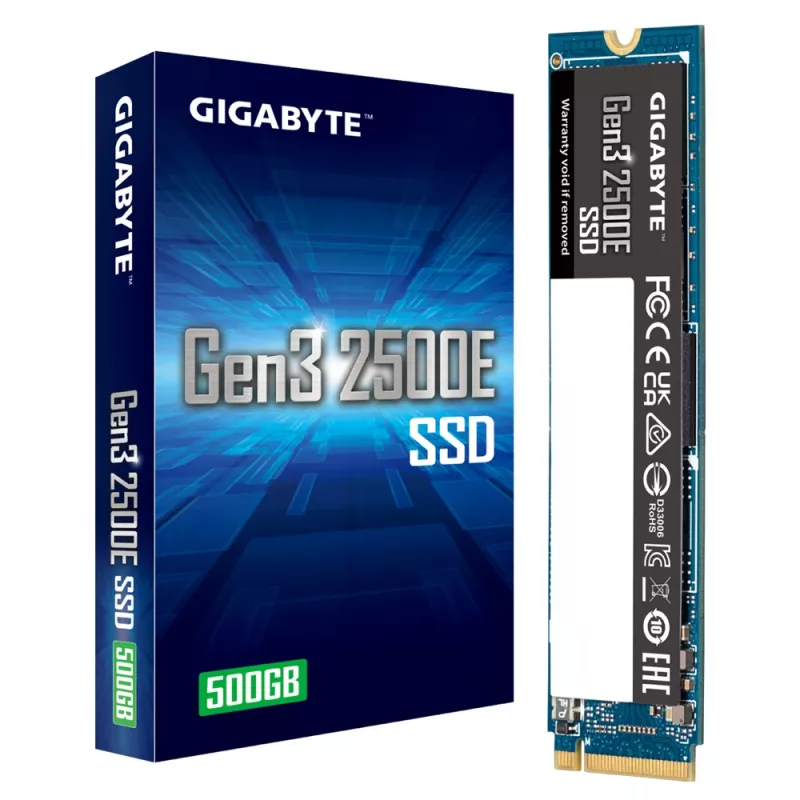

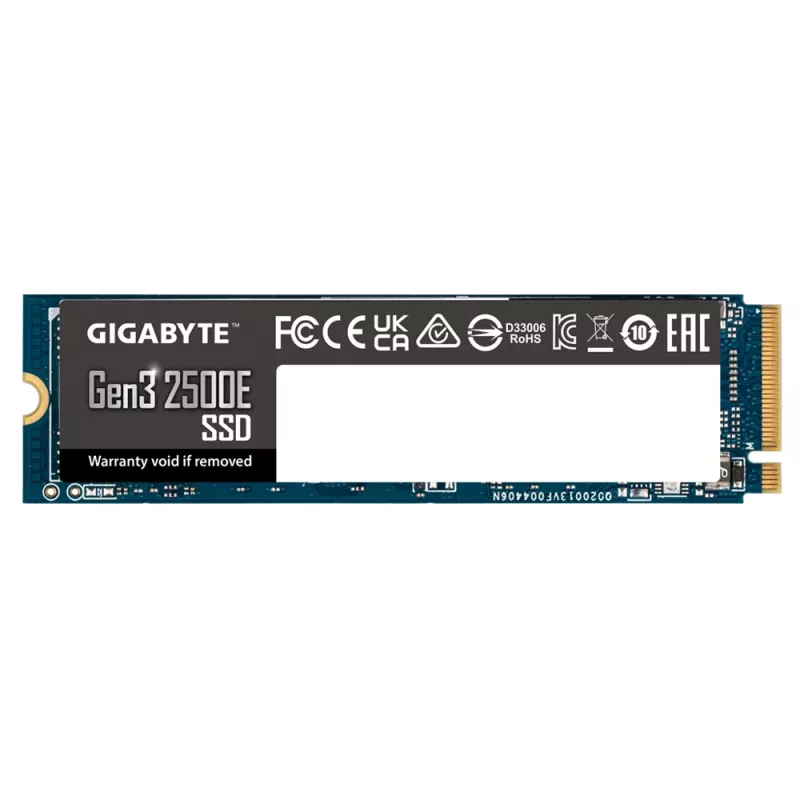

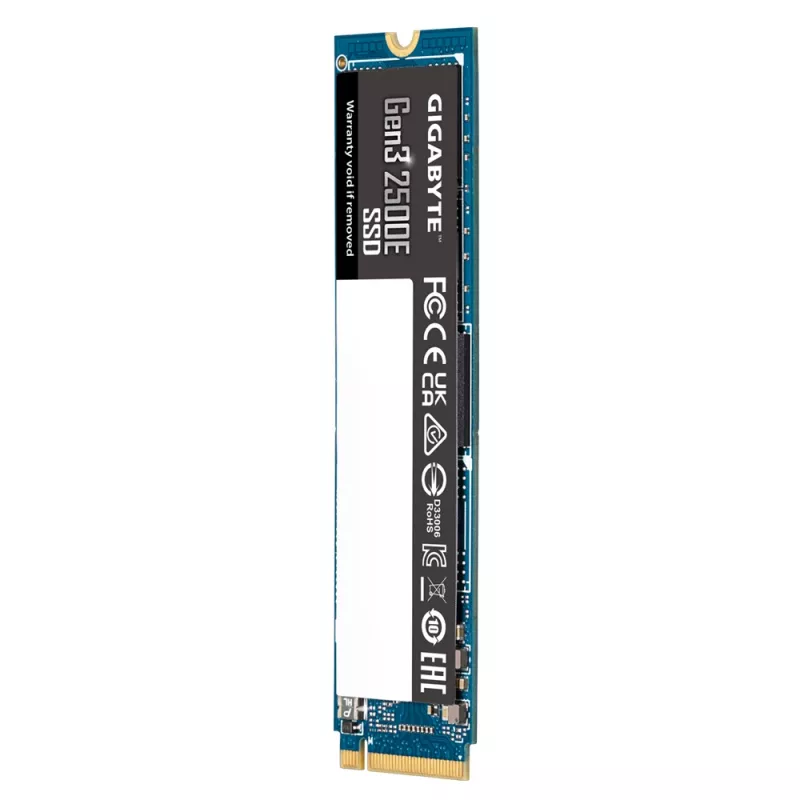

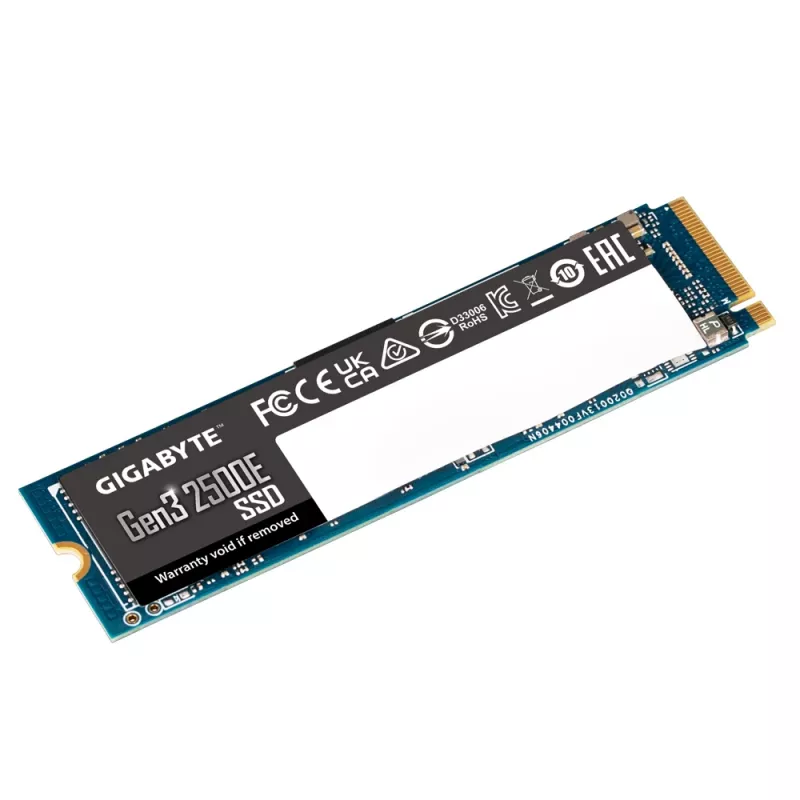

SSD disk GIGABYTE 500GB M.2 PCI Express 3.0 NVMe Gen3 2500E

The GIGABYTE Gen3 2500E SSD (500 GB, M.2, PCIe 3.0 NVMe) is a solid-state drive designed to upgrade desktop and laptop storage. It uses a Phison controller and 3D NAND to deliver sequential read speeds up to 2300 MB/s and sequential write speeds up to 1500 MB/s. The drive supports Host Memory Buffer (HMB) to leverage system DRAM, and includes TRIM, SMART and Over-Provisioning features for stable operation and data integrity.

Advantages

This M.2 NVMe SSD provides significantly faster data transfers than typical 2.5" SATA drives, with reduced operating power compared with some PCIe 3.0 x4 models. HMB support reduces the need for on-board DRAM while maintaining controller performance. The updated SSD Tool Box utility allows monitoring of model and firmware, health and temperature sensors, and offers a Secure Erase function.

Suitable for

• Upgrading desktop or laptop storage to NVMe performance
• Everyday computing tasks, system boot and application loading
• Users seeking a compact M.2 500 GB SSD for general use

Key specifications

• Brand: GIGABYTE
• Model: Gen3 2500E (G325E500G)
• Capacity: 500 GB
• Form factor: M.2
• Interface: PCIe 3.0 NVMe
• Sequential read: up to 2300 MB/s
• Sequential write: up to 1500 MB/s
• Features: Phison controller, 3D NAND, Host Memory Buffer (HMB), TRIM, SMART, Over-Provisioning

How to use

Install the M.2 SSD into an available M.2 PCIe slot on the motherboard following the motherboard manufacturer’s installation instructions. Secure the drive with the mounting screw, then initialize and format the drive in the operating system if required. For optimal performance, enable NVMe support in BIOS/UEFI and install the SSD in an appropriate M.2 slot wired for PCIe lanes.

Recommendations

Use the SSD Tool Box utility to check firmware version and health periodically, run Secure Erase only when necessary, and ensure TRIM is enabled in the operating system to maintain sustained performance.
