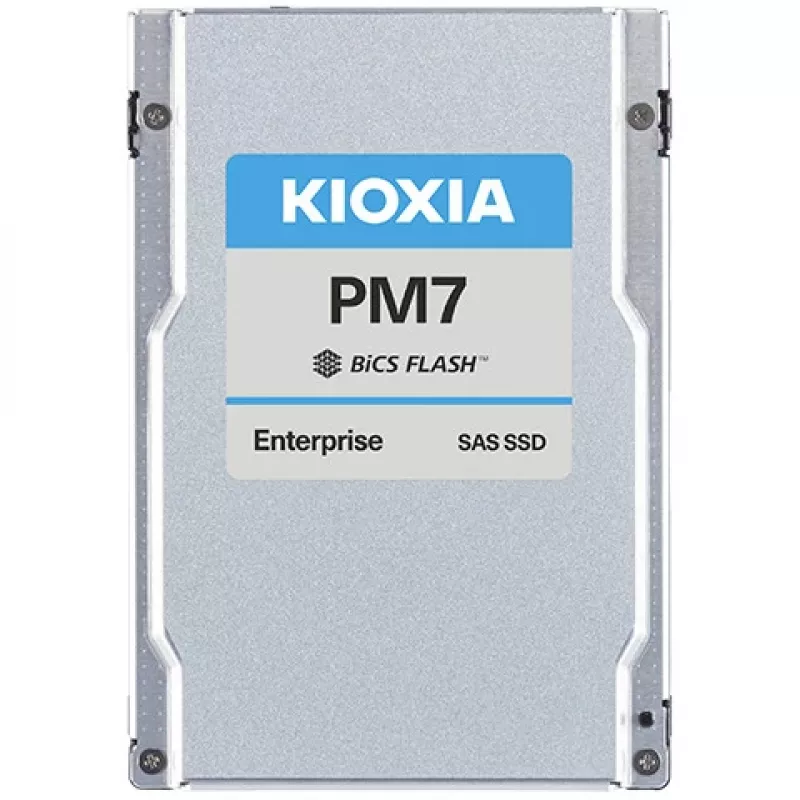

SSD disk Kioxia 12,8 TB 2,5" SAS BiCS FLASH TLC KPM7VVUG12T8

Enterprise SAS SSDSAS SSD 2.5-inch PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational databases, streaming media, data warehousing and web services. Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, the PM7-V delivers balanced performance, reliability, capacity and endurance with up to 12.8 TB in a 2.5" form factor and support for 3 DWPD (Drive Writes Per Day).

Advantages

The Kioxia PM7-V combines high capacity and enterprise-grade endurance with BiCS FLASH TLC technology, providing fast sequential read speeds up to 4200 MB/s and sequential write speeds up to 4100 MB/s. Its 24G SAS interface (22.5 Gbit/s effective) and 2.5" 7mm form factor make it compatible with server and workstation environments that require reliable, high-throughput storage.

Suitable for

• Mixed-use workloads (databases, virtualisation)
• Read-intensive services such as web hosting and content delivery
• Data warehousing and analytics
• Streaming media and high-throughput applications

Key specifications

• Brand: Kioxia
• Model / MPN: KPM7VVUG12T8
• Capacity: 12.8 TB (12800 GB)
• Form factor: 2.5"
• Interface: 24G SAS (effective 22.5 Gbit/s)
• Flash: 112-layer BiCS FLASH™ TLC (3D)
• Endurance: 3 DWPD
• Sequential read speed: up to 4200 MB/s
• Sequential write speed: up to 4100 MB/s
• Weight: 0.15 kg
• EAN: 8592978517526

How to use

Install the 2.5" Kioxia PM7-V into a compatible SAS drive bay or tray in your server or workstation following the hardware vendor's installation instructions. Configure the drive in the operating system or RAID controller as required for your workload (single-disk, RAID, or as part of a storage pool). Ensure firmware is up to date and monitor SMART data and endurance metrics to plan maintenance and replacements.

Recommendations

Use the PM7-V for mixed-use and read-intensive enterprise applications; balance capacity and endurance by selecting appropriate RAID levels and monitoring write amplification. For best results, operate within recommended temperature ranges and keep firmware current.
