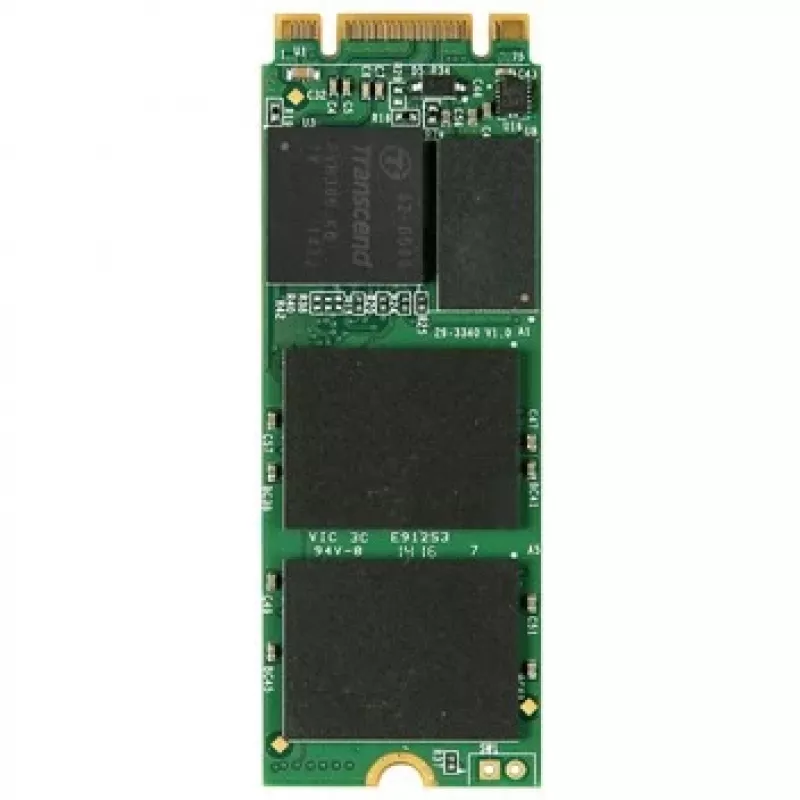

SSD disk Transcend 256 GB M.2 560 MB/s 6 Gbit/s TS256GMTS600

Transcend MTS600 M.2 SSD (256 GB) uses the SATA III 6Gb/s interface in a compact 60mm M.2 form factor, providing a balance of high transfer speeds and small size for thin notebooks, Ultrabooks and tablets. With a Silicon Motion controller, DDR3 DRAM cache and sequential transfer rates up to 560 MB/s read and 310 MB/s write, the drive is designed to accelerate everyday computing and multimedia tasks while fitting into space-constrained devices.

Advantages

The M.2 60mm design saves space in mobile systems while delivering SATA III performance. Support for Power Shield reduces the risk of data loss during sudden power outages, and DevSleep mode allows the SATA interface to shut down completely to conserve battery life. The SSD also supports S.M.A.R.T., TRIM and NCQ for maintenance and performance consistency, and is RoHS compliant.

Suitable for

• Ultrabooks and thin-and-light laptops
• Tablets and other small form factor devices
• System upgrades to improve boot and application load times
• Everyday multimedia playback and light content creation

Key specifications

• Capacity: 256 GB
• Form factor: M.2 (60 mm)
• Interface: SATA III 6 Gbit/s
• Sequential read: up to 560 MB/s
• Sequential write: up to 310 MB/s
• Controller: Silicon Motion
• DRAM cache: DDR3
• Weight: 0.011 kg

How to use

Install the M.2 SSD into a compatible M.2 slot on the motherboard, secure it with the mounting screw and enable the SATA interface in the system BIOS/UEFI if required. Initialize, partition and format the drive in the operating system, then migrate your OS or install software as needed. Ensure firmware and storage drivers are updated for optimal performance.

Recommendations

Use the drive in devices that support M.2 SATA (not NVMe) and follow manufacturer instructions for static discharge protection during installation. Enable TRIM in the operating system and consider regular backups to protect important data.
