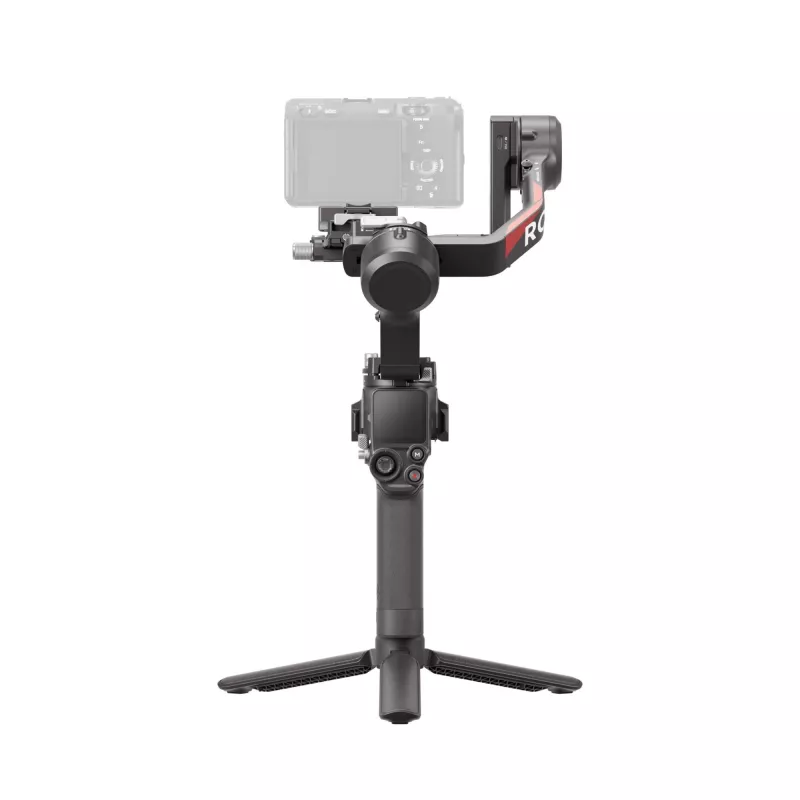

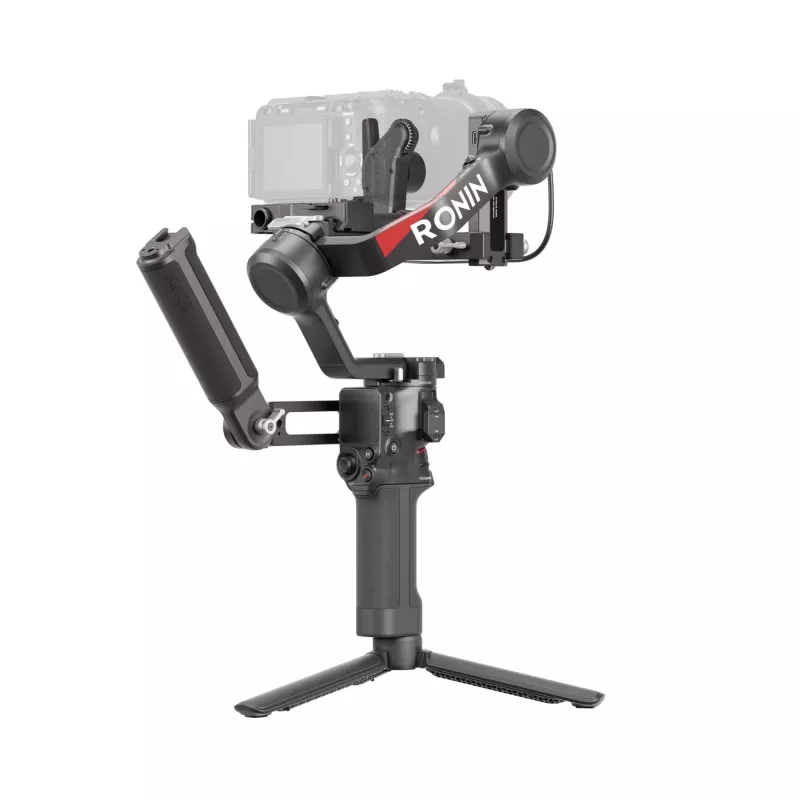

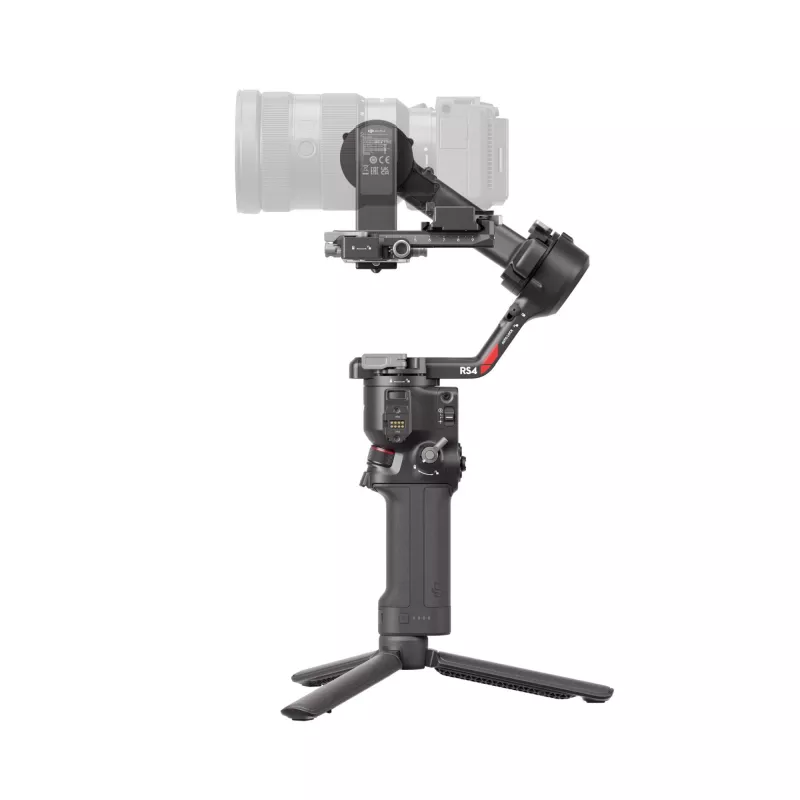

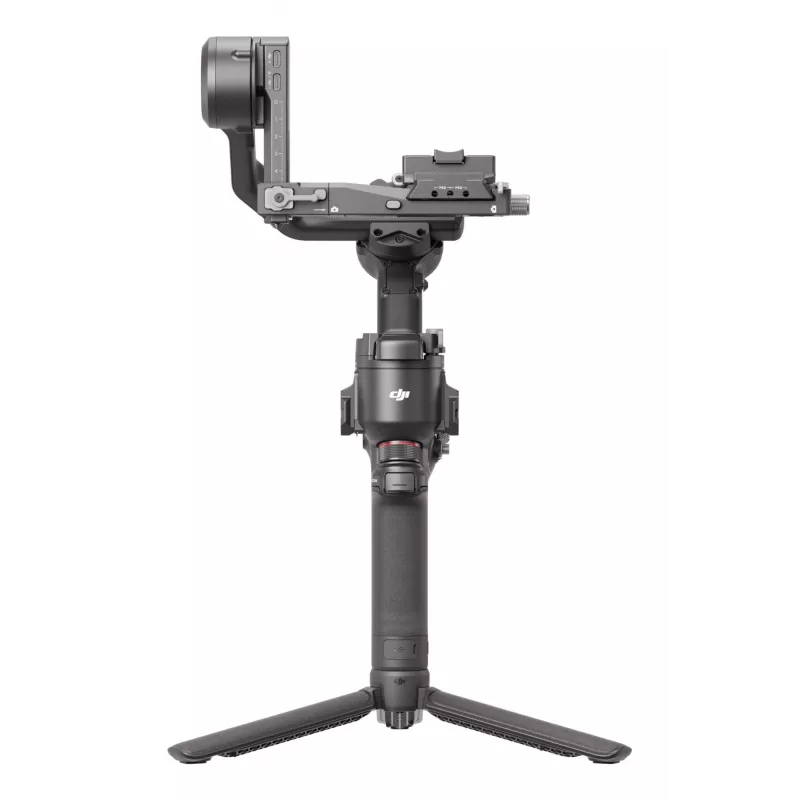

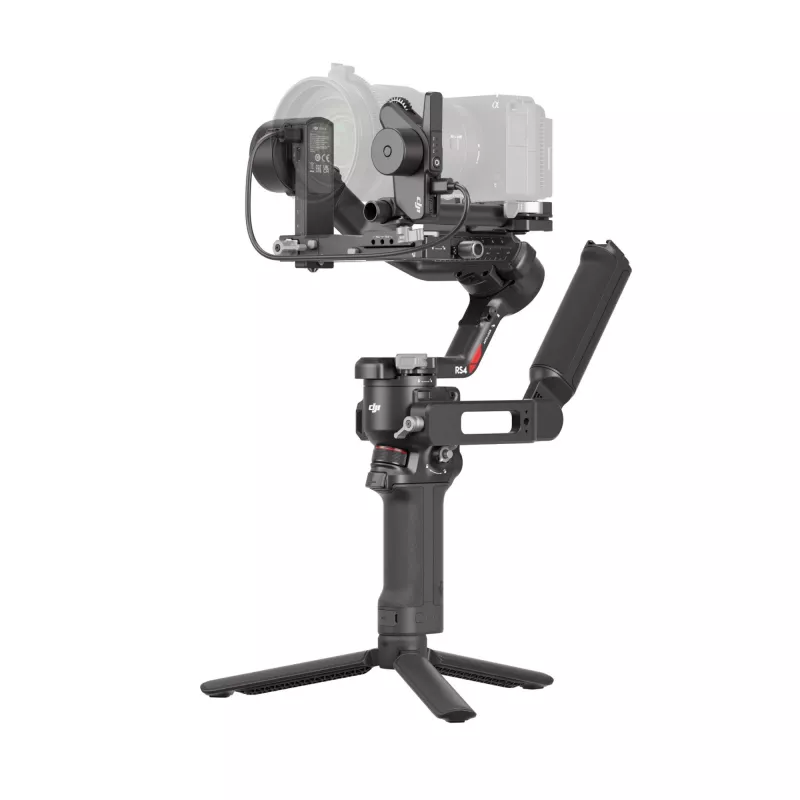

Stabilizátor ručnej kamery DJI RS 4 Combo čierny hliník 12h batéria

The DJI RS 4 gimbal supports 2nd-generation native vertical shooting through an integrated horizontal plate, enabling quick and stable switching to vertical orientation for efficient vertical video production. The stabilizer features a joystick mode switch that lets operators select between gimbal movement control and lens zoom control via the joystick. An RSA communication port expands the control ecosystem by supporting accessories such as the DJI RS Tethered Control Handle and compatible third-party devices. With the optional BG70 High-Capacity Battery Grip, battery runtime can be extended significantly and the grip can supply up to 18 W to cameras and accessories via USB-C. The gimbal includes Teflon™-coated axis arms for reduced friction and finer balancing adjustments, and its extended tilt axis increases compatibility with mainstream mirrorless camera and lens combinations while supporting a 3 kg payload.

Advantages

The integrated horizontal plate eliminates the need for extra mounting accessories when switching to vertical shooting, simplifying setup and saving time. The joystick mode switch provides intuitive control options for either stabilizer movement or native lens zoom, improving operational flexibility. RSA communication expands accessory compatibility to create a broader control ecosystem. The BG70 High-Capacity Battery Grip offers up to approximately 29.5 hours of runtime and USB-C power delivery up to 18 W for extended shoots. Teflon™-coated axis arms and a fine-tuning tilt knob reduce friction and enable precise, millimeter-level balance adjustments. An 8.5 mm extended tilt axis increases clearance for larger camera and lens combinations while maintaining a 3 kg payload capacity.

Key specifications

• Vertical shooting: 2nd-generation native vertical mode with integrated horizontal plate
• Joystick modes: switchable between gimbal control and lens zoom control
• Communication port: RSA port for DJI and third-party accessories
• Battery grip: BG70 High-Capacity Battery Grip extends runtime to approx. 29.5 hours
• USB-C output: up to 18 W power delivery
• Axis arms: Teflon™-coated for reduced friction
• Tilt axis: extended by 8.5 mm for increased clearance
• Payload capacity: 3 kg (6.6 lbs)

How to use

Mount your camera and lenses according to the gimbal balance instructions, then use the integrated horizontal plate to switch between horizontal and native vertical shooting without additional accessories. Choose the joystick mode to control either gimbal movement or lens zoom depending on the shot requirements. Connect compatible accessories via the RSA port when needed. Attach the BG70 High-Capacity Battery Grip to prolong operating time and use the USB-C port to power the camera or accessories up to 18 W. Use the fine-tuning knob on the tilt axis and the Teflon™-coated arms to perform smooth, millimeter-level balancing before powering on the gimbal.

Recommendations

For optimal performance, balance the camera precisely using the tilt fine-tuning knob and take advantage of the RSA port for wired accessory control. When shooting extended sessions, use the BG70 grip to increase runtime and enable USB-C power delivery to reduce the need for separate camera batteries.
