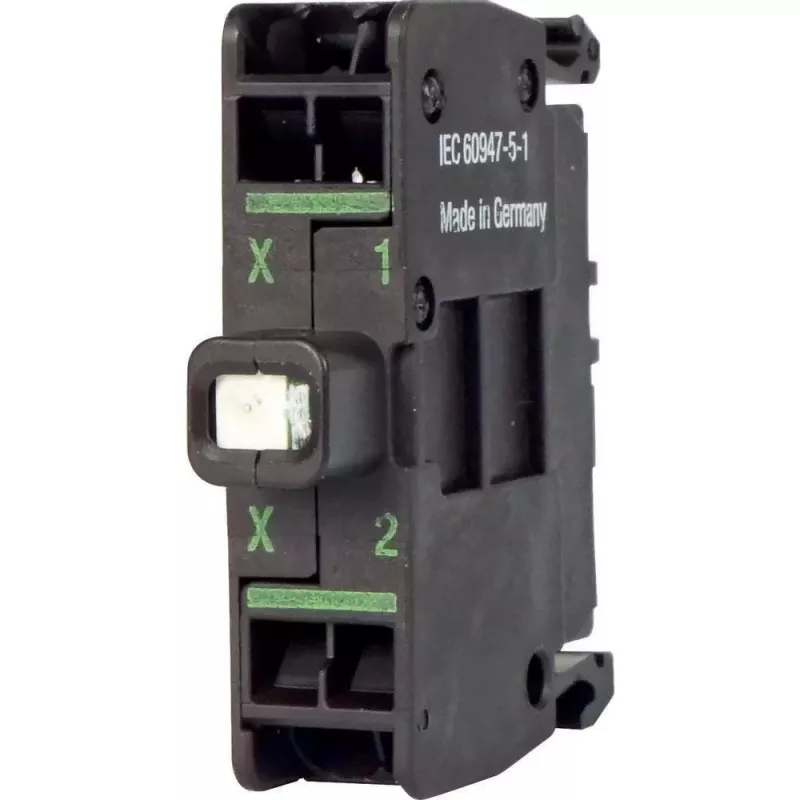

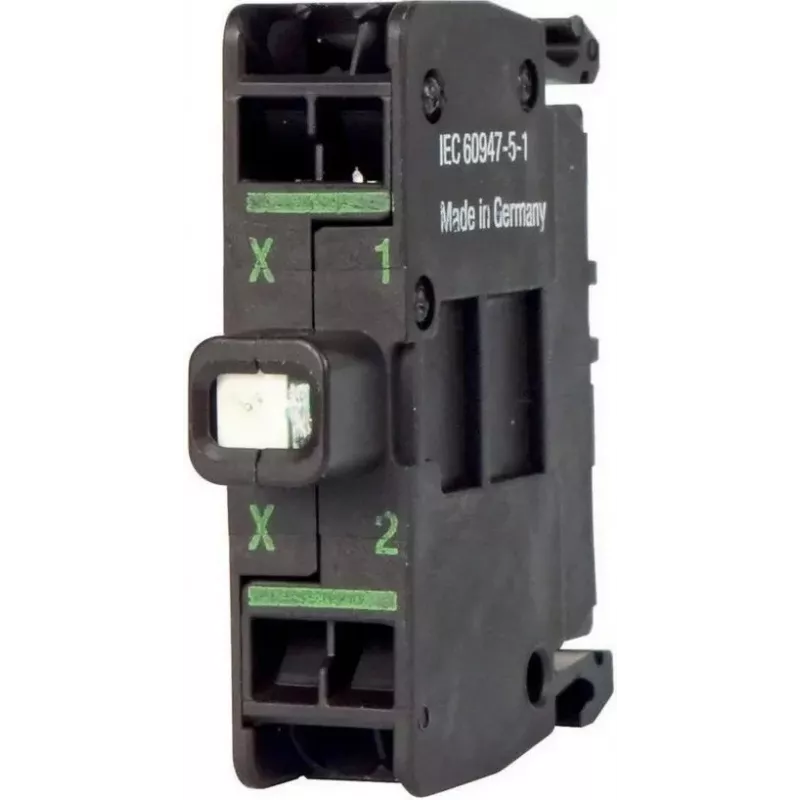

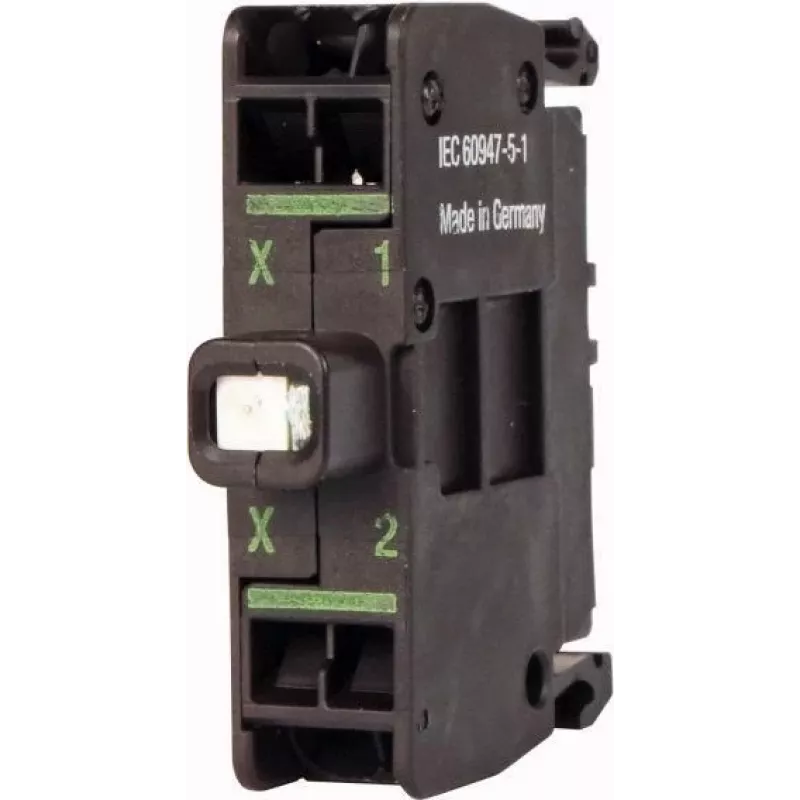

Eaton M22-CLEDC-G LED prvok, zelený, 24 V AC/DC, skrutkové svorky 216574

The Eaton M22-CLEDC-G is a green LED element engineered for the M22 (RMQ-Titan) series, offering a reliable visual status indication in control circuits. Unlike conventional incandescent bulbs, this LED element provides a service life exceeding 100,000 hours and low power consumption of just 0.3 W, reducing maintenance and energy costs. Its base mounting design allows quick integration into M22 pushbuttons and indicator lights, while screw terminals ensure secure wiring. With a supply voltage of 24 V AC/DC and a rated operational current of 15 mA, it is suitable for a wide range of industrial applications.

Highlights

• LED light source with green colour for clear indication
• Compatible with Eaton M22 (RMQ-Titan) series
• Long lifespan: over 100,000 hours
• Low power consumption: 0.3 W max
• Base mounting for easy installation
• Screw terminals for reliable connection

In daily use

Install the M22-CLEDC-G into an M22 indicator or pushbutton base, connect the supply wires to the screw terminals, and apply 24 V AC or DC. The LED illuminates instantly, providing a bright green signal that is visible even in well-lit environments. Its robust thermoplastic housing and wide operating temperature range (-25 to +70 °C) make it suitable for demanding industrial settings.

Full specifications

• Product type: LED element
• Light colour: Green
• Supply voltage: 24 V AC/DC
• Frequency: 50/60 Hz
• Rated operational current: 15 mA
• Power consumption: 0.3 W max
• Connection type: Screw terminals
• Mounting type: Base mounting
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Lifespan (LED): >100,000 hours
• Housing material: Thermoplastic

Final note

The Eaton M22-CLEDC-G combines longevity, efficiency, and ease of installation, making it a dependable choice for industrial signalling applications.
