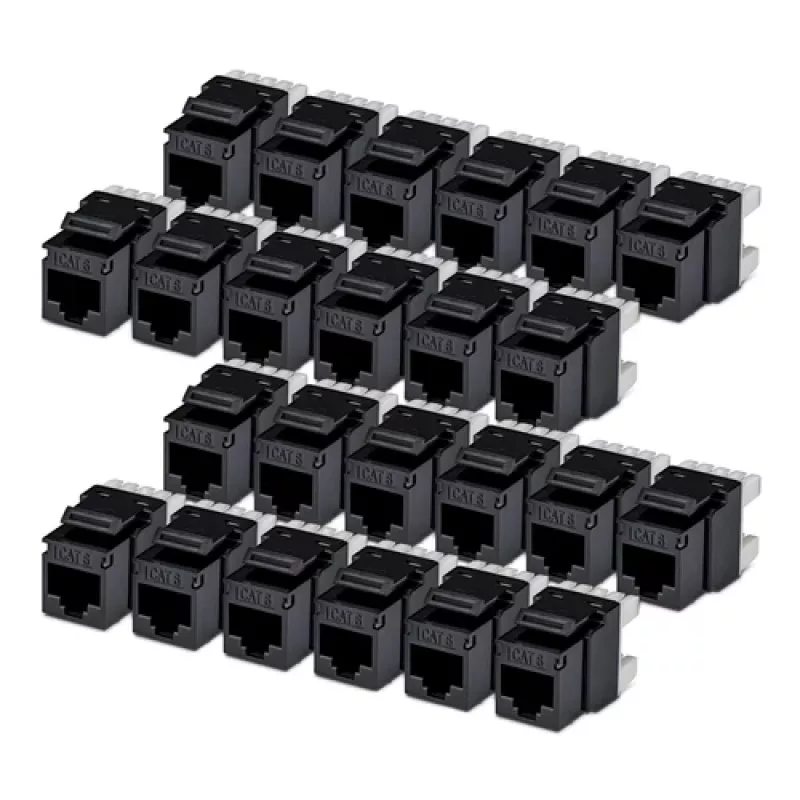

StarTech.com Cat6 Keystone Jack 24 ks balenie RJ45 Ethernet Keystone konektor samec UTP Cat6 nástenný port 180 stupňov 110 Punch Down čierna

The StarTech.com Cat6 Keystone Jack 24-Pack provides a reliable and high-performance solution for your structured cabling needs. Each keystone jack is designed for 10 Gigabit Ethernet (10GBase-T) performance, supporting frequencies up to 250 MHz. The 180-degree 110 punch-down termination ensures secure and easy installation, while the UTP (Unshielded Twisted Pair) design minimizes crosstalk and interference. These jacks are compatible with standard keystone wall plates and patch panels, making them ideal for both residential and commercial network installations.

Advantages

This 24-pack offers exceptional value for large-scale deployments. The 50-micron gold-plated contacts provide superior conductivity and corrosion resistance, ensuring long-term reliability. The color-coded wiring scheme supports both T568A and T568B standards, simplifying termination. The high-impact ABS plastic housing ensures durability, and the compact design allows for high-density installations.

Suitable for

• Network technicians and IT professionals setting up structured cabling systems
• Home and office network upgrades to Cat6 performance
• Data centers requiring reliable 10GBase-T connectivity
• Installations in wall plates or patch panels for organized cable management

Key specifications

• Product Type: Keystone Jack
• Quantity: 24-pack
• Cable Category: Cat6
• Connector Type (Front): RJ45 Female
• Termination Type (Rear): 110 Punch Down
• Termination Angle: 180 Degree
• Shielding: UTP (Unshielded Twisted Pair)
• Color: Black
• Housing Material: High-impact ABS Plastic
• Contact Plating: 50 Micron Gold-plated
• Ethernet Performance: 10 Gigabit Ethernet (10GBase-T)
• Frequency Support: Up to 250 MHz
• Wire Gauge Support: 22-26 AWG Solid or Stranded
• Wiring Scheme: T568A & T568B (Color-coded)
• Compatibility: Standard Keystone Wall Plates, Patch Panels
• Certifications: TIA/EIA 568-C.2, UL Listed, RoHS Compliant
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Humidity: 10-90% RH (Non-condensing)

Recommendations

For optimal performance, use with Cat6 or higher cabling and ensure proper termination following T568A or T568B standards. These keystone jacks are an excellent choice for new installations or upgrades where reliable high-speed networking is required.
