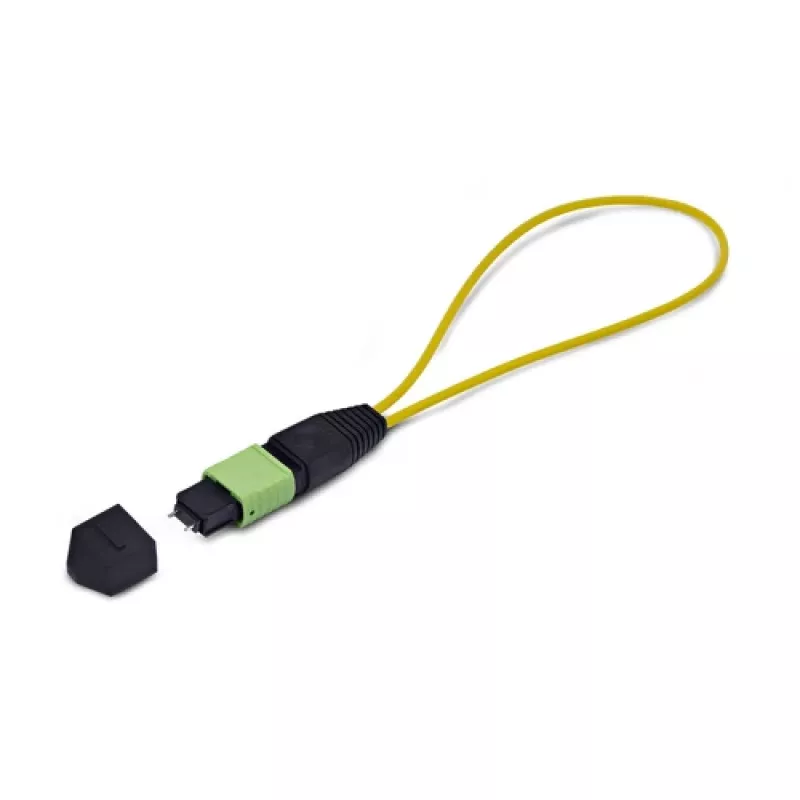

StarTech.com Single Mode MPO Loopback Plug - TAA Compliant - 12 vlákien OS2

The StarTech.com LOOPBACKMTP12OS2SMM is a high-quality single mode MPO loopback plug designed for testing and troubleshooting fiber optic networks. This TAA-compliant device features a male MPO/MTP connector with 12 fibers, supporting 40G/100G/400G Ethernet applications in data centers, SANs, and network testing environments.

Advantages

This loopback plug provides reliable signal loopback for efficient network testing, reducing downtime and ensuring optimal performance. Its durable zirconia ceramic ferrule and high-grade plastic housing ensure long-lasting use with up to 500 mating cycles.

Suitable for

• Network technicians and engineers performing fiber optic testing
• Data centers requiring 40G/100G/400G Ethernet validation
• Storage area networks (SANs) and enterprise network troubleshooting

Key specifications

• Connector Type: MPO/MTP Male
• Fiber Type: Single Mode (OS2)
• Fiber Count: 12 Fibers
• Fiber Core/Cladding: 9/125 µm
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, IEC 61754-7, TIA/EIA 604-5

Recommendations

For optimal performance, pair this loopback plug with StarTech.com MPO patch cables and test equipment. Ensure proper handling to maintain low insertion loss and high return loss.
