Štíhly výsuvný modul pre video wall Vogel's PFW 6880

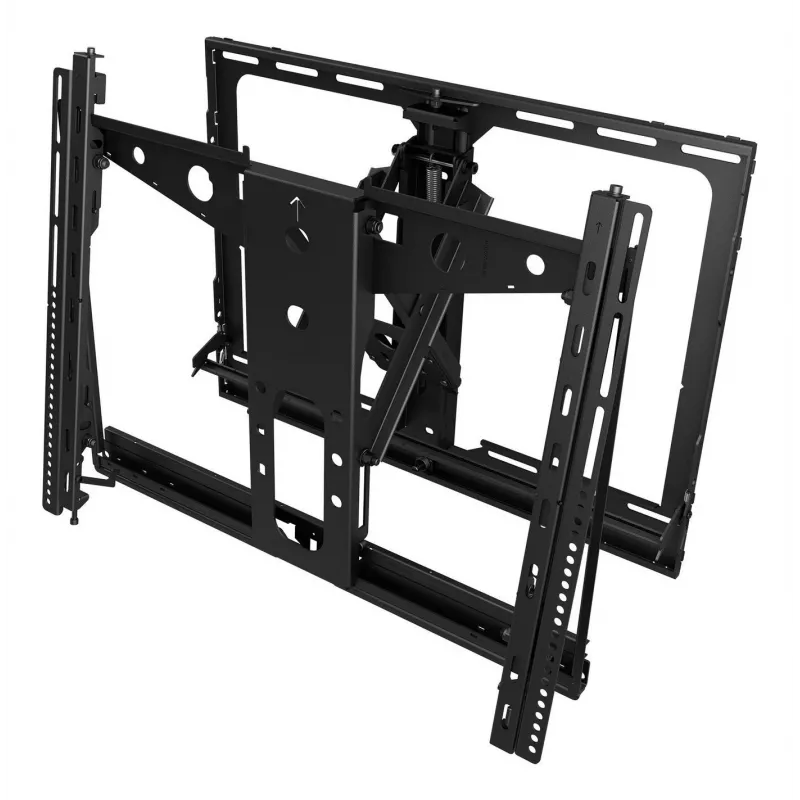

PFW 6880 is a slim video wall pop-out module that keeps the distance between the display and the wall to only 50 mm. The module is designed to provide access to individual screens in a video wall for maintenance and adjustments while maintaining a low-profile installation. It supports common VESA patterns and is built to handle the weight of typical professional displays.

Advantages

The pop-out mechanism uses a spring-loaded push-to-open release that allows the display to be pulled out by gently pushing on the screen. Custom spacers are available on request to reduce installation time for frequently used video wall displays. The slim design minimizes the gap between display and wall without compromising access or load capacity.

Suitable for

• Professional video walls in control rooms and command centres
• Digital signage installations in retail and public spaces
• Corporate meeting rooms and auditoriums with multi-screen setups
• Environments requiring regular access for service or cabling

Key specifications

• Model: Vogel's PFW 6880
• Wall-to-display distance: 50 mm
• Weight capacity: up to 45.5 kg (100 lbs)
• Supported VESA mounting pattern: 200 x 200 mm up to 600 x 400 mm
• MPN: 73202197
• EAN: 8712285329227

How to use

Install the PFW 6880 according to the manufacturer's instructions, aligning the mounting holes with the display's VESA pattern within the supported range. Secure the display to the module and mount the assembly to the video wall structure. To access the rear of a screen, gently push the display to trigger the spring-loaded push-to-open mechanism and pull the display outward for maintenance, cable work or adjustments. After service, push the display back until it engages securely in its flush position.

Recommendations

Use custom spacers where applicable to speed up alignment during installation; ensure the display weight and VESA pattern are within specified limits. For safety, verify wall structure and fixings can support the combined weight of displays and mounting hardware before installation.
