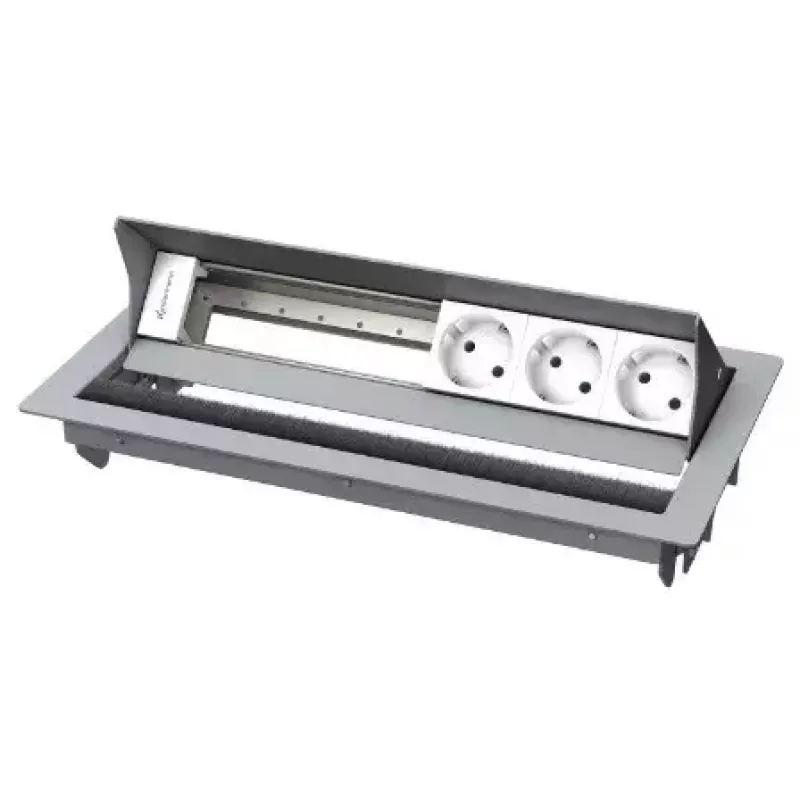

Stolná zásuvková skrinka Typ F Kindermann 7492000083

Desktop casing for 6 insets in powder-coated steel (RAL 9006 silver), premounted with three mains sockets and three empty modules. The Outlet Box Type F Kindermann 7492000083 is designed for flush, level-mounted interfaces and supports individual configuration with Konnect flex 45 adapter plates. Dimensions: 340 mm width, 77 mm height, 190 mm depth; installation depth 65 mm; suitable for desktops up to 40 mm thickness. Mains connection uses a 3-pin GST 18 plug.

Advantages

Quick mounting is enabled by a click mechanism and the design provides a homogeneous, level-mounted appearance. The unit is compatible with media control modules and USB chargers and allows easier mounting into desktops from above. Level-mounted desktop integration is possible, and the steel construction with powder-coated finish offers a consistent visual result.

Suitable for

Key specifications

How to use

Place the outlet box into a pre-cut opening in the desktop and secure it using the built-in click mechanism for quick mounting. Connect the mains supply with the 3-pin GST 18 plug. Configure the three empty modules with Konnect flex 45 adapter plates or other compatible modules such as media control interfaces or USB chargers. For level-mounted integration, ensure the desktop cutout depth accommodates the 65 mm installation depth and that the desktop thickness does not exceed 40 mm.

Recommendations

Install the unit from above into the desktop and verify clear access to the GST 18 mains plug. Use only compatible Konnect flex 45 adapter plates and certified electrical components. Check that the chosen modules fit within the 65 mm installation depth and that cable routing allows safe connection to the mains.
