Stolová prípojná krabica Typ F Kindermann 7430000053

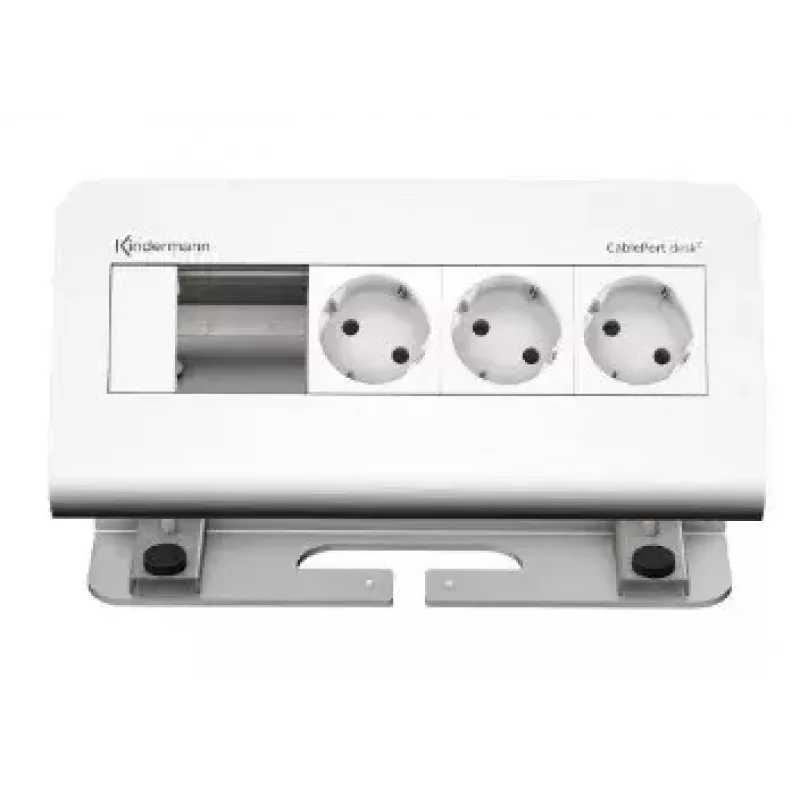

The Kindermann 7430000053 outlet box is a desktop-mounted connection unit made from anodized aluminium with a four-fold casing and a white finish. It includes three fixed mains outlets and space for individual configuration via adapter plates of the Konnect flex 45 click series (fits 2 half or 1 full plate). A 1 m GST18 power cable is supplied. The unit is designed for reliable, compact integration into desks with a slim, flush appearance.

Advantages

Easy click mounting of Konnect flex 45 adapter plates provides a flush surface and quick reconfiguration. Concealed clamps enable secure, non-slip fixation to desktops 10–60 mm thick. The aluminium casing is durable and lightweight, and the unit is compatible with Neets media controls, USB recharger modules and EnOcean components for flexible connectivity.

Suitable for

Key specifications

How to use

Place the outlet box on the desired desk location and secure it using the concealed clamps adjusted to the desktop thickness (10–60 mm). Insert and click-fit the required Konnect flex 45 adapter plates (2 half or 1 full) until they sit flush with the surface. Connect the GST18 power cable to a mains supply. Install compatible modules such as Neets controls or USB recharger modules by click mounting into the adapter plate positions as needed.

Recommendations

For safe installation, switch off mains power before connecting the GST18 cable. Ensure adapter plates and modules used are part of the Konnect flex 45 click series and rated for the intended electrical load. Verify desktop thickness compatibility (10–60 mm) before mounting.
