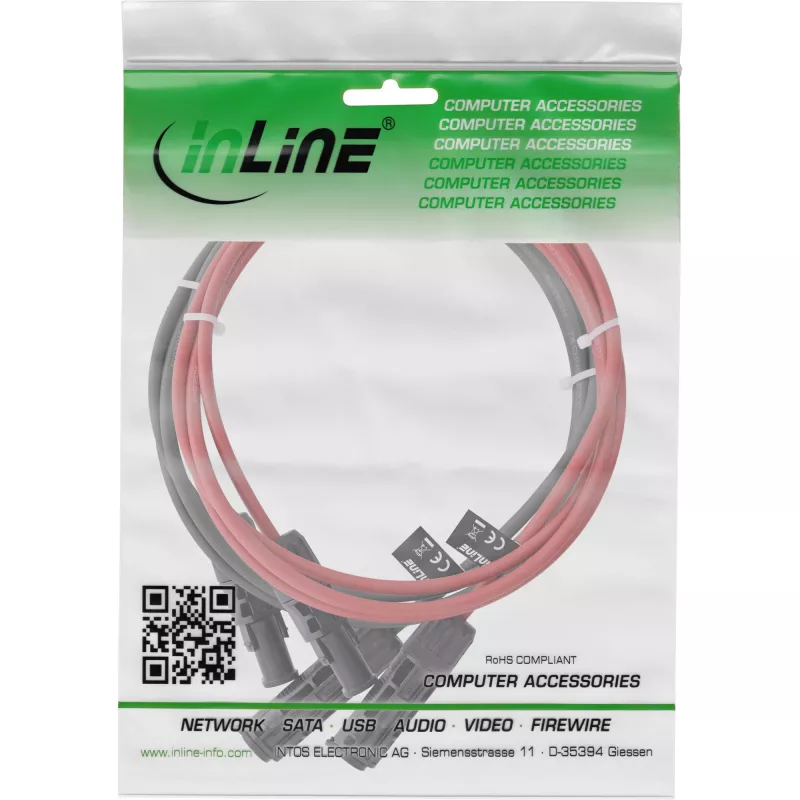

InLine 95601 Predlžovacia sada solárneho kábla so solárnym konektorom, 6mm², čierna/červená, 1 m

The InLine 95601 solar cable extension set is a pre-assembled set of two solar cables (black/red) with solar plugs and sockets, designed for cabling photovoltaic systems. The H1Z2Z2-K cable has a 6 mm² fine-wired tinned copper conductor and is suitable for a nominal voltage of 1.0/1.0 kV AC and a working voltage of 1.5 kV DC in accordance with EN 50618.

Key features

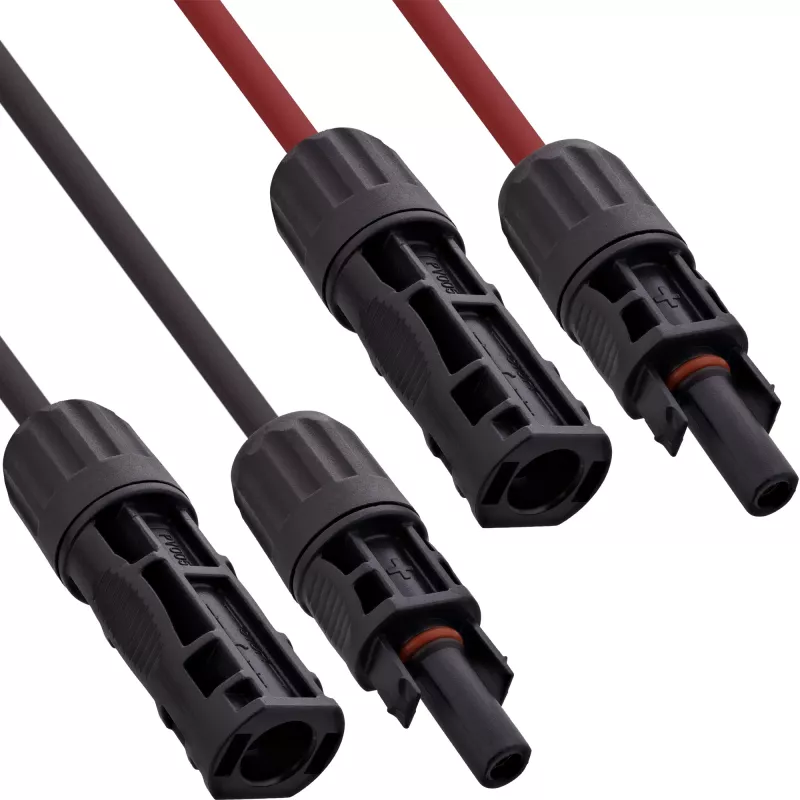

• Pre-assembled solar plugs/sockets (MC4, Standard4, PC4 compatible) for immediate connection of solar panels and inverters, incl. dust caps
• Ozone, weather and UV resistance tested according to EN 60811 / 50618
• Flame resistance complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Halogen-free, low-smoking, cross-linked polyolefin (XLPO) insulation
• Flexible and robust construction for easy installation

Specifications

• Brand: InLine
• MPN: 95601
• Product colour: Black
• Colour: Black/red
• Type: Solar cables
• Length: 1 m
• Conductor cross-section: 6 mm², fine-wired
• Conductor material: copper, tinned
• DC line resistance: 3.3 9 Ohm/km
• Nominal voltage: 1.0/1.0 kV AC
• Working voltage: 1.5 kV DC in accordance with EN 50618
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: Tested according to EN 50618
• Outer diameter: 6.3 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• Ambient temperature: -40°C to +90 °C
• Operation temperature: -40 to +90°C
• Min. bending radius: 26 mm
• Bending radius (static): >26 mm
• Shielding: Unshielded
• Side A: Solar connector (2x)
• Side B: Solar socket (2x)
• Signal: Power
• Article length: 100 cm
• Article width: 2.1 cm
• Article height: 2.1 cm
• Manufacturer No.: 95601
• EAN Barcode: 4043718334674
• Country of origin: Taiwan
