Striebel & John meracie rozvádzačové pole FV19A2R1 s APZ, 9 RE

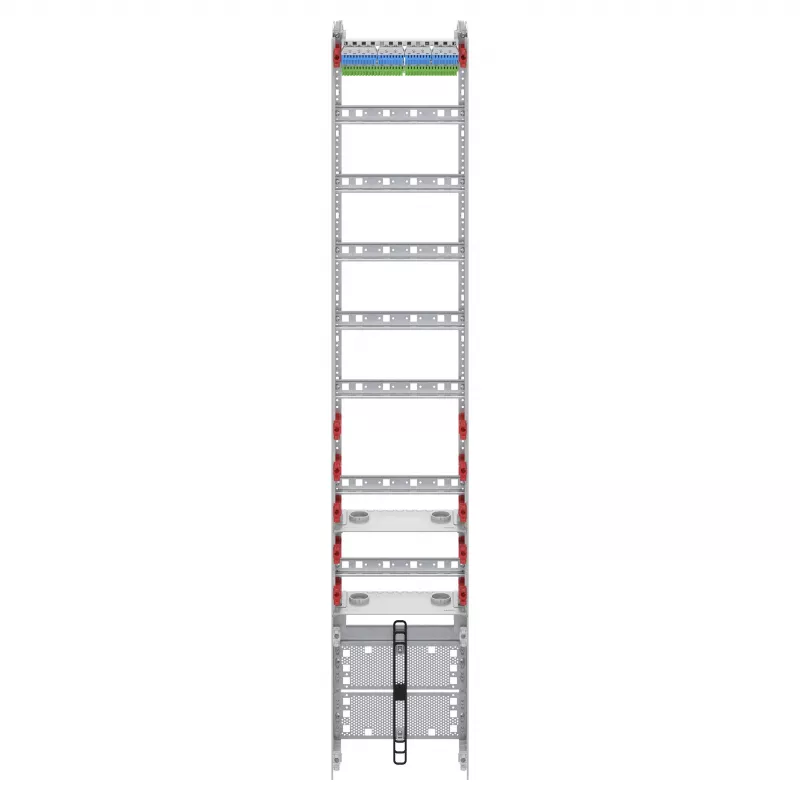

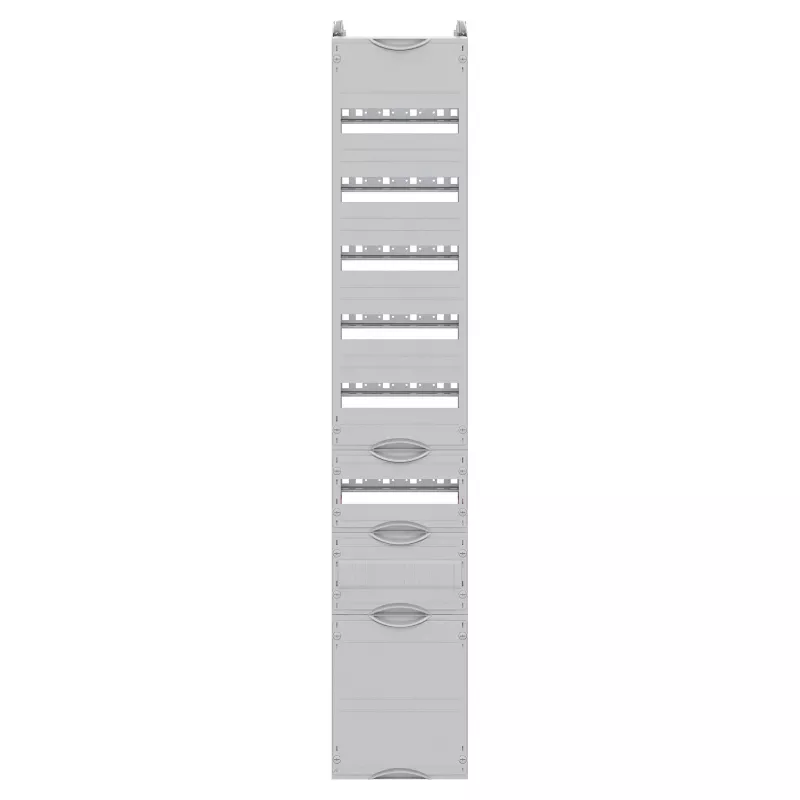

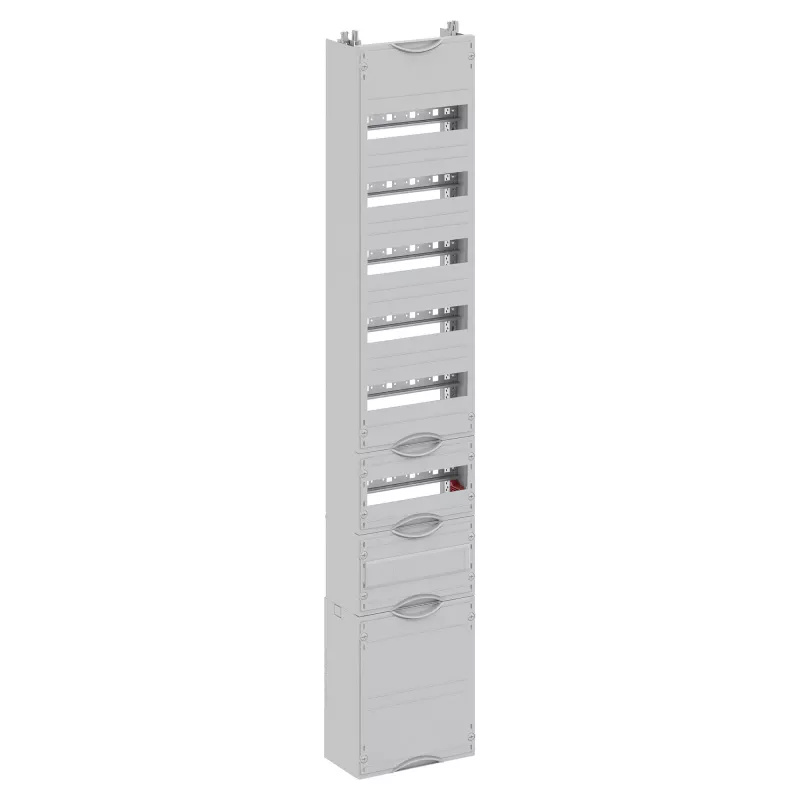

The Striebel & John Meter Distribution Field FV19A2R1 is a pre-assembled, modular distribution field designed for energy metering and distribution applications. It features an integrated APZ (additional application space) and is compatible with ABB A-series and U-series distribution cabinets. This unit provides 9 height units (RE) of space, accommodating one eHZ or conventional meter, and includes a smart meter gateway (SMGW) compartment.

Advantages

Pre-assembled for quick installation; modular design allows flexible configuration; integrated busbar system simplifies wiring; space for smart meter gateway ensures future-proof metering.

Suitable for

• Residential and commercial energy metering
• Integration into ABB distribution cabinets
• Smart meter rollout projects

Key specifications

• Product Type: Meter Distribution Field
• Height Units: 9 RE
• APZ: Integrated
• Meter Places: 1 (for eHZ or conventional meter)
• Material: Galvanized sheet steel
• Protection Class: IP2XC
• Rated Voltage: 230/400 V AC
• Rated Current: Up to 63 A
• Busbar System: Integrated main busbar
• Connection Technology: Screw terminals
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

Ensure compatibility with your specific cabinet model. Professional installation recommended.
