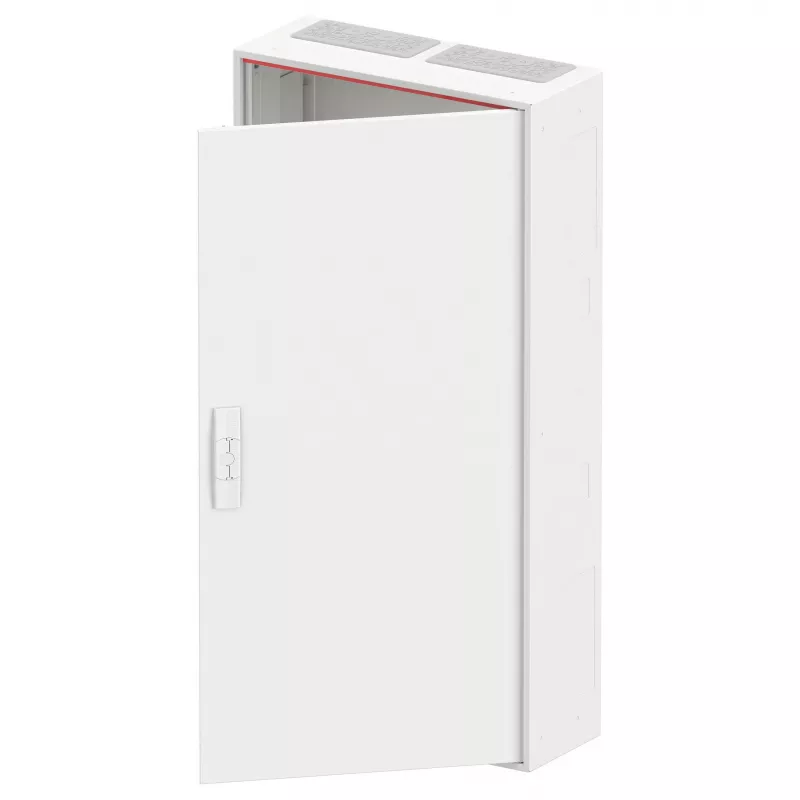

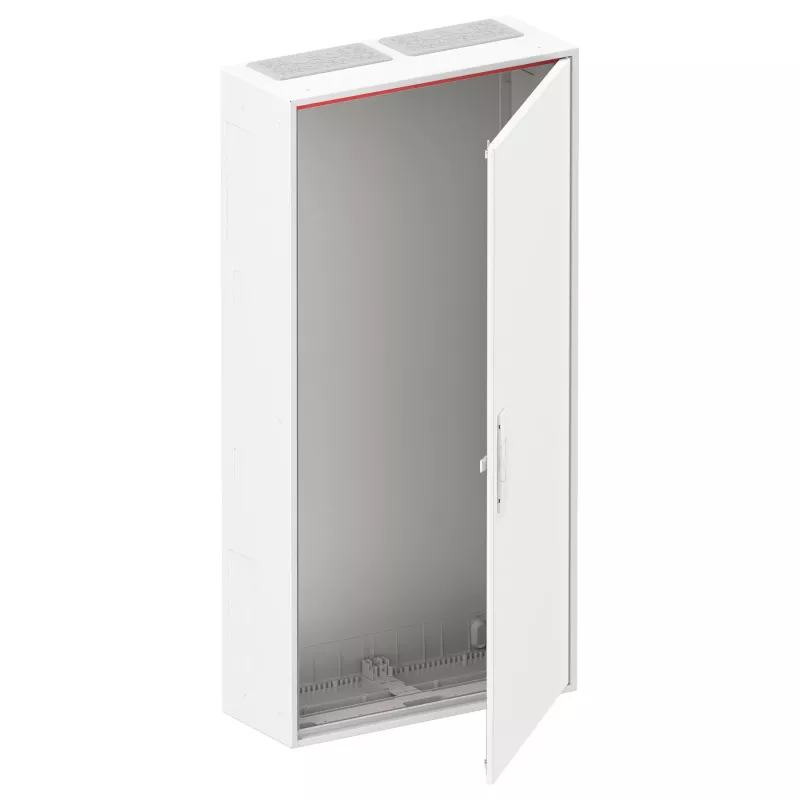

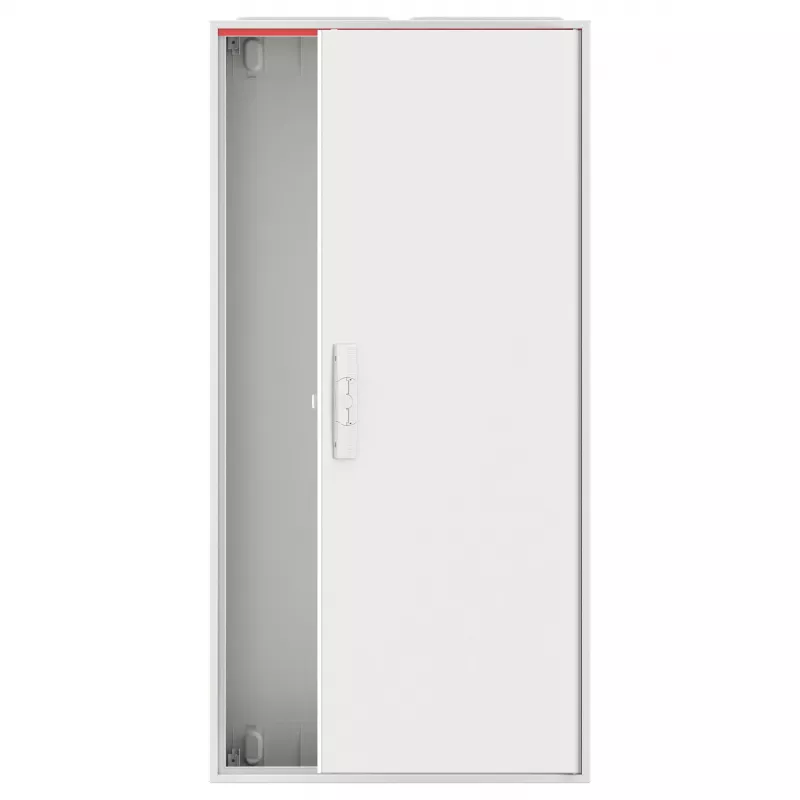

Striebel & John Nástenný rozvádzač Prázdne puzdro 2FB 7-radové A27

The Striebel & John 2CPX052031R9999 is a high-quality, empty wall-mounted distribution cabinet designed for professional electrical installations. With a 2-field, 7-row configuration, this cabinet offers ample space for modular components and is ideal for use in commercial and industrial buildings. Manufactured from durable sheet steel with a pure white (RAL 9010) finish, it combines robustness with a clean aesthetic.

Advantages

This distribution cabinet provides maximum flexibility for custom configurations. Its empty design allows you to install DIN rails and components according to your specific requirements. The IP43 protection class ensures reliable operation in indoor environments, while the standard double-bit lock secures the cabinet against unauthorized access. The surface-mounted design simplifies installation on walls.

Suitable for

• Commercial and industrial electrical distribution systems
• Modular installation of circuit breakers, contactors, and control devices
• Expansion of existing electrical infrastructure

Key specifications

• Product Type: Wall-Mounted Distribution Cabinet
• Configuration: Empty, 2 fields, 7 rows per field
• Total Module Units: 168 (2x7x12)
• Protection Class: IP43
• Material: Sheet steel, door steel
• Colour: Pure white (RAL 9010)
• Max. Rated Current: 250 A
• Max. Rated Voltage: 400 V AC
• Standards: DIN VDE 0603-1, IEC 61439-3
• Mounting: Surface-mounted (wall)
• Cable Entry: Top and bottom with knockouts
• Lock: Standard double-bit lock

Recommendations

For optimal performance, use this cabinet with Striebel & John accessories such as DIN rails, terminal blocks, and cable management systems. Ensure proper grounding and compliance with local electrical codes during installation.
