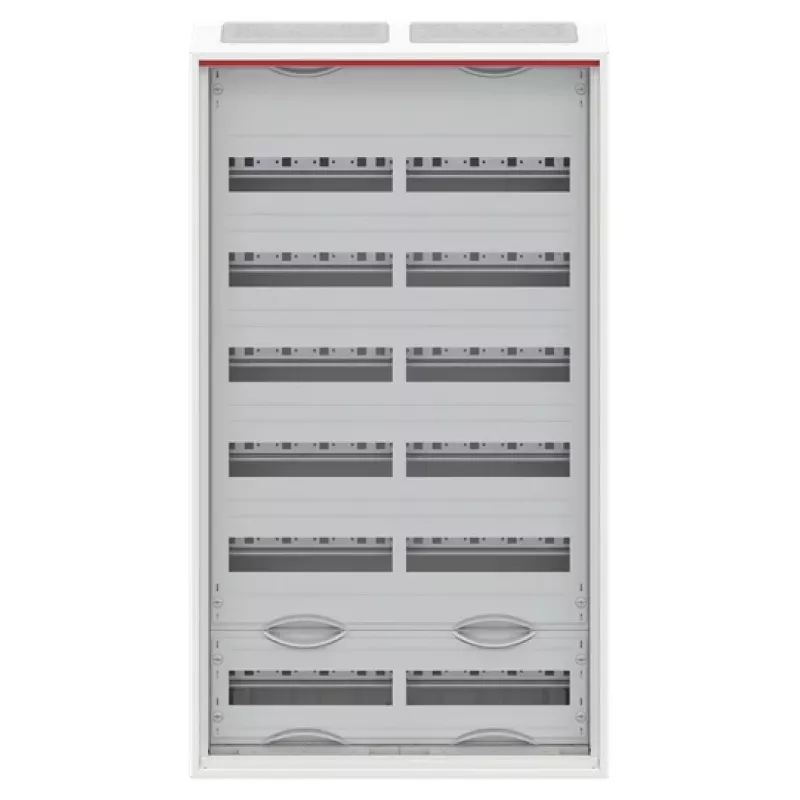

Striebel & John rozvádzač na omietku 2FB 6-radový CA26V

The Striebel & John 2CPX052187R9999 is a high-quality surface-mounted distribution board designed for efficient and safe power distribution in residential and commercial installations. With a robust steel sheet enclosure and IP31 protection, it offers reliable performance in indoor environments.

Advantages

This distribution board features a spacious 6-row design with 24 modules per row (2x12 TE), providing a total of 144 module units for flexible circuit configuration. The reversible door hinge allows for left or right opening, and the double-bit lock ensures security. The included plug-in PE/N terminal blocks simplify wiring.

Suitable for

• Residential electrical distribution
• Commercial building power supply
• Industrial control cabinets

Key specifications

• Mounting Type: Surface-mounted
• Number of Rows: 6
• Modules per Row: 24 (2x12 TE)
• Total Module Units: 144
• Protection Class: IP31
• Impact Protection: IK07
• Enclosure Material: Steel sheet
• Door Type: Opaque steel sheet door
• Colour: White (RAL 9016)
• Rated Voltage: 400 V AC
• Rated Current: Up to 125 A
• PE/N Terminal Blocks: Included, plug-in type
• Standards: DIN VDE 0603-1, IEC 61439-3
• Door Hinge: Reversible (right/left)
• Internal Installation Depth: 120 mm
• Lock Type: Double-bit lock

Recommendations

For optimal installation, ensure the mounting surface is flat and secure. Use appropriate cable glands for cable entry. This board is compatible with standard DIN rail components.
