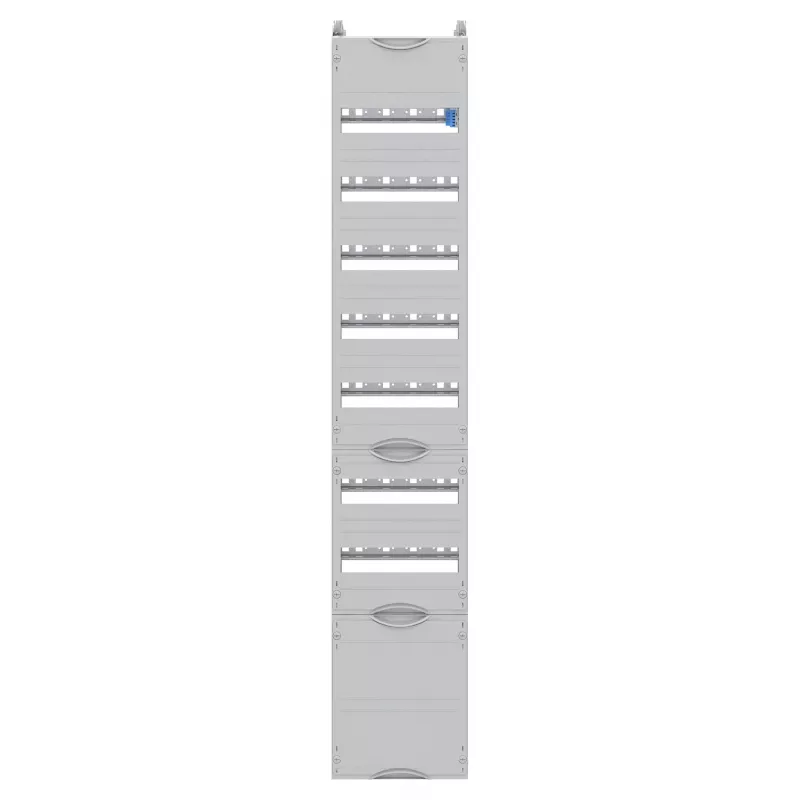

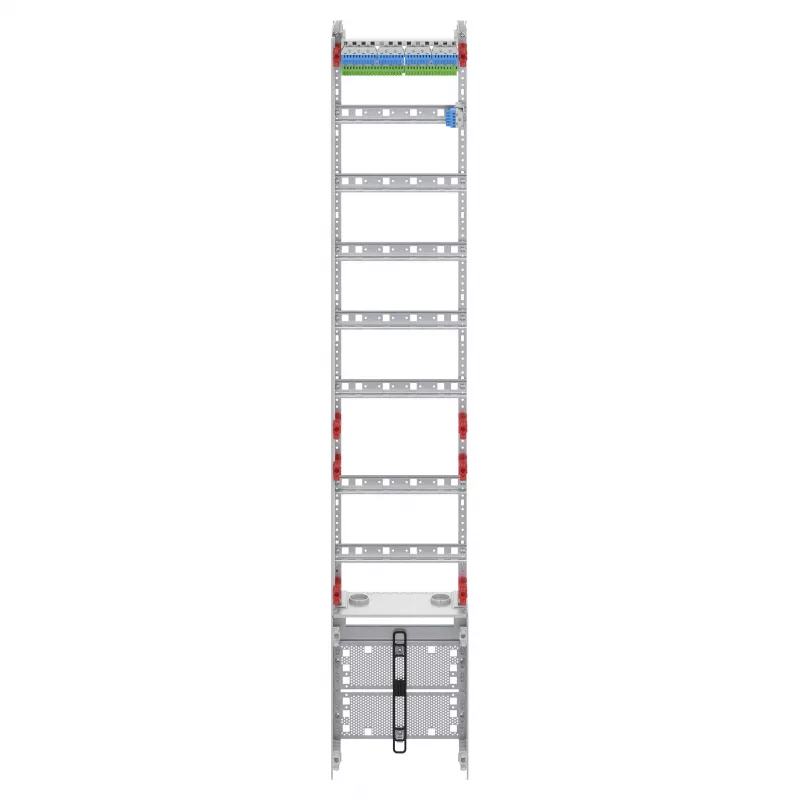

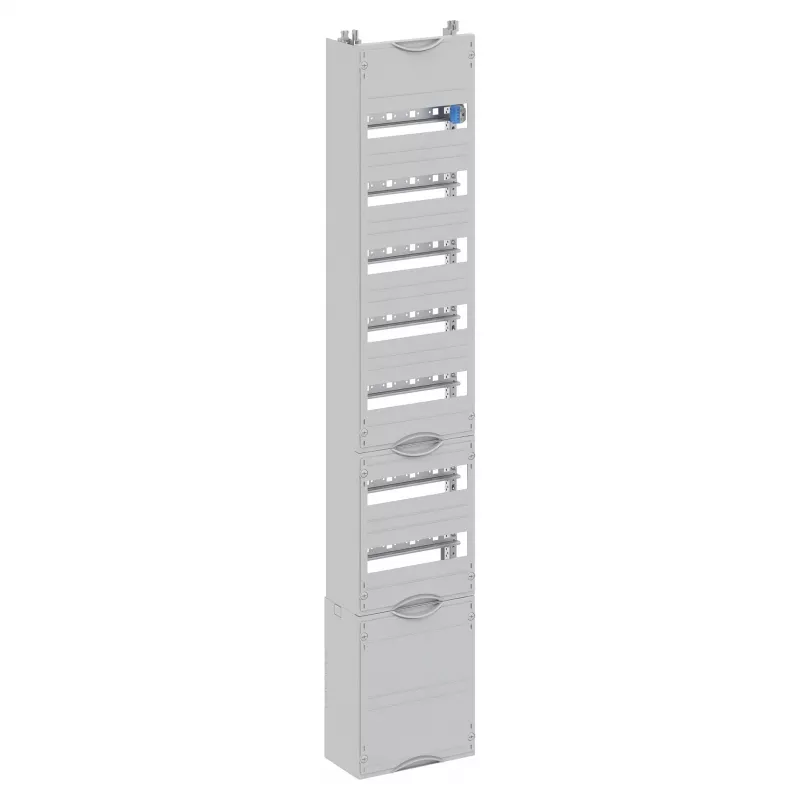

Striebel & John rozvádzačové pole s priestorom APZ 9RE FV19A22 2CPX054008R9999

The Striebel & John Distribution Field with APZ Space (model 2CPX054008R9999) is a high-quality distribution board component designed for meter cabinets and distribution boards. It features an integrated APZ (Anschlussplatz für Zusatzanwendungen) space for additional applications, making it a versatile solution for modern electrical installations.

Advantages

This distribution field offers a compact design with 9 height units (RE) and 108 total module units (TE), providing ample space for circuit breakers and other devices. The 5-pole busbar system supports L1, L2, L3, N, and PE, ensuring comprehensive power distribution. With a rated current of 63 A and voltage of 230/400 V AC, it is suitable for residential and commercial applications.

Suitable for

• Meter cabinets with eHZ smart meters
• Distribution boards requiring APZ space
• Electrical installations needing 5-pole busbar systems

Key specifications

• Product Type: Distribution Field with APZ Space
• Number of Meter Places: 1 (for eHZ Smart Meter)
• Number of Distribution Rows: 9 RE (Height Units)
• Module Units per Row: 12 TE
• Total Module Units: 108 TE
• Busbar System: 5-pole (L1, L2, L3, N, PE)
• Rated Current (In): 63 A
• Rated Voltage (Un): 230/400 V AC
• Frequency: 50 Hz
• Protection Class: IP2XC (when installed in enclosure)
• Material: Sheet Steel, Powder-Coated
• Color: RAL 9010 (Pure White)
• Mounting Type: Internal Cabinet Mounting
• Standards: DIN VDE 0603-1, DIN 43870-1
• Connection Technology: Screw Terminals

Recommendations

For optimal performance, ensure proper installation within a suitable enclosure. This distribution field is ideal for use with Striebel & John meter cabinets and distribution boards.
