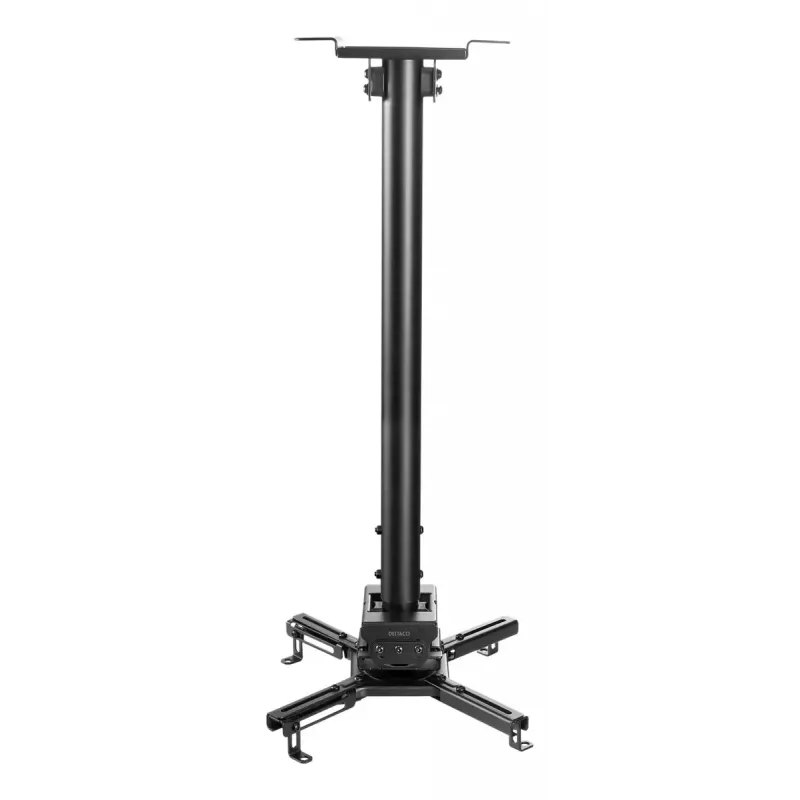

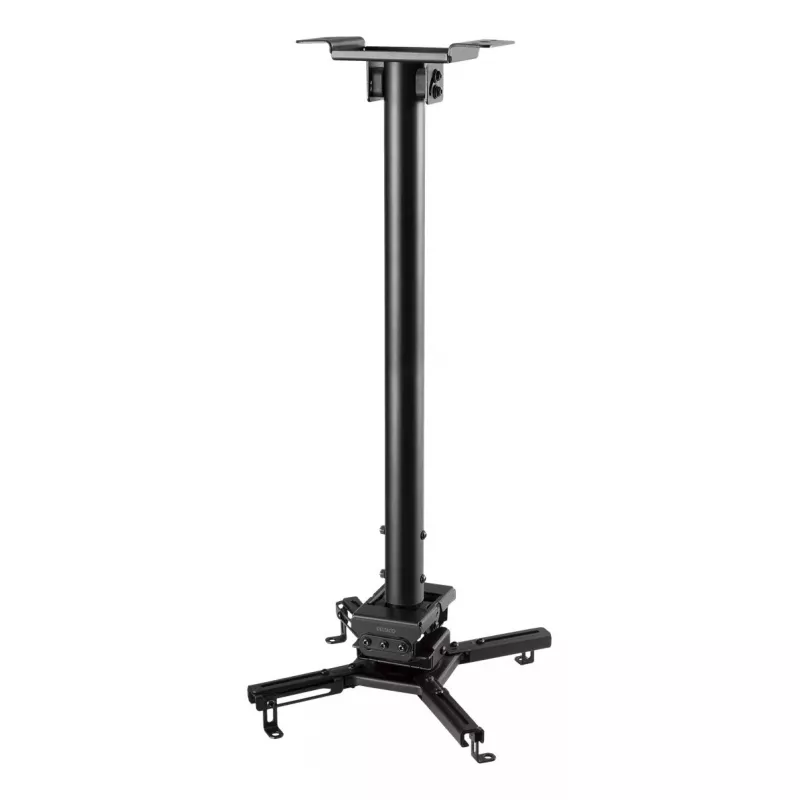

Stropný držiak Deltaco ARM-0412

The Deltaco ARM-0412 ceiling mount is a low-profile mount for installing projectors on flat or inclined ceilings. Made of cold-rolled steel with a black finish, it supports projectors up to 35 kg and fits a variety of installation environments such as classrooms, conference rooms and hotels. The mount measures 470 mm width, 1145 mm height and 470 mm depth and includes integrated cable management for neat cable routing.

Advantages

The ARM-0412 provides robust support thanks to its cold-rolled steel construction and 35 kg load capacity. Its universal design allows tilt, swivel and rotation to achieve optimal image alignment. A quick-release mechanism enables fast attachment and removal for maintenance without the need for re-leveling. Integrated cable management keeps cables organized and out of sight.

Suitable for

• Classrooms and lecture halls
• Conference rooms and meeting spaces
• Hotel lobbies and guest rooms
• Home theaters and multimedia rooms

Key specifications

• Model: Deltaco ARM-0412
• Maximum load capacity: 35 kg
• Material: Cold-rolled steel
• Dimensions (W×H×D): 470 × 1145 × 470 mm
• Colour: Black
• Mounting type: Ceiling

How to use

Secure the ARM-0412 to a suitable flat or inclined ceiling structure following local building codes and using appropriate anchors and screws for the ceiling material. Attach the projector to the mount using the quick-release interface and adjust tilt, swivel and rotation until the projected image is correctly aligned. Use the built-in cable management to route power and signal cables along the mount to prevent strain and maintain a tidy installation.

Recommendations

Verify that the ceiling structure and fasteners can safely support the combined weight of the mount and your projector (up to 35 kg). For inclined ceilings, ensure correct anchor selection and angle compensation. Periodically check fasteners and cable routing and perform maintenance with the projector removed using the quick-release feature.
