Techly predlžovacia stropná montáž na projektor 545-900 mm strieborný ICA-PM 18M

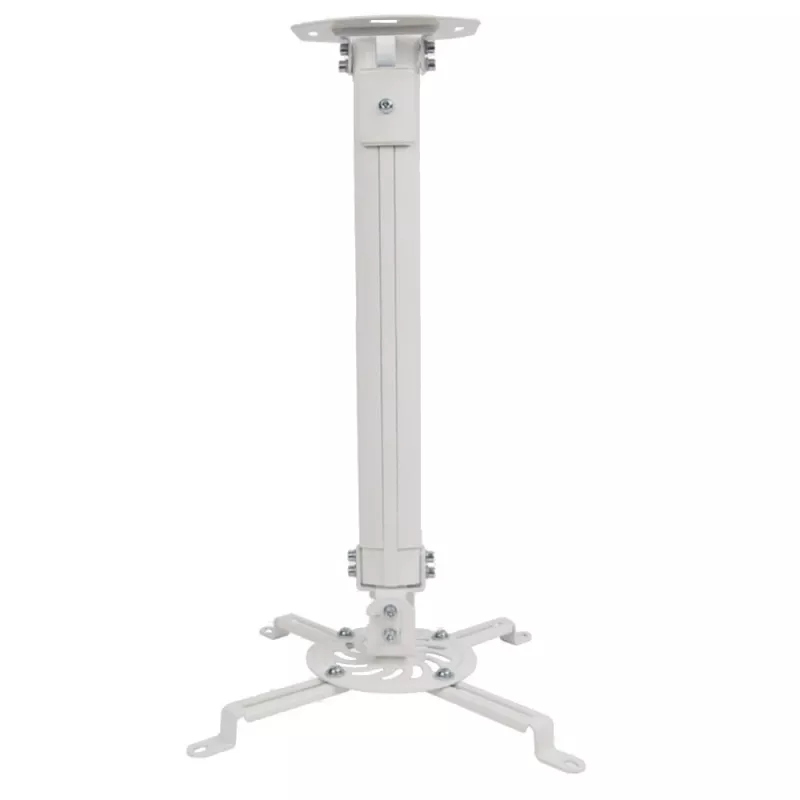

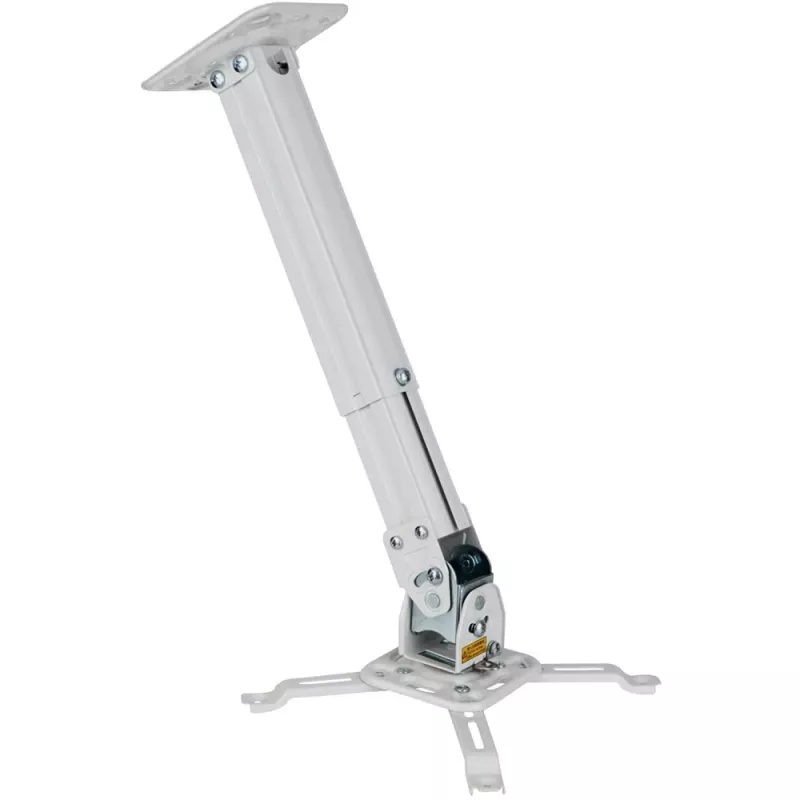

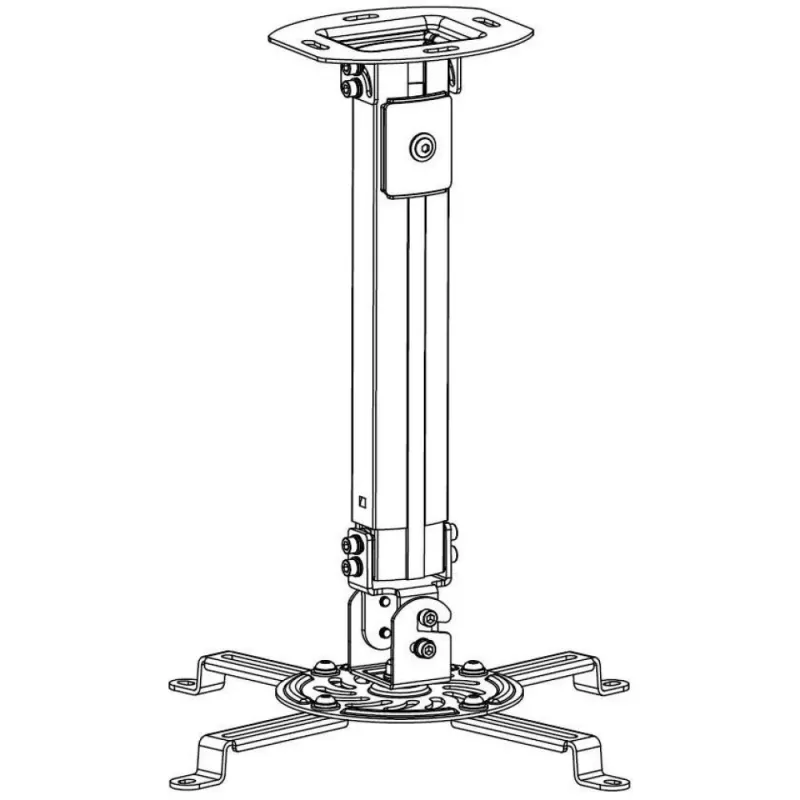

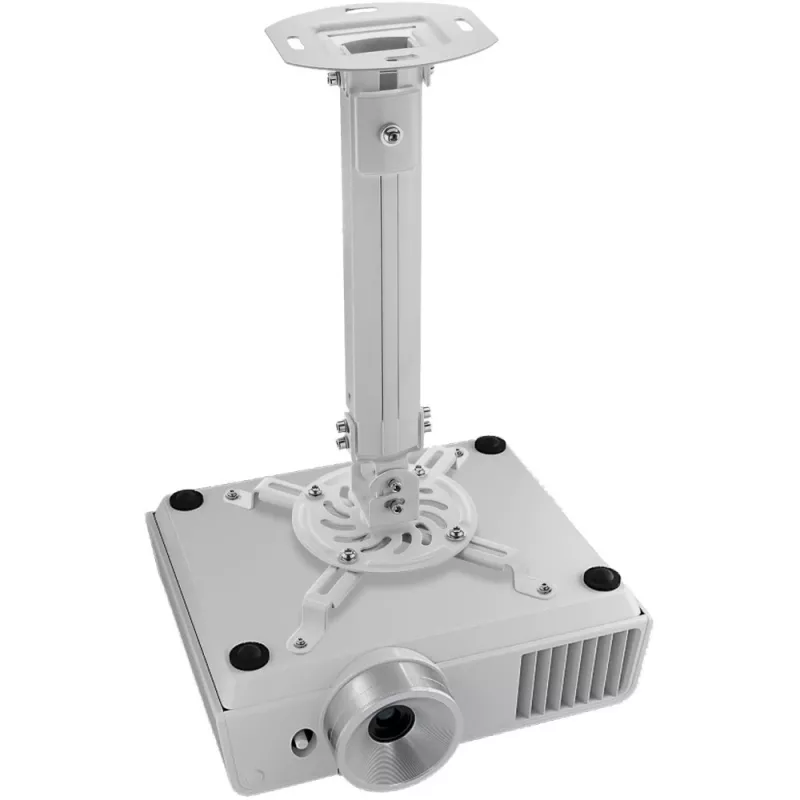

ICA PM-18M is a universal ceiling mount for projectors that supports up to 13.5 kg. The mounting plate can be tilted to accommodate both flat and sloped ceilings or installations near sloped floors. Four adjustable support arms provide multidirectional positioning and fit a wide range of projector mounting-hole patterns. Cables run inside the central aluminium column for a concealed installation, while the quick-detach (QD) mechanism allows fast installation and easy removal for maintenance. The retractable aluminium column adjusts the length to suit different ceiling heights. The silver finish and compact design make it suitable for classrooms, meeting rooms, hotels, bars, restaurants and other indoor spaces.

Advantages

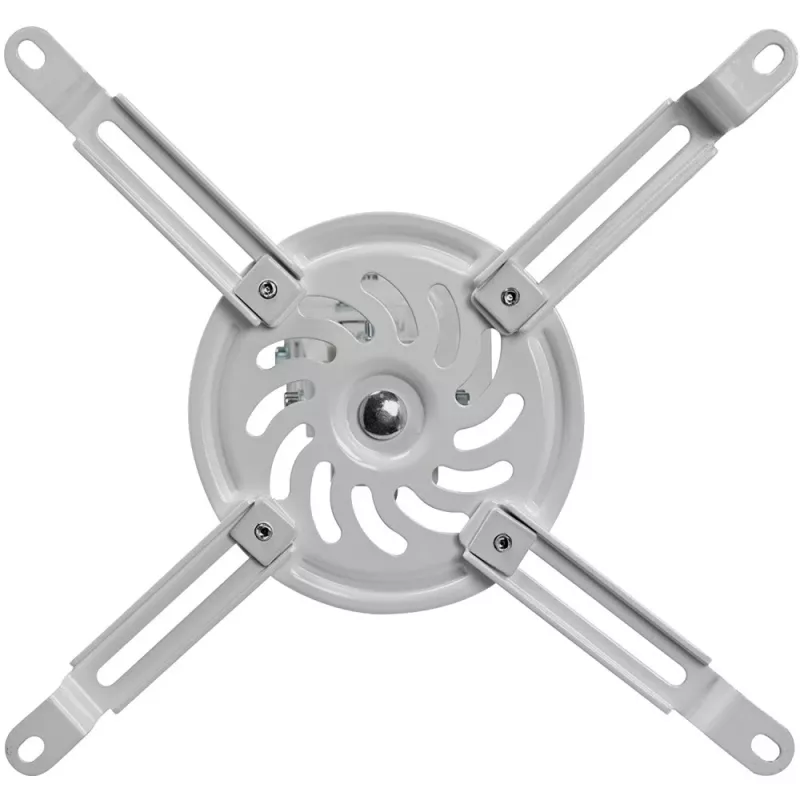

The bracket is universal and compatible with most projectors on the market, offering flexible mounting hole adaptation via four adjustable arms. Internal cable routing keeps cables hidden for a neat appearance. The quick-detach system enables rapid installation and simple access for servicing. The retractable aluminium column provides adjustable extension between 545 mm and 900 mm to match different ceiling heights. The mount supports a maximum projector weight of 13.5 kg and has a lightweight construction (approx. 1.717 kg), simplifying handling during installation.

Suitable for

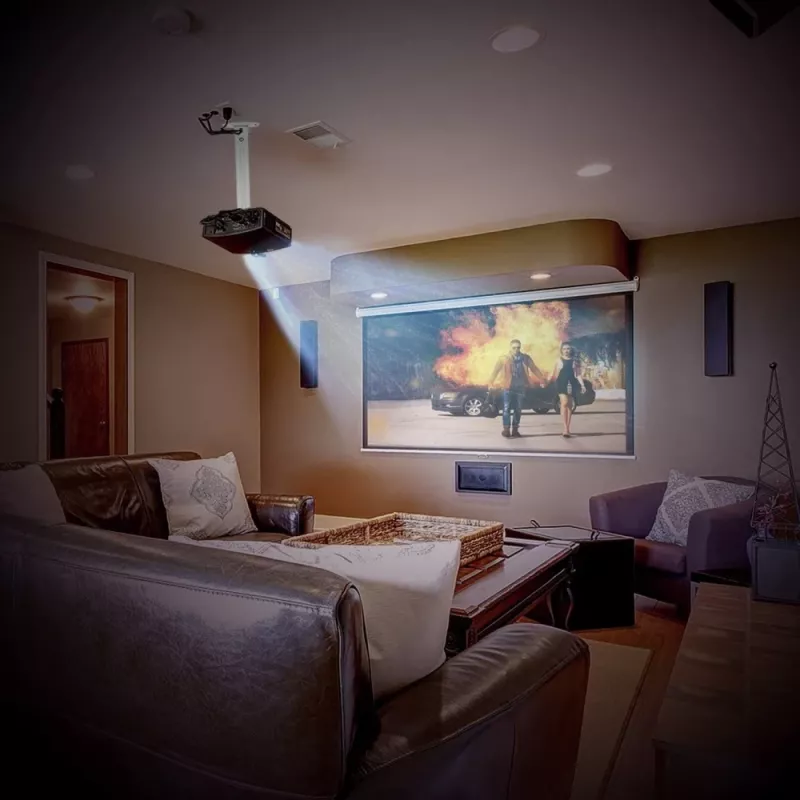

• Home theatres and living rooms
• Classrooms and lecture halls
• Conference and meeting rooms
• Hotels, bars and restaurants
• Training rooms and presentation spaces

Key specifications

• Maximum supported weight: 13.5 kg

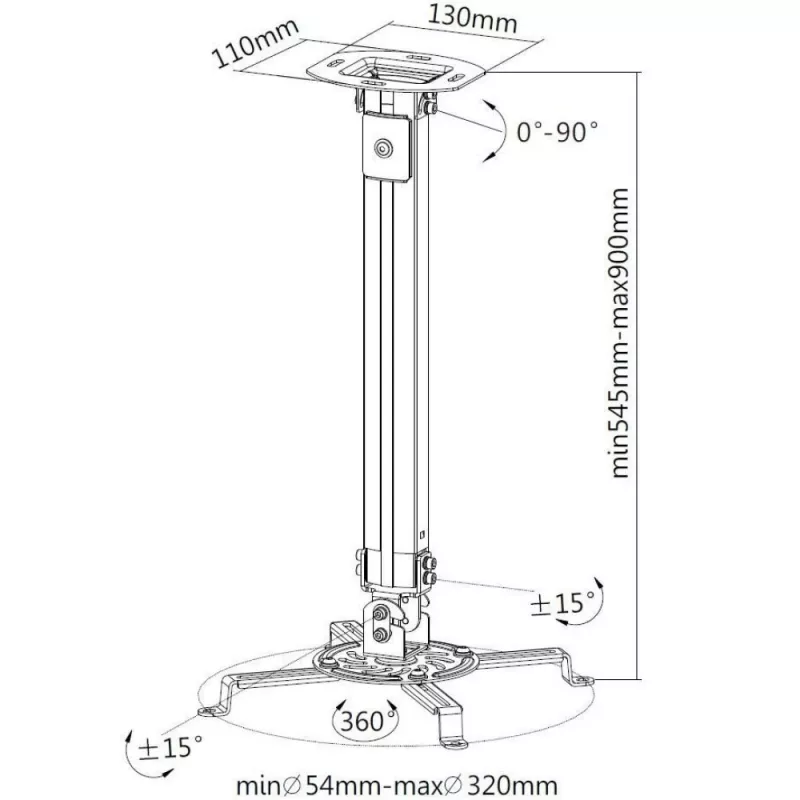

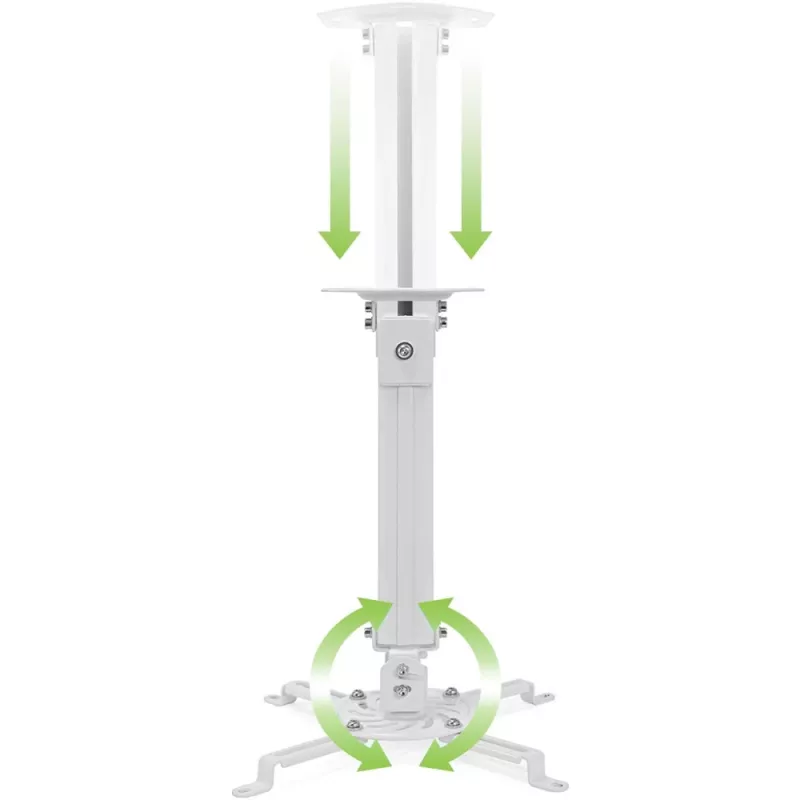

• Adjustable length: 545–900 mm
• Product weight: 1.717 kg
• Mounting type: Ceiling
• Product colour: Silver
• Compatibility: Universal, fits most projector mounting patterns
• Material: Aluminium column with adjustable support arms

How to use

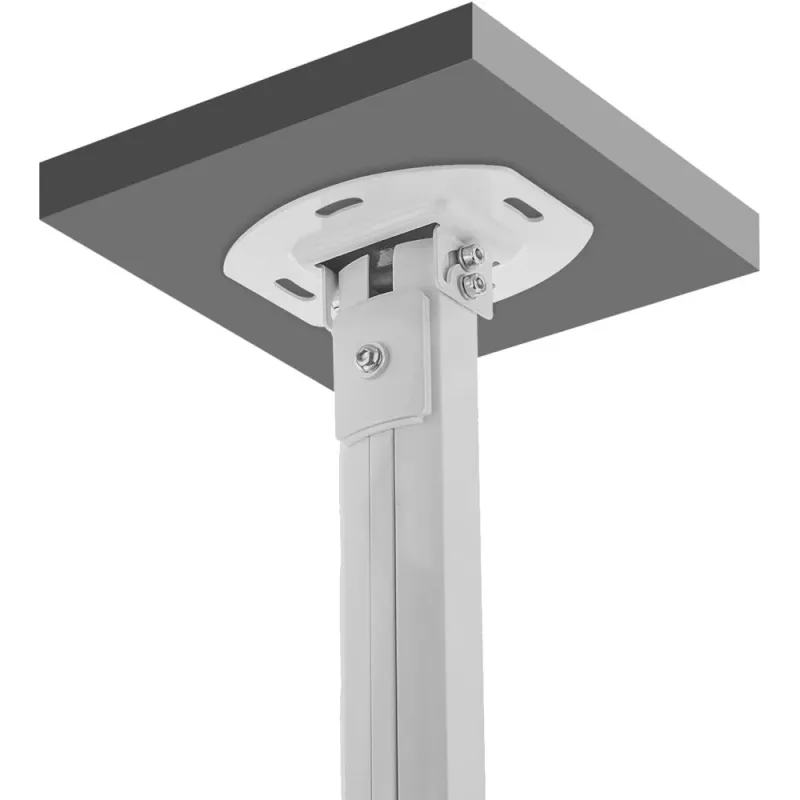

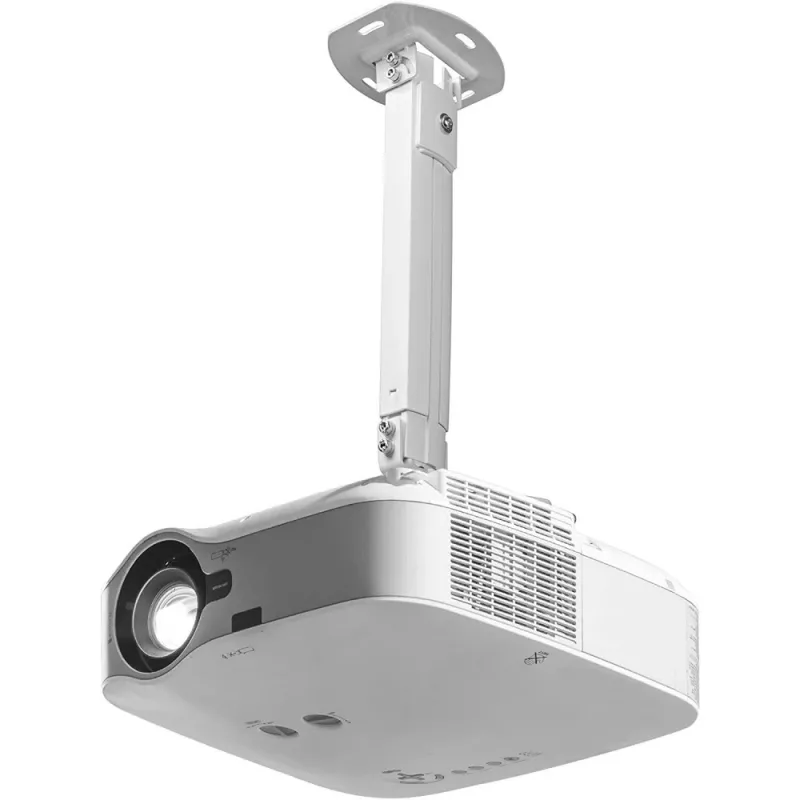

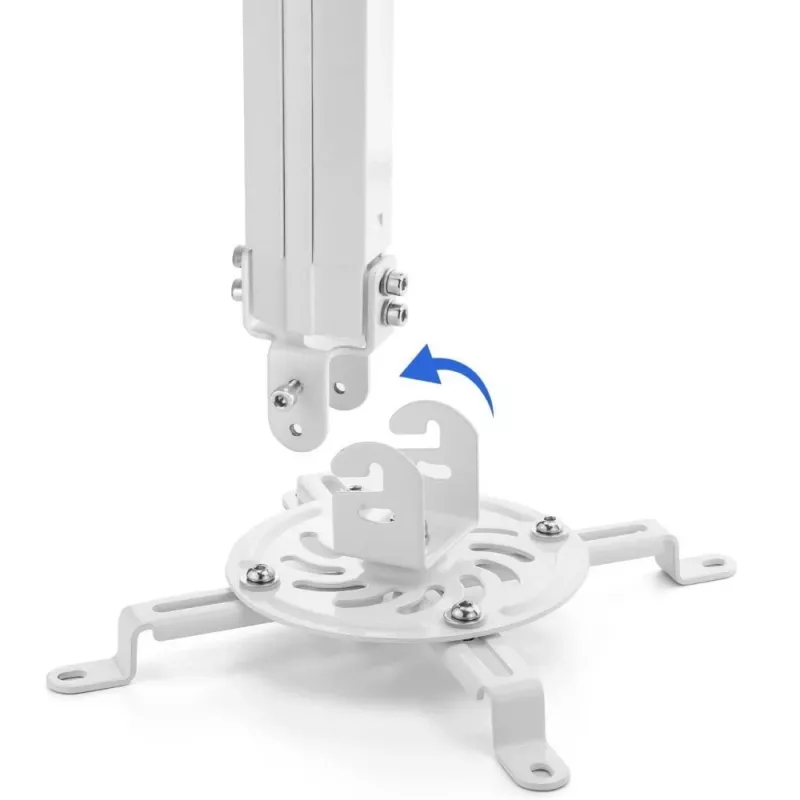

Fix the ceiling plate securely to a suitable structural surface using appropriate anchors and screws (not included). Adjust the four support arms to match your projector's mounting holes and attach the projector to the bracket. Route the power and signal cables through the central column so they remain concealed. Set the column length between 545 mm and 900 mm to achieve the desired projector position and tilt the mounting plate as needed for alignment. Use the quick-detach mechanism when you need to remove the projector for maintenance.

Recommendations

Check the projector's weight and mounting-hole pattern before installation to ensure compatibility with the Techly ICA-PM 18M. Use appropriate ceiling anchors for the ceiling material and follow local building codes. For safety, tighten all fasteners and, if necessary, have installation performed or checked by a qualified installer.
