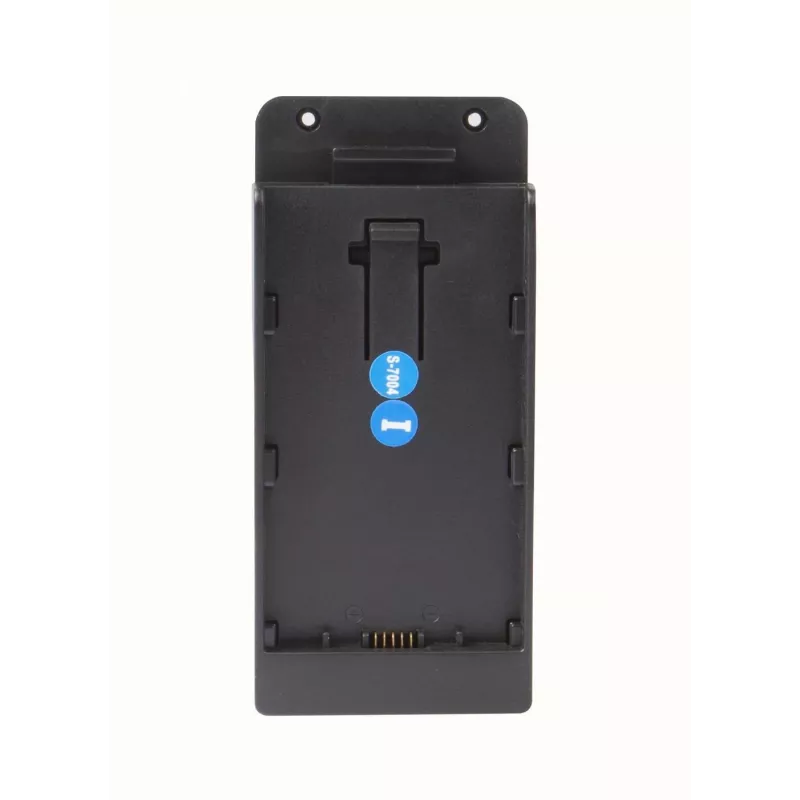

SWIT ELECTRONICS S-7004I adaptér batériovej dosky pre batérie JVC SSL kompatibilný so SWIT S-1093

The SWIT ELECTRONICS S-7004I is a high-quality battery mount adapter plate designed to connect SWIT field monitors to JVC SSL series batteries. This durable ABS plastic plate provides a secure slide-in mounting mechanism, enabling reliable power delivery for professional video production.

Advantages

Seamlessly power your SWIT monitor using widely available JVC SSL batteries. The quick-release design allows fast battery changes, while the integrated D-tap output provides power for accessories. Over-current protection ensures safe operation.

Suitable for

• SWIT S-1073F/H, S-1093F/H, S-1053F/H monitors
• JVC SSL-JVC50, JVC SSL-JVC70 batteries
• Field production, ENG, and broadcast applications

Key specifications

• Compatible Battery Series: JVC SSL-JVC50, JVC SSL-JVC70
• Input Voltage Range: 6.8V - 8.4V DC
• Monitor Output Voltage: 7.2V DC (nominal)
• Max Monitor Output Current: 2A
• Accessory Power Output: 1x D-tap (2-pin)
• D-tap Output Voltage: 7.2V DC (unregulated)
• Max D-tap Output Current: 2A
• Mounting Mechanism: Slide-in / Quick-release
• Construction Material: Durable ABS Plastic
• Color: Black
• Operating Temperature: -20°C to +45°C
• Storage Temperature: -30°C to +50°C
• Protection Features: Over-current protection for monitor output

Recommendations

For optimal performance, use with genuine SWIT monitors and JVC SSL batteries. Ensure the battery is fully charged before use. The D-tap output is unregulated; verify accessory voltage requirements.
