SWIT ELECTRONICS S-7004S V-Mount batériová doska pre SWIT S-1093, S-1071H+, S-11xx, S-12xx

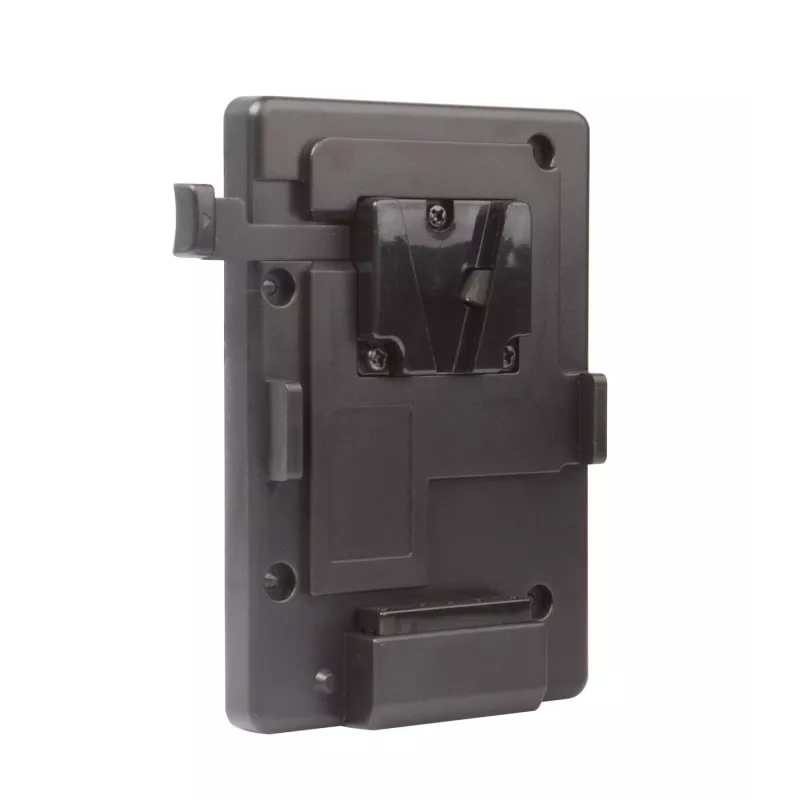

The SWIT ELECTRONICS S-7004S is a professional V-Mount battery plate designed to power SWIT S-1093, S-1071H+, S-11xx, and S-12xx series monitors and other compatible devices. It provides a reliable power interface with multiple output options, ensuring your equipment stays operational in the field.

Advantages

This battery plate offers a secure V-Mount connection, a 4-pin XLR male output for main power, and two D-Tap (P-Tap) auxiliary outputs with a combined 10A current capacity. Its compact design and durable construction make it ideal for professional video production environments.

Suitable for

• SWIT S-1093 monitor
• SWIT S-1071H+ monitor
• SWIT S-11xx series monitors
• SWIT S-12xx series monitors
• Other devices requiring V-Mount battery power with XLR or D-Tap connectivity

Key specifications

• Battery Mount Type: V-Mount
• Main Output Connector: 4-pin XLR Male
• Auxiliary Power Outputs: 2x D-Tap (P-Tap)
• Max D-Tap Output Current: 10A (combined)
• Input Voltage Range: 10-17V DC
• Output Voltage Range: 10-17V DC
• XLR Cable Length: Approx. 60 cm (24 inches)
• Material: High-impact ABS plastic, Metal V-mount interface
• Operating Temperature: -20°C to +45°C
• Protection Features: Over-current protection for D-Tap outputs
• Color: Black

Recommendations

For optimal performance, use with SWIT V-Mount batteries and ensure all connections are secure. The S-7004S is an essential accessory for expanding power options in your video rig.
