SWIT ELECTRONICS S-7004U batériová doska - čierna - kompatibilná so SWIT S-8U63, Sony BP-U60, BP-U30 - 100 mm x 47 mm x 19 mm

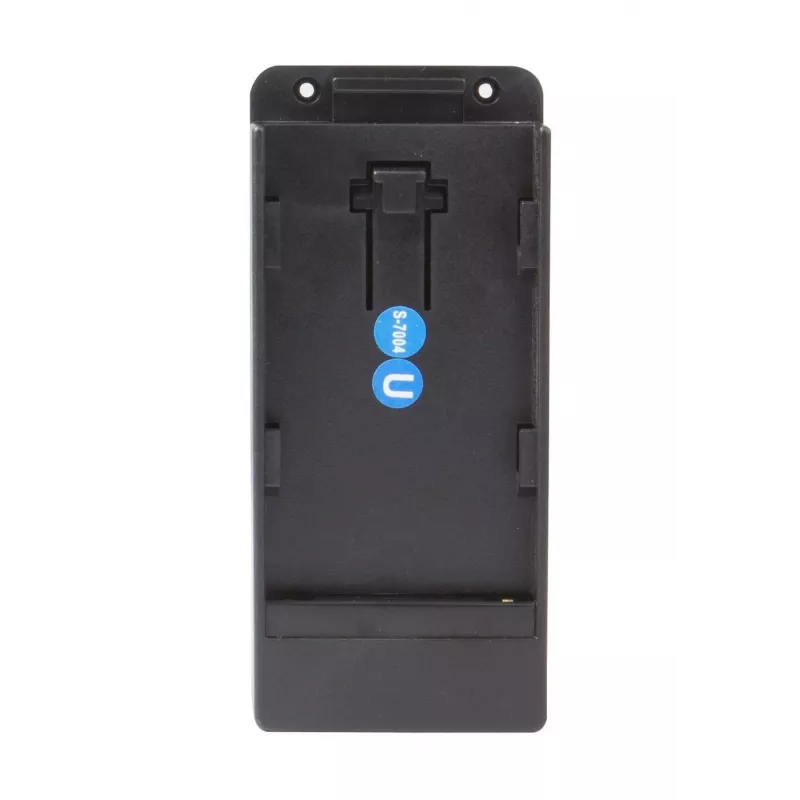

The SWIT ELECTRONICS S-7004U Battery Plate is a professional-grade U-Mount battery plate designed for use with Sony BP-U series batteries and SWIT S-8U63 batteries. Its compact dimensions (100 mm x 47 mm x 19 mm) and black finish make it an ideal power solution for professional video cameras, field monitors, and LED lighting.

Advantages

This battery plate offers reliable power delivery with a nominal output of 14.4V DC and up to 50W, featuring a D-Tap (P-Tap) connector. It is built with high-impact ABS plastic and metal for durability, and includes over-voltage and over-current protection for safe operation.

Suitable for

• Professional video cameras
• Field monitors
• LED lighting
• Rig-mounted setups

Key specifications

• Product Type: Battery Plate
• Battery Mount Type: U-Mount
• Compatible Batteries: Sony BP-U30, BP-U60, BP-U90, SWIT S-8U63
• Output Connector: 1x D-Tap (P-Tap)
• Nominal Output Voltage: 14.4V DC
• Maximum Output Power: 50W
• Maximum Output Current: 3.5A
• Material: High-impact ABS Plastic, Metal
• Color: Black
• Mounting Interface: Multiple screw holes for direct camera/rig mounting
• Protection Features: Over-voltage, Over-current
• Operating Temperature: -20°C to 45°C
• Storage Temperature: -30°C to 50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with genuine Sony BP-U series or SWIT S-8U63 batteries. Ensure proper mounting using the provided screw holes.
