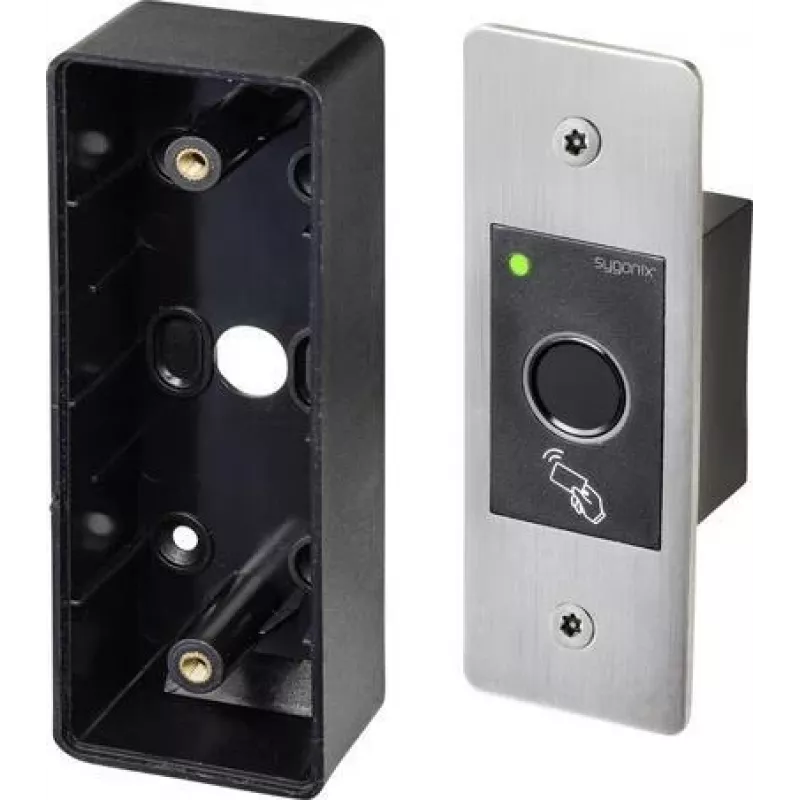

Sygonix SY-4760952 fingerprint/RFID systém kontroly vstupu do omietky 12-18 V/DC IP66

Access control reader with fingerprint and RFID card/tag authentication for flush-mount installation. Supports up to 100 fingerprints and 990 EM4100 compatible cards (125 kHz), with a total user capacity of 1000. Features an optical fingerprint sensor, backlit keypad, anti-tamper alarm, and doorbell function.

Advantages

Flush-mount design in zinc alloy housing with IP66 rating for outdoor use. Wiegand 26-bit output for integration with standard controllers. Adjustable relay time (0-99 seconds) and NO/NC relay output rated up to 2A / 30V DC.

Suitable for

• Building entrances requiring dual authentication
• Outdoor or harsh environments (IP66, -20°C to +50°C)
• Integration with existing Wiegand-based access control systems

Key specifications

• Authentication: Fingerprint, RFID card/tag (125 kHz, EM4100)
• Capacity: 100 fingerprints, 990 cards, 1000 total users
• Operating voltage: 12 - 18 V/DC, current < 150 mA
• Relay output: NO/NC, max 2A / 30V DC, adjustable 0-99 s
• Interface: Wiegand 26-bit output
• Housing: Zinc alloy, IP66
• Operating temperature: -20 °C to +50 °C
• Special features: Anti-tamper alarm, doorbell function, backlit keypad

Recommendations

Use with a compatible access controller or standalone relay for door strike control. Ensure proper sealing during flush-mount installation to maintain IP66 rating.
