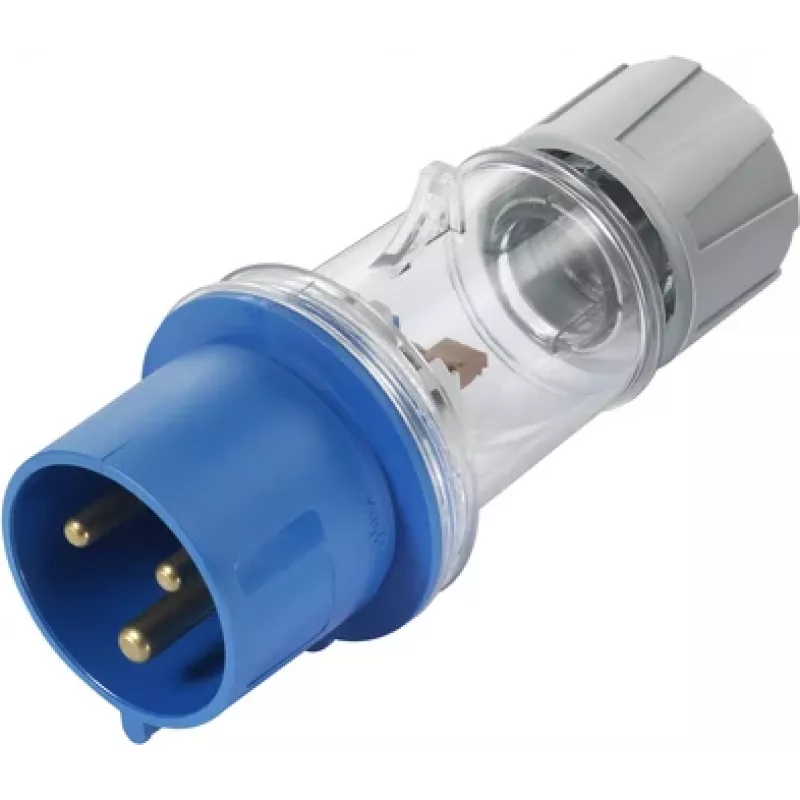

Sygonix SY-5871534 CEE-CARA konektor samec 32 A 3-pólový 230 V/AC IP44 transparentný

The Sygonix SY-5871534 CEE-CARA plug stands out with its transparent housing, allowing a clear view of the internal connections for quick inspection and added confidence during use. Built for demanding environments, it handles 32 A at 230 V AC and is rated IP44 for protection against splashing water and solid objects larger than 1 mm.

Highlights

• Transparent housing for visual inspection of wiring
• 32 A current rating for high-power applications
• 3-pole (2P+E) configuration with 6h earth pin position
• IP44 ingress protection for outdoor and damp locations
• Screw terminals accept cables from 2.5 mm² to 10 mm²
• Durable polyamide housing with nickel-plated brass contacts

In daily use

This plug is a practical choice for camping, caravan, outdoor events, and light industrial settings. The screw-type cable gland provides secure strain relief, while the transparent body lets you confirm correct wiring at a glance. It complies with IEC 60309, ensuring compatibility with standard CEE sockets.

Full specifications

• Connector type: CEE plug
• Current rating: 32 A
• Voltage rating: 230 V AC
• Number of poles: 3 (2P+E)
• Ingress protection: IP44
• Housing colour: Transparent
• Connection technology: Screw terminals
• Cable cross-section: 2.5 – 10 mm²
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA)
• Contact material: Brass, nickel-plated
• Cable gland: Screw-type
• Standard compliance: IEC 60309
• Operating temperature: -25 °C to +40 °C
• Earth pin position: 6h

Final note

A reliable and inspectable power connection for high-current applications, built to withstand outdoor conditions.
