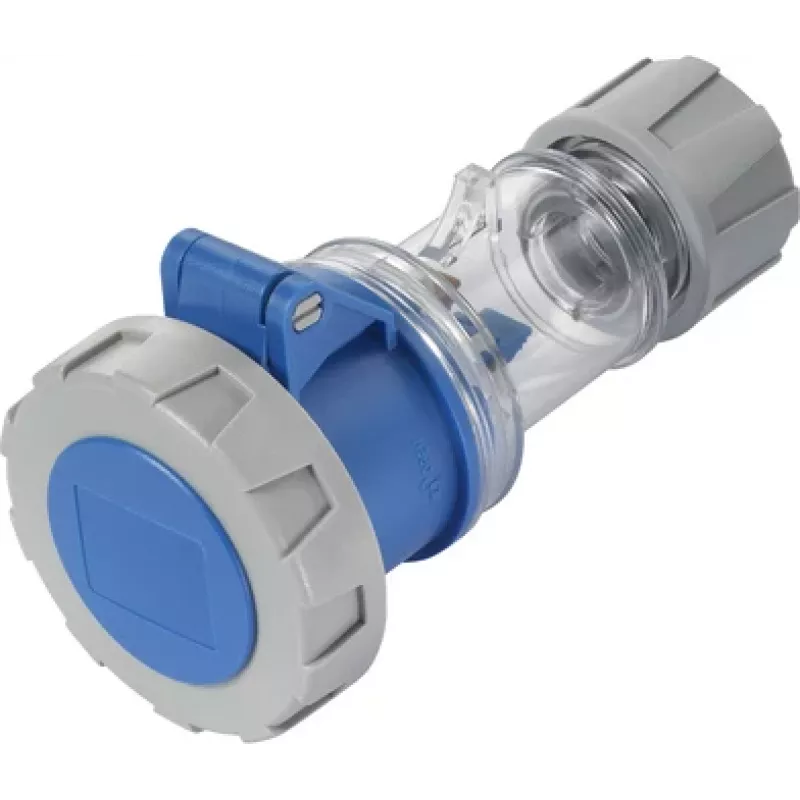

Sygonix SY-5873152 CEE Caravan konektor samica 16 A 3-pólový 230 V/AC IP67 bez skrutiek

The Sygonix SY-5873152 is a CEE caravan/camping coupling rated at 16 A and 230 V/AC, featuring a screwless terminal design for fast, tool-free wiring. Its IP67-rated housing is dust-tight and protected against temporary immersion, making it ideal for outdoor power connections in caravans, motorhomes, boats, and industrial settings.

Advantages

Screwless terminals enable quick and secure conductor connection without special tools. The robust polyamide housing withstands impacts and harsh environments, while the integrated strain relief protects the cable entry. The coupling is straight and cable-mounted, ensuring a reliable inline connection.

Suitable for

• Caravans and motorhomes
• Camping and outdoor events
• Boats and marinas
• Industrial power distribution

Key specifications

• Connector type: CEE caravan/camping coupling (female)
• Current rating: 16 A
• Voltage rating: 230 V/AC
• Number of poles: 3-pole (2P+E)
• Ingress protection: IP67
• Connection method: screwless terminal
• Frequency: 50/60 Hz
• Housing material: polyamide (PA)
• Colour: blue
• Standard compliance: IEC 60309
• Operating temperature range: -25 to +40 °C
• Suitable cable diameter: 6 - 13 mm
• Contact material: brass
• Mounting type: inline (cable-mounted)
• Connection angle: straight

Recommendations

For reliable outdoor power connections, pair this coupling with a compatible CEE plug and appropriate cable. Ensure the cable diameter is within the specified range for optimal strain relief and sealing.
