Sygonix SY-6056896 Magnetický kontakt NC 24 V/DC biely pre dvere/okná max. 15 mm

With a maximum switching distance of 15 mm, this magnetic contact reliably monitors doors, windows, drawers, and gates. The normally closed (NC) contact triggers an alarm when the magnet is separated, making it ideal for security systems.

Overview

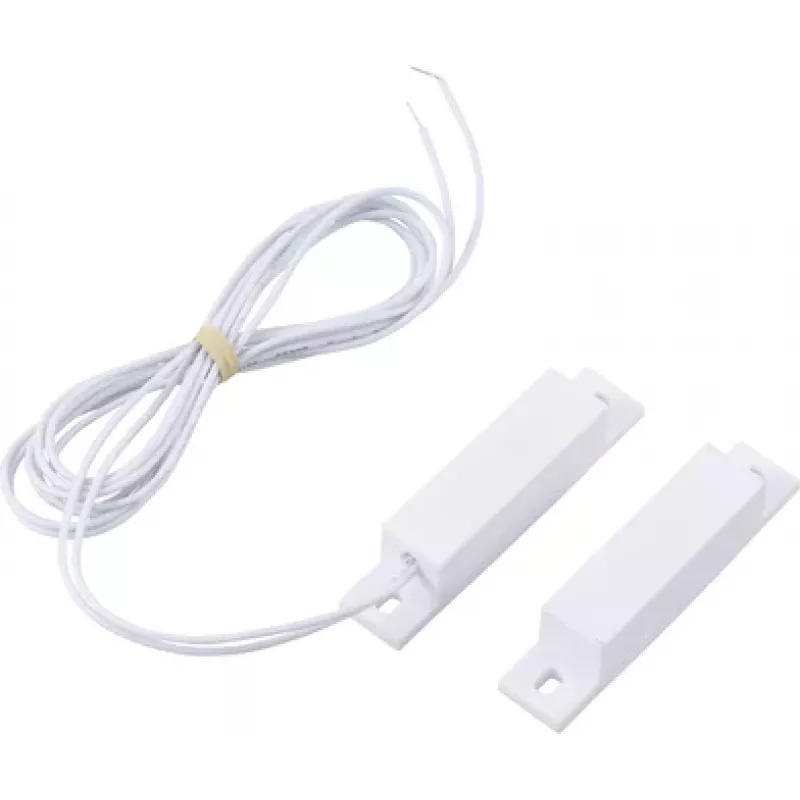

The Sygonix SY-6056896 is a surface-mounted magnetic contact sensor in white ABS plastic. It operates at up to 24 V/DC and 0.5 A, with a maximum switching power of 10 W. The 30 cm cable allows flexible installation, and the IP67 rating ensures protection against dust and temporary immersion.

What stands out

• Wide 15 mm switching gap for reliable detection
• Normally closed (NC) contact for security applications
• IP67-rated housing withstands harsh environments
• Compact size: sensor and magnet each 50 x 10 x 10 mm
• Operating temperature range from -20 to +60 °C

Technical details

• Contact type: Normally Closed (NC)
• Max. switching distance: 15 mm
• Max. operating voltage: 24 V/DC
• Max. switching current: 0.5 A
• Max. switching power: 10 W
• Connection: Cable, 30 cm length
• Mounting: Surface mount
• Housing material: ABS plastic
• Colour: White
• Protection class: IP67
• Operating temperature: -20 to +60 °C
• Sensor dimensions: 50 x 10 x 10 mm
• Magnet dimensions: 50 x 10 x 10 mm

Our verdict

A dependable magnetic contact with a generous switching gap and robust IP67 housing, suitable for a wide range of security and monitoring tasks.
