Sygonix SY-6118230 nástenný PIR pohybový senzor 180° relé biely

With a 180° detection angle and a range of up to 12 metres, this Sygonix PIR motion detector covers wide areas reliably. The built-in relay switches loads up to 1200 W, making it suitable for lighting and other resistive loads.

Overview

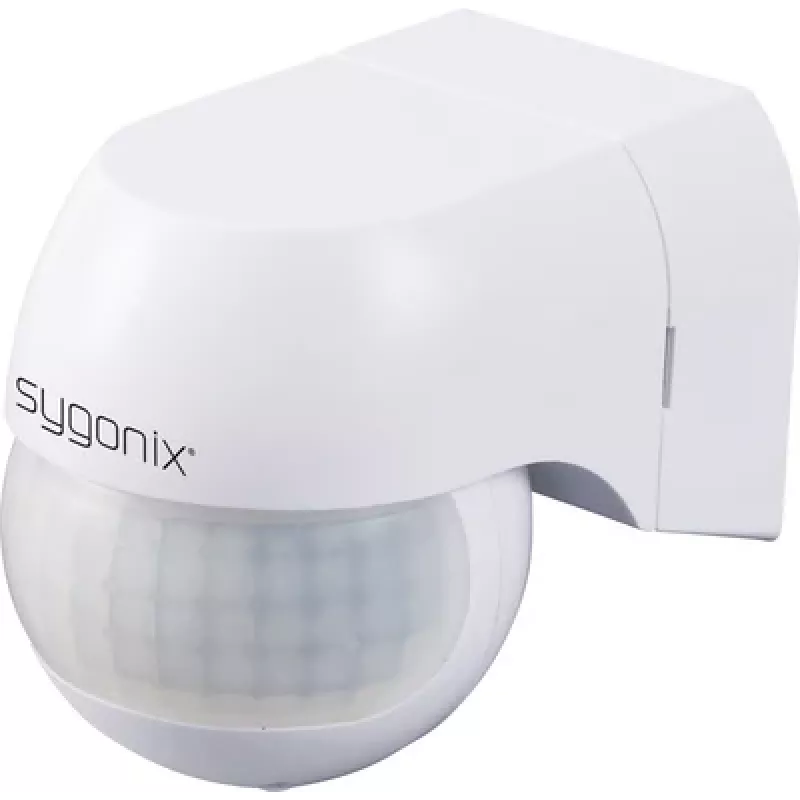

The Sygonix SY-6118230 is a passive infrared motion detector for wall mounting. It detects movement within a 180° field and triggers a relay output. The unit is designed for surface mounting and operates on 230 V AC. Its white housing is made of UV-resistant polycarbonate.

What stands out

• 180° detection angle with up to 12 m range
• Adjustable time delay from 10 seconds to 15 minutes
• Adjustable light sensitivity from 3 to 2000 lux
• Relay output for switching up to 1200 W resistive load
• IP44 rating for outdoor use

Technical details

• Sensor type: PIR (passive infrared)
• Detection angle: 180°
• Detection range: max. 12 m (at 2.5 m installation height)
• Mounting type: wall-mounted, surface-mounted
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive load): 1200 W
• Max. switching capacity (LED/inductive load): 300 W
• Time setting: 10 s – 15 min (adjustable)
• Light sensitivity: 3 – 2000 lux (adjustable)
• Recommended installation height: 1.8 – 2.5 m
• IP rating: IP44
• Housing material: UV-resistant polycarbonate (PC)
• Standby power consumption: < 0.5 W
• Operating temperature: -20 °C to +40 °C
• Operating humidity: < 93% RH (non-condensing)
• Output type: relay
• Switching cycles: > 10,000

Our verdict

A robust motion detector with flexible settings and a high switching capacity, ideal for outdoor lighting control.
