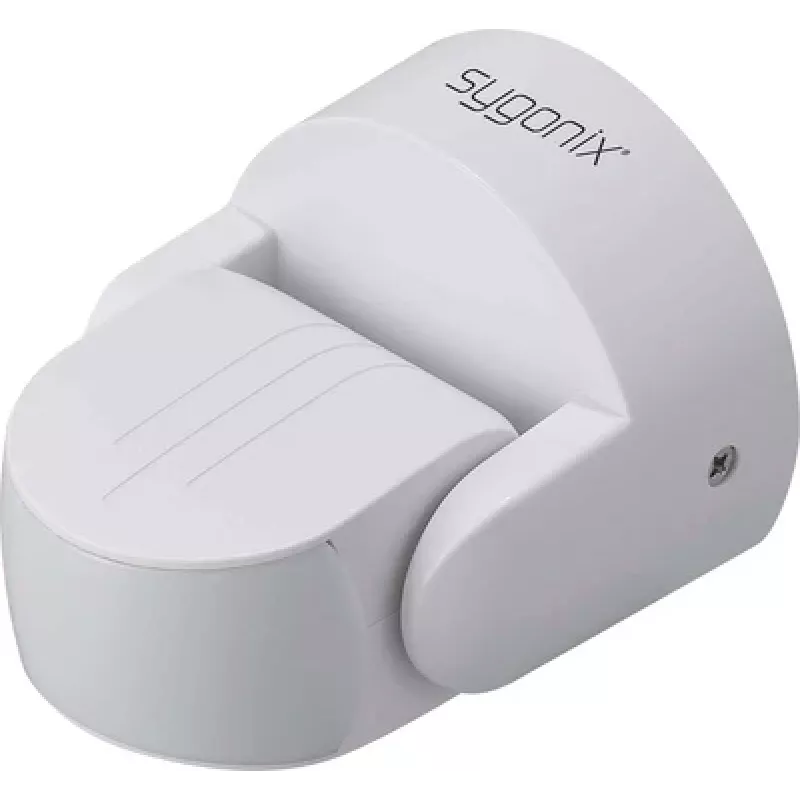

Sygonix SY-6440262 HF pohybový senzor 180° relé biely IP65 stena/strop

This Sygonix motion detector uses high-frequency radar instead of a passive infrared sensor, so it can detect movement through thin walls, glass, and plastic. The 180° coverage and IP65 housing make it suitable for both indoor and outdoor use, mounted on a wall or ceiling.

Highlights

• High-frequency (HF) radar sensor detects motion through non-metallic obstacles
• 180° detection angle with adjustable range from 1 to 8 metres
• IP65 weatherproof rating for outdoor installation
• Relay output switches up to 1200 W resistive or 300 W LED/inductive loads
• Adjustable time delay from 10 seconds to 12 minutes
• Light sensitivity adjustable from 3 to 2000 lux

In daily use

The detector operates on 220–240 V AC and consumes about 0.9 W in standby. It is recommended to install it at a height of 1.5 to 3.5 metres. The white housing is made of UV-resistant polycarbonate and can be used in temperatures from -20 °C to +40 °C.

Full specifications

• Detection technology: High-frequency (HF) / radar
• Detection angle: 180°
• Mounting type: Wall, ceiling
• International Protection (IP) code: IP65
• Operating voltage: 220 - 240 V AC
• Frequency: 50/60 Hz
• Max. switching capacity (resistive load): 1200 W
• Max. switching capacity (LED/inductive load): 300 W
• Detection range: 1 - 8 m (adjustable)
• Time delay setting: 10 sec - 12 min (adjustable)
• Light sensitivity: 3 - 2000 Lux (adjustable)
• Recommended installation height: 1.5 - 3.5 m
• Operating frequency (radar): 5.8 GHz
• Standby power consumption: 0.9 W
• Product colour: White
• Housing material: UV-resistant PC
• Operating temperature: -20 °C to +40 °C
• Humidity range: <93% RH (non-condensing)

Final note

Because the sensor uses radar, it can be installed behind a cover or in a protected location without losing sensitivity. The relay output makes it compatible with most lighting loads.
