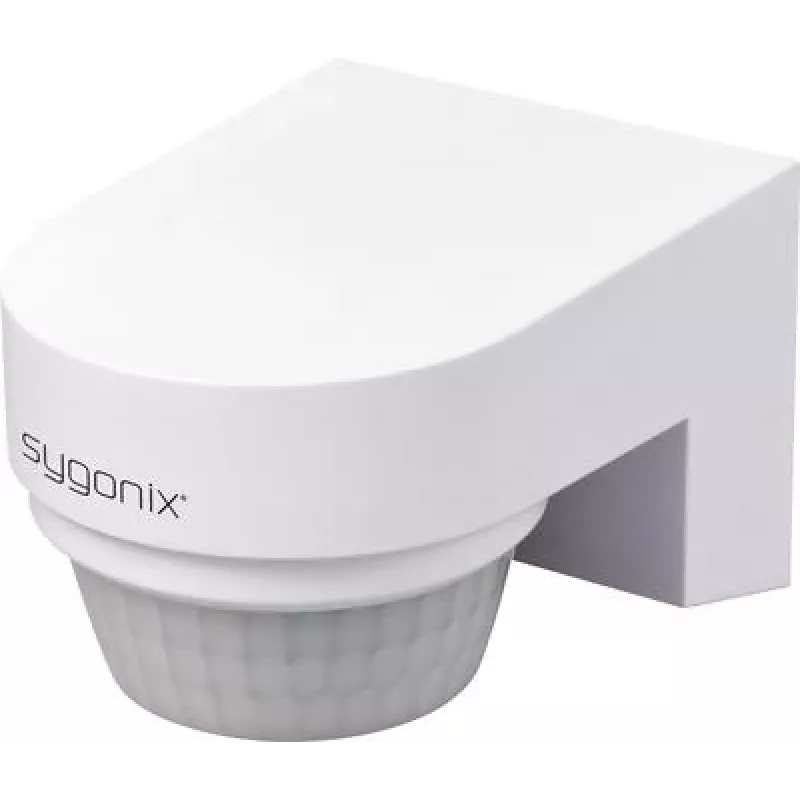

Sygonix SY-6733030 Nástenný PIR detektor pohybu 240° relé biely

With a wide 240° detection angle and a 12 m range, this PIR motion detector covers large areas from a single wall-mounted position.

Overview

The Sygonix SY-6733030 is a passive infrared motion sensor designed for surface mounting on walls. It operates on 220–240 V AC and switches lighting loads via a built-in relay, supporting up to 1200 W for incandescent lamps and 300 W for LED or fluorescent lighting.

What stands out

• 240° detection angle with up to 12 m range
• Adjustable time delay from 10 seconds to 15 minutes
• Light sensitivity adjustable from 3 to 2000 lux
• IP44 rated for outdoor and damp locations
• UV-resistant PC housing in white

Technical details

• Sensor type: Passive Infrared (PIR)
• Mounting type: Wall surface mount
• Operating voltage: 220–240 V AC, 50/60 Hz
• Max. switching capacity: 1200 W incandescent, 300 W LED/fluorescent
• Recommended installation height: 1.8–2.5 m
• Operating temperature: -20°C to +40°C
• Standby power consumption: 0.5 W
• Housing material: UV-resistant PC plastic

Our verdict

A robust and flexible motion detector for both indoor and sheltered outdoor use, with wide coverage and precise adjustment options.
