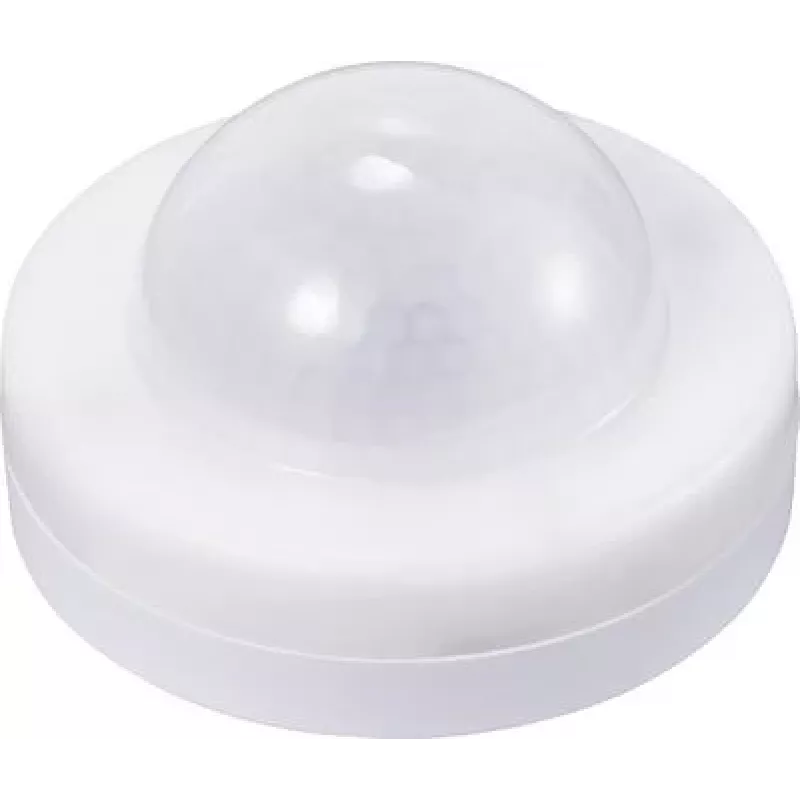

Sygonix SY-6733036 Stropný nástenný 360° PIR detektor pohybu s relé, biely

Install this ceiling-mounted motion detector in an office corridor, stairwell, or utility room to switch lights automatically when someone enters the 360° detection zone. The Sygonix SY-6733036 uses passive infrared technology to sense movement from any direction, with a relay output for controlling incandescent, fluorescent, or LED lighting loads.

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Mounting type: Ceiling, surface mount
• Operating voltage: 220 - 240 V/AC, 50/60 Hz
• Max. switching capacity: 2000 W incandescent, 1000 W fluorescent, 300 W LED
• Detection range: up to 6 m diameter at 2.4 m installation height
• Time setting: 10 seconds to 15 minutes, adjustable
• Twilight setting: 3 to 2000 lux, adjustable
• IP rating: IP20
• Recommended installation height: 2.2 to 4 m
• Standby power consumption: 0.5 W
• Switching contact type: Relay
• Colour: White
• Application area: Indoor

Why choose it

The 360° coverage eliminates blind spots directly below the sensor, and the relay contact handles a wide range of lighting types. Adjustable time and twilight settings let you fine-tune operation to match the room's usage and ambient light conditions.

Ideal use cases

• Automatic lighting in hallways, stairwells, and corridors
• Energy-saving control in utility rooms, storage areas, and basements
• Indoor spaces where hands-free light switching is preferred

Good to know

This detector is designed for indoor use only and mounts directly on the ceiling surface. It operates from a standard 220–240 V AC mains supply and consumes just 0.5 W in standby.
