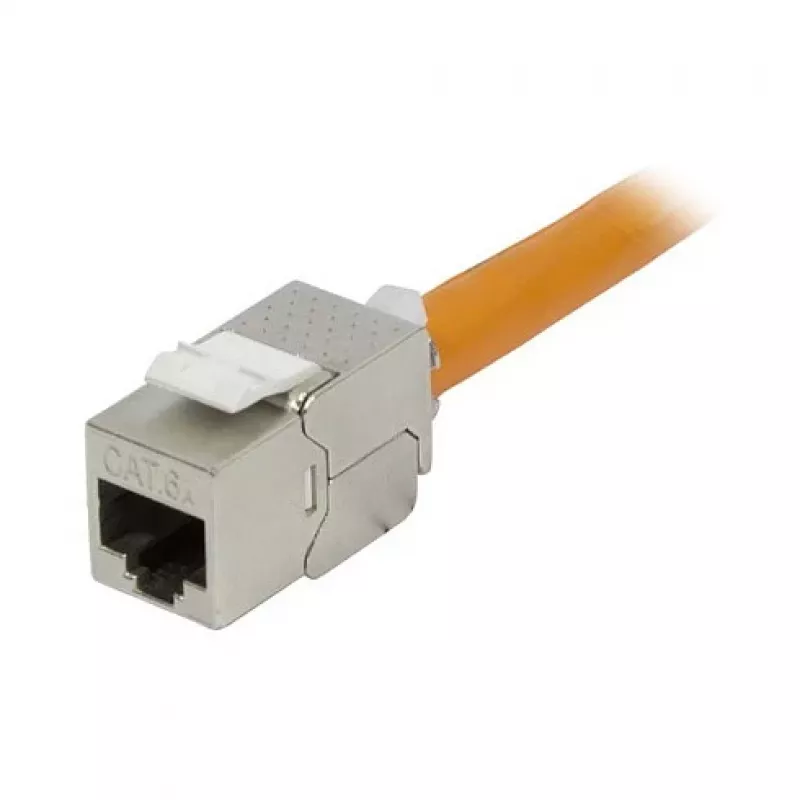

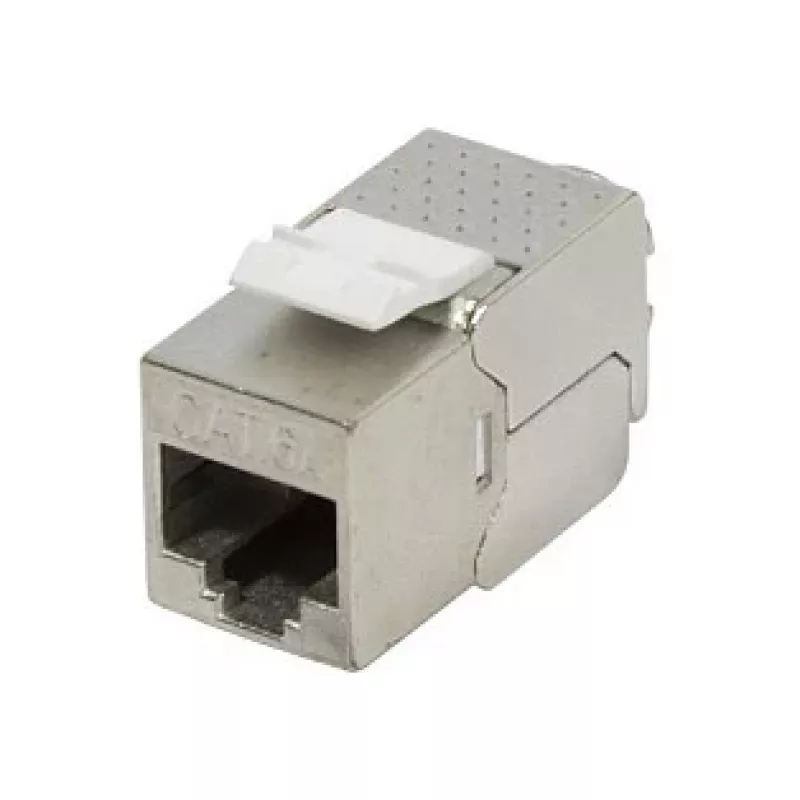

Synergy 21 Keystone modul TP konektor samica RJ45 CAT6A 500MHz Slim-line/Short

The Synergy 21 Keystone Module TP Socket RJ45 CAT6A 500MHz Slim-line/Short is a high-performance keystone jack designed for structured cabling systems. It supports 10 Gigabit Ethernet and is ideal for high-density patching environments where space is at a premium. The module features a shielded (STP) design, tool-less termination, and gold-plated contacts for reliable connectivity.

Advantages

This keystone module offers several benefits: its slim-line/short form factor allows for higher port density in patch panels and faceplates. The tool-less IDC termination saves installation time and reduces the risk of errors. The zinc die-cast housing provides durability and effective shielding against electromagnetic interference (EMI).

Suitable for

• Data centers requiring high-speed 10GBase-T connections
• Enterprise networks with structured cabling
• High-density patching applications
• Installations where space is limited

Key specifications

• Product Type: Keystone Module
• Connector Type: RJ45 Jack
• Category Rating: CAT6A
• Frequency Bandwidth: 500 MHz
• Shielding: STP (Shielded Twisted Pair)
• Form Factor: Slimline / Short

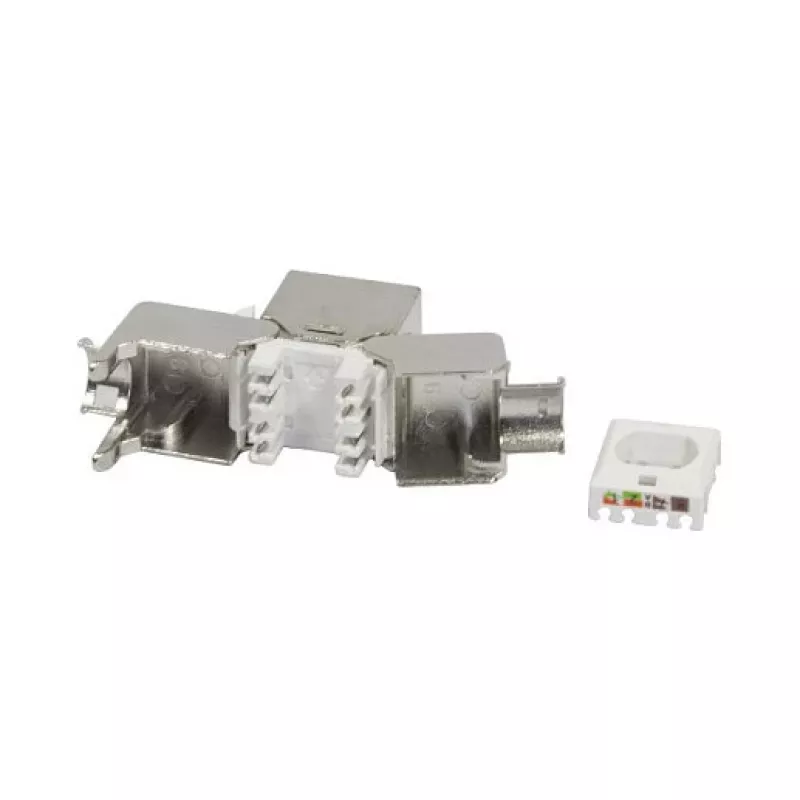

• Termination Type: Tool-less IDC
• Wiring Standard: TIA/EIA 568A/B (Dual Color Coded)
• Number of Positions/Conductors: 8P8C
• Contact Plating: Gold (50µ")
• Housing Material: Zinc Die-Cast
• Conductor Compatibility (Solid): AWG 22-24
• Conductor Compatibility (Stranded): AWG 26/7
• Installation: Snap-in for Keystone panels/outlets
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: Gigabit Ethernet, 10 Gigabit Ethernet (10GBase-T)
• Color: Metallic Silver

Recommendations

For optimal performance, pair this keystone module with CAT6A patch cables and ensure proper grounding of the shielded system. Suitable for use with Synergy 21 patch panels and faceplates.
