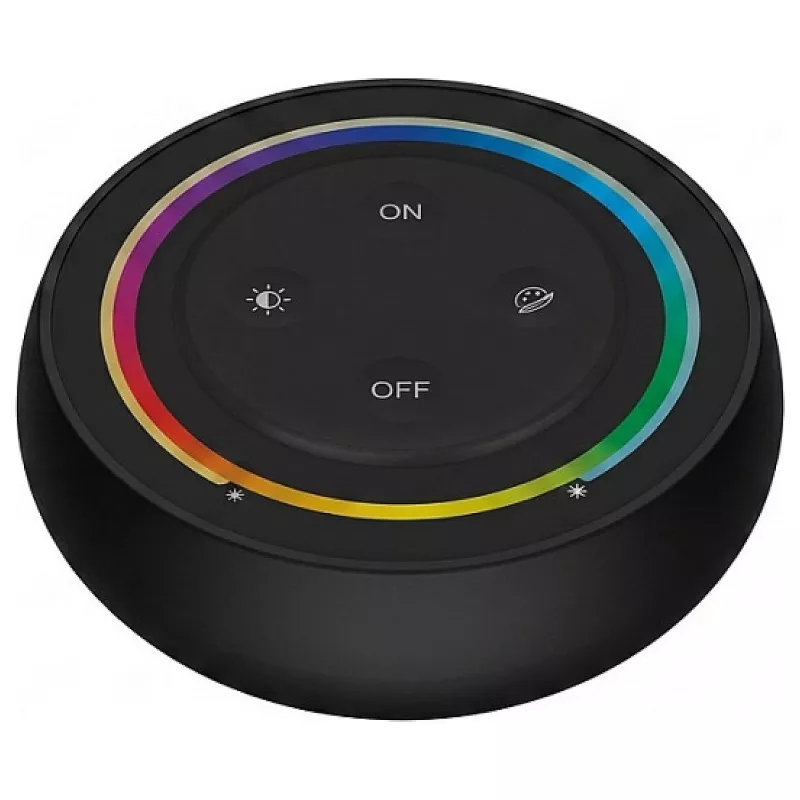

Synergy 21 LED Rainbow Remote (b) RGB+CCT pre MiLight/MiBoxer (S2-b)

The Synergy 21 LED Rainbow Remote (b) is a versatile 2.4 GHz RF handheld controller designed for MiLight and MiBoxer compatible LED lighting systems. It offers comprehensive control over RGB color, CCT (tunable white), dimming, saturation, and scene selection across 4 independent zones. The remote features a touch-sensitive color ring and multi-function buttons for intuitive operation. Powered by 2x AAA batteries (not included), it provides a transmission range of up to 30 meters in open areas. Ideal for residential and commercial lighting setups, this remote enhances ambiance with dynamic and static light modes.

Advantages

This remote simplifies lighting control with its user-friendly interface and broad compatibility. The 4-zone capability allows independent management of multiple light groups, while the touch ring enables smooth color transitions. Its compact, handheld design and long battery life make it a practical choice for everyday use.

Suitable for

• MiLight/MiBoxer 2.4G LED controllers and lamps
• RGB+CCT LED strips, bulbs, and panels
• Home, office, and commercial lighting environments
• Users seeking customizable lighting scenes and colors

Key specifications

• Control Technology: 2.4 GHz RF
• Compatibility: MiLight/MiBoxer 2.4G LED controllers and lamps
• Control Functions: RGB color, CCT, dimming, saturation, scene/program selection
• Number of Zones: 4 independent zones
• Power Source: 2x AAA batteries (not included)
• Transmission Range: Up to 30 meters (open area)
• Material: ABS Plastic
• Color: White
• Mounting Type: Handheld
• User Interface: Multi-function buttons and touch-sensitive color ring
• Operating Voltage: 3V DC
• Operating Temperature: -20°C to +60°C
• Standby Power Consumption: <20uA
• Control Modes: Static color, dynamic modes, white light modes
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with compatible MiLight/MiBoxer 2.4G receivers. Ensure fresh AAA batteries are installed. The remote is not waterproof; avoid exposure to moisture.
