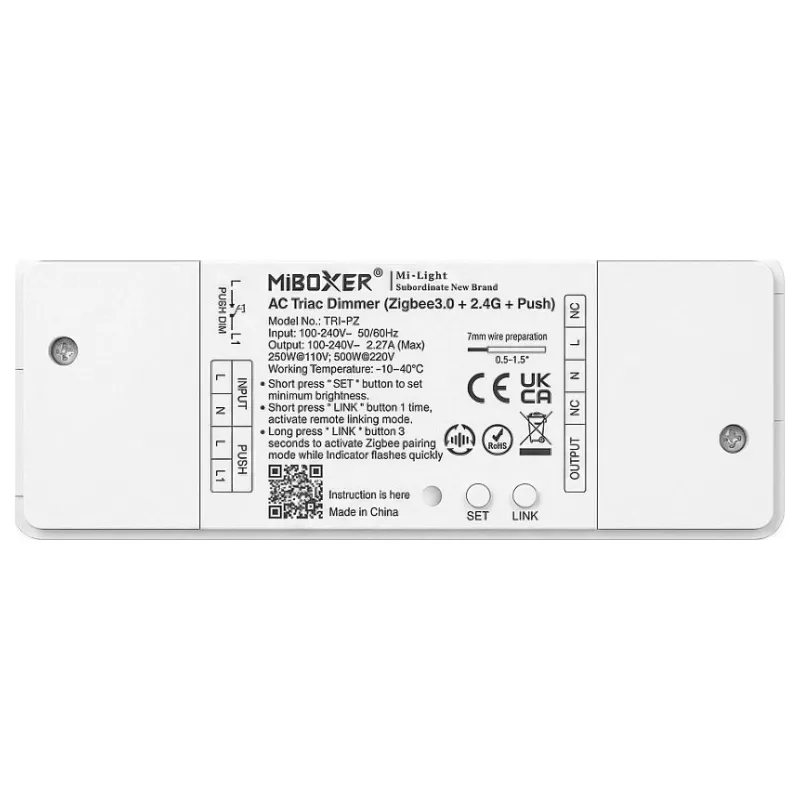

Synergy 21 LED stmievač ovládač AC TRIAC 500W Zigbee 3.0+2.4G+Push (TRI-PZ)

The Synergy 21 LED Dimmer Controller AC TRIAC 500W Zigbee 3.0+2.4G+Push (TRI-PZ) is a versatile and powerful dimming solution for LED lighting. It supports multiple control protocols including Zigbee 3.0, 2.4GHz RF (compatible with MiBoxer/Mi-Light), and push dimming via an external switch. With a maximum resistive load of 500W and LED load of 250W, it is suitable for a wide range of lighting applications. The controller features phase-cut dimming (leading/trailing edge) and offers a dimming range from 0.1% to 100%. It is designed for in-line or flush-mount installation and comes with overload, overheating, and short circuit protection.

Advantages

This dimmer controller provides seamless integration with popular smart home ecosystems such as Philips Hue, IKEA TRÅDFRI, and Amazon Echo Plus via Zigbee 3.0. It also works with MiBoxer/Mi-Light 2.4GHz remotes for convenient wireless control. The push dim function allows for simple on/off and dimming control using a standard push switch. Its compact design and easy installation make it ideal for both residential and commercial use.

Suitable for

• LED lighting control in homes, offices, and retail spaces
• Smart home automation systems
• Retrofit installations where existing wiring is used
• Applications requiring multiple control methods (Zigbee, RF, push)

Key specifications

• Product Type: AC TRIAC Dimmer Controller
• Input Voltage: AC 100-240V, 50/60 Hz
• Max Load Power (Resistive): 500W
• Max Load Power (LED): 250W
• Dimming Principle: Phase Cut (Leading Edge / Trailing Edge)
• Control Protocols: Zigbee 3.0, 2.4GHz RF (MiBoxer/Mi-Light), Push Dim
• Zigbee Compatibility: Universal Zigbee 3.0 Gateways (Philips Hue, IKEA TRÅDFRI, Amazon Echo Plus)
• RF Remote Compatibility: MiBoxer / Mi-Light 2.4GHz Remotes
• Dimming Range: 0.1% - 100%
• Operating Temperature: -10°C to 40°C
• Protection: Overload, Overheating, Short Circuit
• Housing Material: PC (Polycarbonate)
• Certifications: CE, RoHS
• Number of Channels: 1
• Installation Type: In-line / Flush-mount

Recommendations

For optimal performance, use with compatible Zigbee 3.0 gateways or MiBoxer/Mi-Light 2.4GHz remotes. Ensure the total connected load does not exceed the maximum ratings. This controller is not suitable for use with inductive loads such as motors or transformers.
