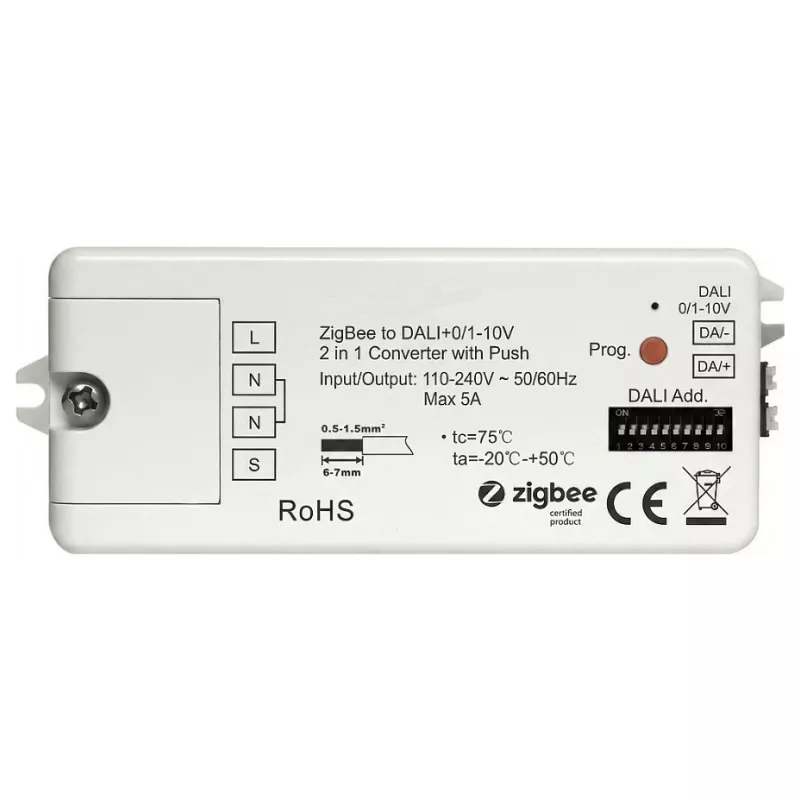

Synergy 21 ovládač EOS 10 ZigBee na DALI konvertor (S21-LED-SR250077)

The Synergy 21 Controller EOS 10 is a high-performance ZigBee to DALI converter designed for professional lighting control systems. It seamlessly bridges ZigBee 3.0 wireless networks with DALI-2 compliant lighting fixtures, enabling smart building automation and energy-efficient lighting management.

Advantages

This converter offers reliable and low-latency communication between ZigBee controllers and DALI luminaires. With an integrated DALI bus power supply and support for up to 64 DALI devices per channel, it simplifies installation and reduces additional component costs. Its compact surface-mount design and IP20 rating make it ideal for indoor use in control cabinets or ceilings.

Suitable for

• Smart lighting systems in commercial buildings, offices, and hotels
• Retrofit projects upgrading existing DALI installations to ZigBee control
• Integration with ZigBee 3.0 gateways and smart home hubs

Key specifications

• Input Voltage: 100-240V AC
• Input Protocol: ZigBee 3.0
• Output Protocol: DALI-2 (IEC 62386)
• DALI Output Channels: 1
• Max DALI Devices per Channel: 64
• Integrated DALI Bus Power Supply: Yes
• DALI Bus Current: 250 mA
• Max DALI Groups: 16
• Max DALI Scenes: 16
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20
• Mounting Type: Surface Mount
• Power Consumption (Standby): <0.5 W
• Housing Material: Plastic

Recommendations

For optimal performance, pair with a ZigBee 3.0 compatible controller and ensure DALI bus wiring does not exceed maximum current. Suitable for dry indoor environments only.
