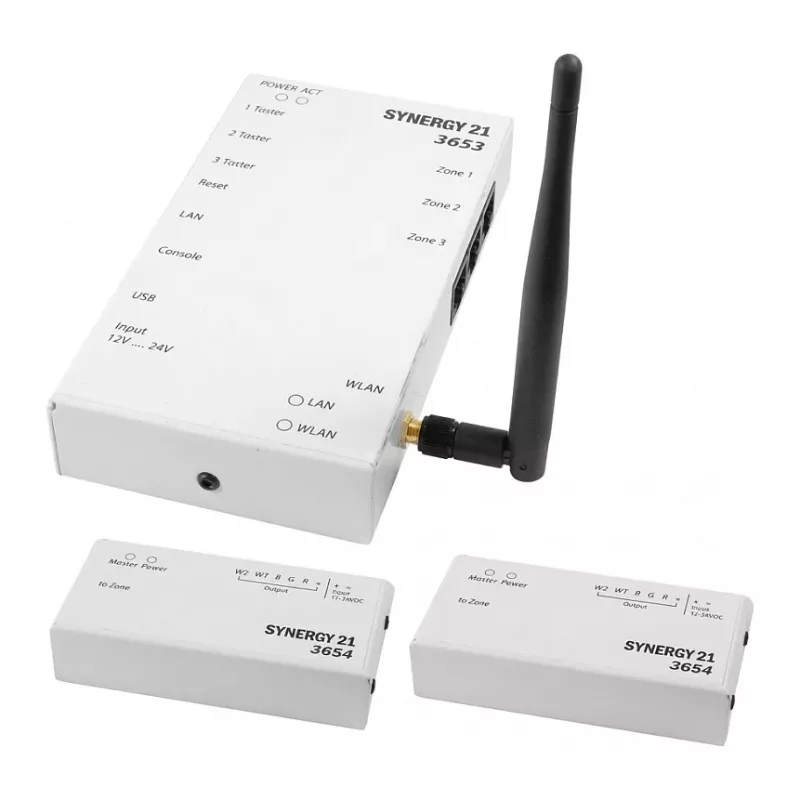

SYNERGY21 LED ovládač 3653 RGB-CCT Master Set

The SYNERGY21 LED Controller 3653 is a professional RGB+CCT LED controller designed for versatile lighting control. As part of the Master Set, it enables seamless management of RGB and tunable white LED strips via 2.4GHz RF wireless technology. Ideal for residential, commercial, and architectural lighting projects, this controller offers precise color mixing, dimming, and preset modes.

Advantages

Supports both RGB color control and CCT tunable white (3000K-6500K) for dynamic lighting scenes. With a control distance of up to 30 meters and compatibility with Mi-Light/MiBoxer remotes and gateways, it integrates easily into existing smart lighting systems. The common anode design ensures broad compatibility with LED strips.

Suitable for

• RGB+CCT LED strip installations
• Smart home lighting systems
• Architectural accent lighting
• Commercial display lighting

Key specifications

• Product Type: RGB+CCT LED Controller
• Control Protocol: 2.4GHz RF Wireless
• Input Voltage: DC 12V-24V
• Output Channels: 5 (RGB+CCT)
• Max Output Current per Channel: 6A
• Max Total Output Current: 10A
• Max Output Power: 120W (12V) / 240W (24V)
• Connection Type: Common Anode
• Control Distance: Up to 30m
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Housing Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with compatible 2.4GHz RF remotes or gateways from Mi-Light/MiBoxer. Ensure power supply voltage matches LED strip requirements (12V or 24V DC).
