SYNERGY21 LED séria EOS 10 Zigbee 2-kanálový ovládač CCT (2 drôty)

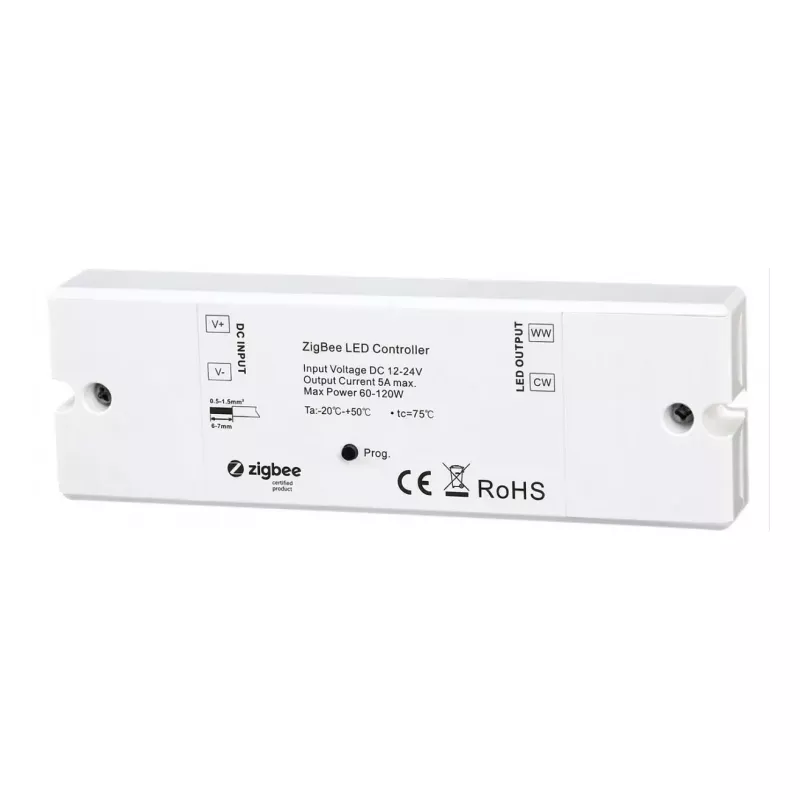

The SYNERGY21 LED Serie EOS 10 Zigbee 2 Channel Controller CCT is a professional-grade wireless controller designed for LED lighting systems. It enables precise control of Correlated Color Temperature (CCT) via Zigbee 3.0, allowing seamless integration with smart home ecosystems such as Philips Hue, Osram Lightify, and Amazon Echo Plus. This controller supports two channels for warm white and cold white LEDs, providing smooth dimming from 0 to 100%.

Advantages

Easy wireless control via Zigbee 3.0 eliminates the need for complex wiring. The dual-channel design allows independent adjustment of warm and cold white LEDs for perfect color temperature tuning. High output capacity supports up to 240W at 24V, making it suitable for large installations. Compact plastic housing with IP20 protection ensures safe indoor use.

Suitable for

• Smart home lighting systems
• Commercial LED installations
• Retail and hospitality lighting
• Architectural accent lighting

Key specifications

• Wireless Protocol: Zigbee 3.0
• Control Type: CCT (Correlated Color Temperature)
• Number of Channels: 2 (Warm White, Cold White)
• Input Voltage: DC 12-24V
• Output Voltage: DC 12-24V
• Max Output Current per Channel: 5A
• Total Max Output Current: 10A
• Max Output Power (12V): 120W
• Max Output Power (24V): 240W
• Dimming Range: 0-100%
• Protection Class: IP20
• Operating Temperature: -20°C to +60°C
• Input Wiring: 2-wire screw terminals (V+, V-)
• Output Wiring: 3-wire screw terminals (V+, Warm White, Cold White)
• Housing Material: Plastic

Recommendations

For optimal performance, use with a compatible Zigbee 3.0 gateway and ensure proper power supply matching the LED load. Suitable for indoor use only.
