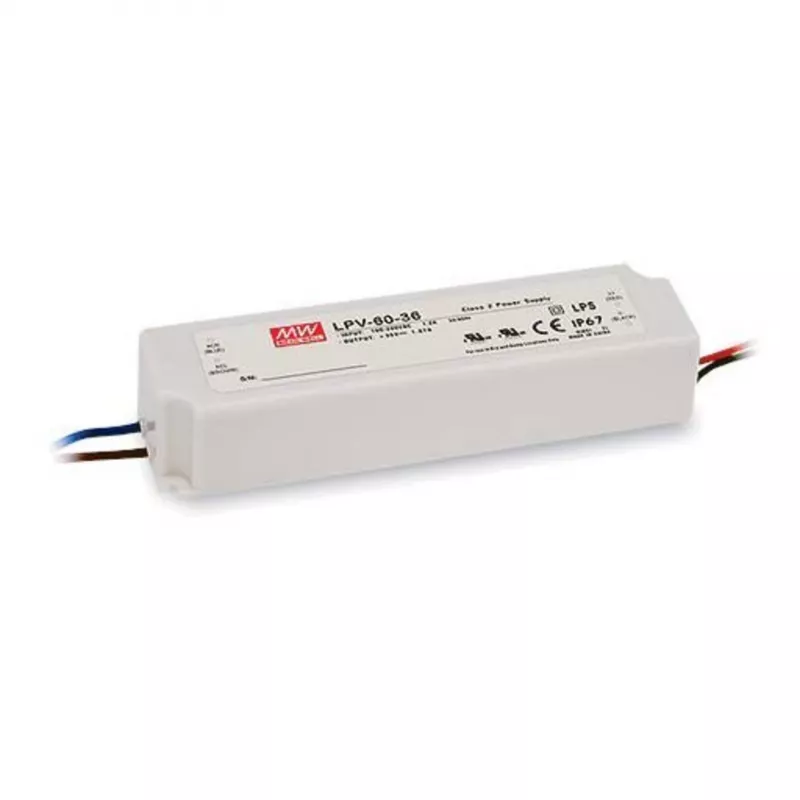

SYNERGY21 MEAN WELL LPV-60-24 60W 24V 2,5A IP67 LED driver s konštantným napätím

The SYNERGY21 MEAN WELL LPV-60-24 is a high-performance constant voltage LED driver designed for reliable and efficient power supply in demanding lighting applications. With an output of 60W at 24V DC and 2.5A, this driver ensures stable operation for a wide range of LED fixtures. Its IP67 rating makes it suitable for both indoor and outdoor use, providing protection against dust and water ingress.

Advantages

This LED driver offers high efficiency of 86%, reducing energy loss and heat generation. It features comprehensive protection against overload, overvoltage, and short circuits, ensuring long-lasting performance and safety. The free air convection cooling method eliminates the need for fans, making it silent and maintenance-free. With a wide input voltage range of 90-264 V AC and 47-63 Hz, it is compatible with global power grids.

Suitable for

• Indoor and outdoor LED lighting systems
• Constant voltage LED strips and modules
• Signage and architectural lighting
• Industrial and commercial lighting

Key specifications

• Output Power: 60 W
• Output Voltage: 24 V DC
• Output Current: 2.5 A
• Input Voltage: 90-264 V AC / 127-370 V DC
• Input Frequency: 47-63 Hz
• Efficiency: 86%
• IP Rating: IP67
• Protection: Overload, Overvoltage, Short Circuit
• Operating Temperature: -30 to +65 °C
• Ripple & Noise: 150 mVp-p
• Safety Certifications: UL8750, EN61347-1, EN61347-2-13
• EMC Compliance: EN55015, EN61000-3-2 Class C
• Cooling: Free Air Convection
• Dimming: No
• Housing Material: Plastic
• Color: White
• MTBF: 700,000 hours

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the maximum load. This driver is not dimmable; use with compatible non-dimmable LED fixtures. Suitable for dry and damp locations.
