SYNERGY21 S21-LED-026125 24V 100W Slim Line LED napájací zdroj

LED strips and modules need a stable 24V DC source to run at full brightness without flicker or premature failure. This SYNERGY21 S21-LED-026125 power supply delivers 100W of clean, regulated 24V DC from a 200-240V AC mains input, in a slim, linear plastic housing that fits neatly into tight installation spaces.

Who is it for

Electricians, lighting installers and DIY enthusiasts who build or maintain 24V LED lighting systems and need a reliable, compact power source for LED strips, modules or other constant-voltage LED products.

Main features

• 100W output power at 24V DC (4.17A) for demanding LED loads

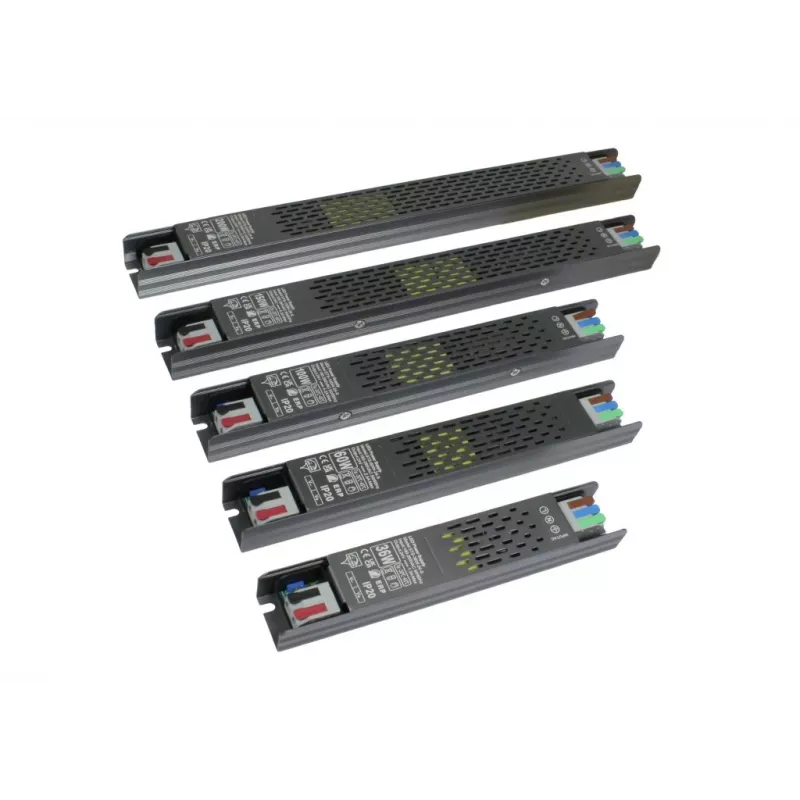

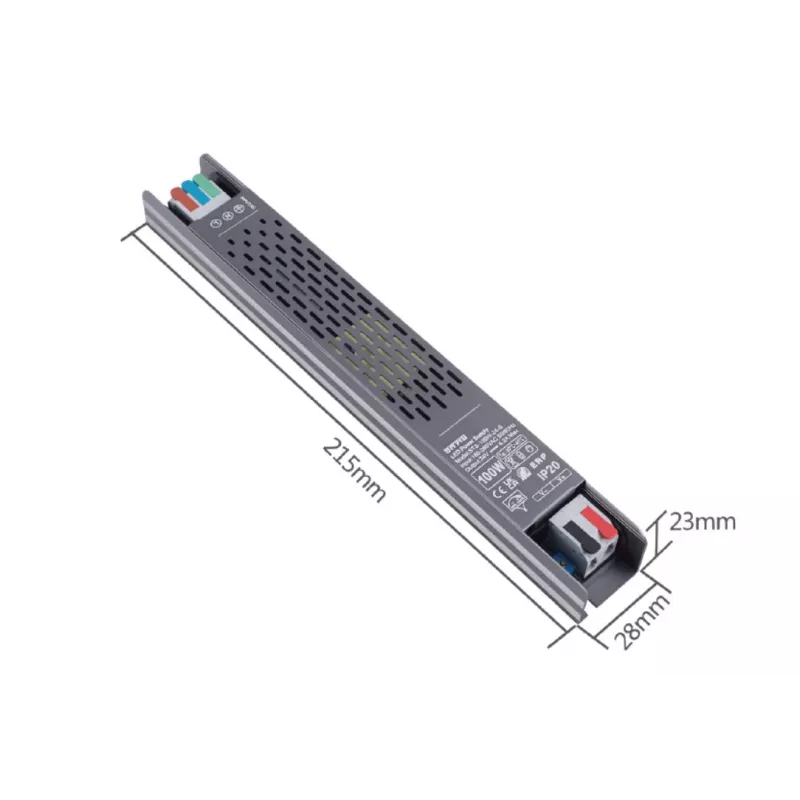

• Slim Line / linear form factor with passive convection cooling – no fan noise
• Plastic (PC) housing, IP20 rated for indoor use
• Protection against overload, short circuit and overvoltage

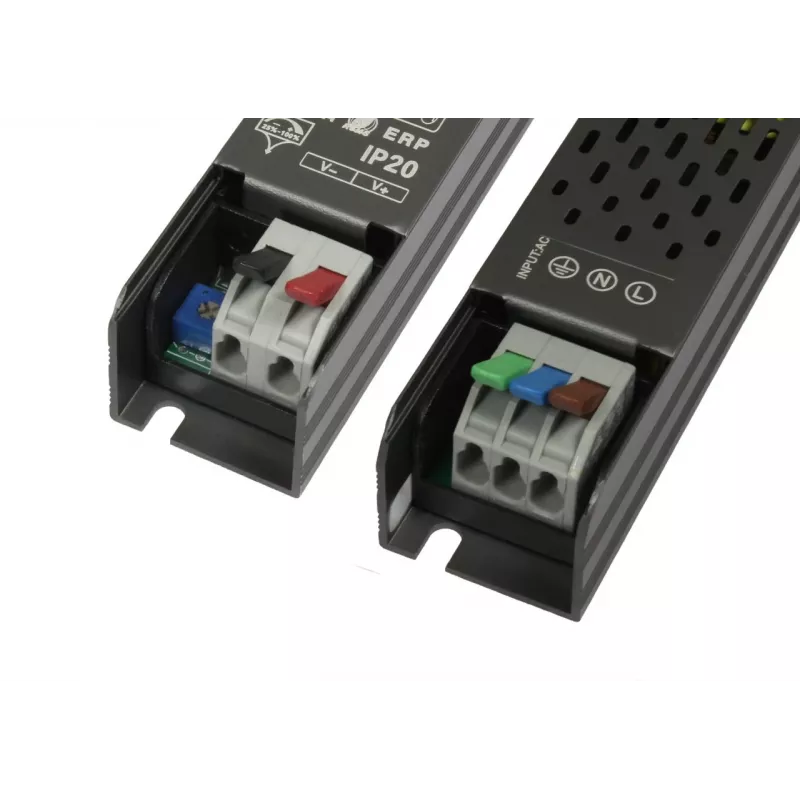

• Screw terminal connections for secure wiring
• High efficiency >85% reduces energy waste and heat
• Operating temperature range -20°C to +45°C
• CE and RoHS certified

Specifications

• Input voltage: 200-240V AC, 50/60 Hz
• Output voltage: 24V DC
• Output current: 4.17A
• Output power: 100W
• Efficiency: >85%
• IP rating: IP20
• Housing material: Plastic (PC)
• Cooling: Passive convection
• Connection: Screw terminals
• Dimming: Non-dimmable
• Operating temperature: -20°C to +45°C
• Protection: Overload, short circuit, overvoltage
• Certifications: CE, RoHS

Tips

Ensure the total wattage of your LED load does not exceed 80% of the power supply rating (80W) for long-term reliability. Mount the unit in a well-ventilated area, away from direct heat sources, and use appropriately sized wiring for the 4.17A output current.
