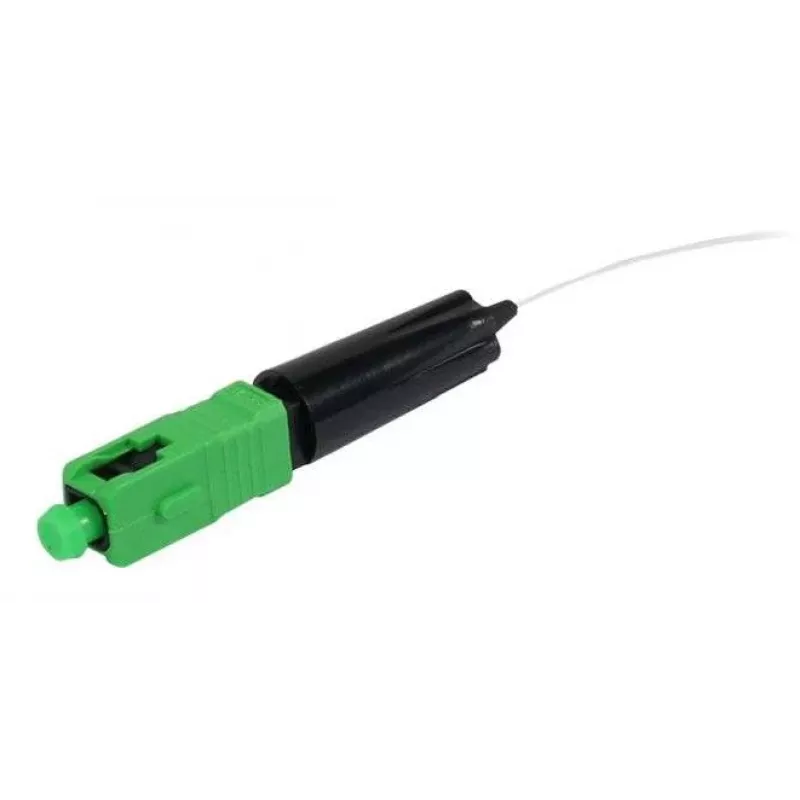

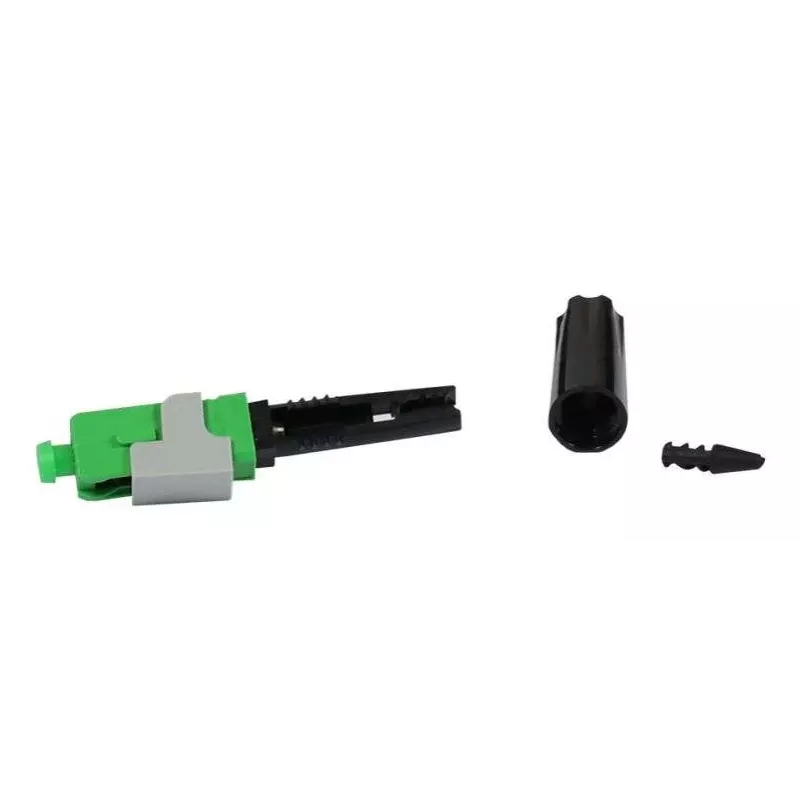

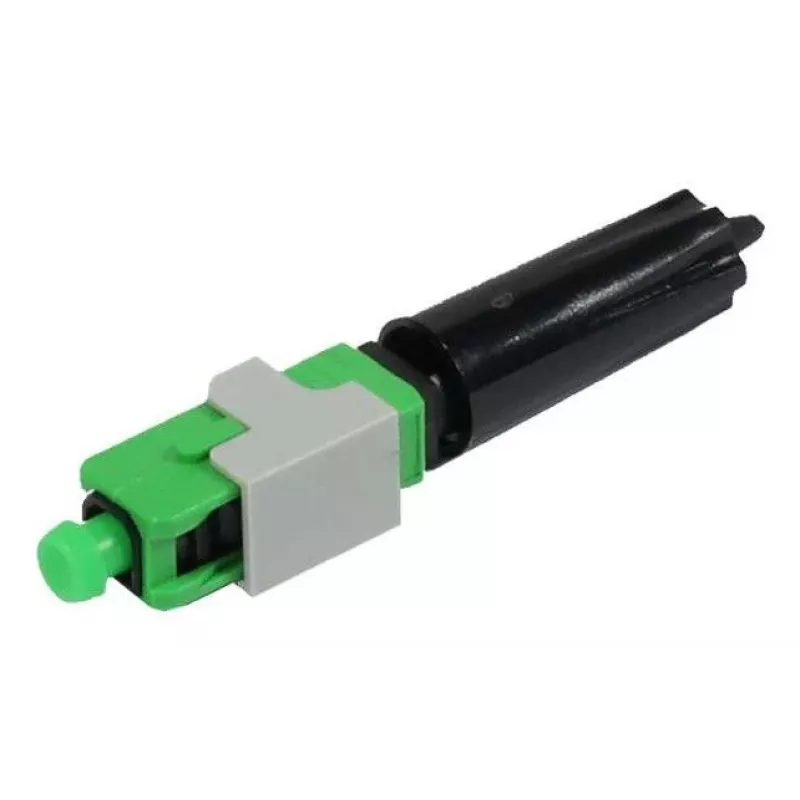

SYNERGY21 S215668 terénne inštalovateľný SC/APC single-mode optický konektor pre 0,9mm kábel

For FTTH installers terminating 0.9 mm single-mode fibre in the field, the SYNERGY21 S215668 provides a fast, reliable SC/APC mechanical splice connector. It eliminates the need for epoxy or polishing, enabling quick on-site terminations with low insertion loss and high return loss.

Key specifications

• Connector type: SC/APC
• Fibre mode: Single-mode 9/125 µm
• Compatible cable buffer diameter: 0.9 mm
• Termination method: Field-installable, mechanical splice
• Ferrule material: Zirconia ceramic
• Housing material: High-grade polymer
• Connector colour: Green
• Insertion loss: < 0.3 dB
• Return loss: > 60 dB
• Operating temperature: -40 °C to +85 °C
• Durability: > 500 mating cycles

Why choose it

This connector is designed for rapid, tool-free assembly in FTTH drop cable installations. Its pre-polished ferrule and mechanical splice ensure consistent optical performance without specialised equipment, reducing installation time and cost.

Ideal use cases

• FTTH subscriber terminations
• Field repair of single-mode fibre links
• Quick connector for 0.9 mm buffered fibre
• FTTx network deployments

Good to know

The green housing identifies the APC polish, which minimises back reflection for high-performance analogue and digital networks. The connector complies with IEC 61754-4 and TIA/EIA-604-3A standards.
