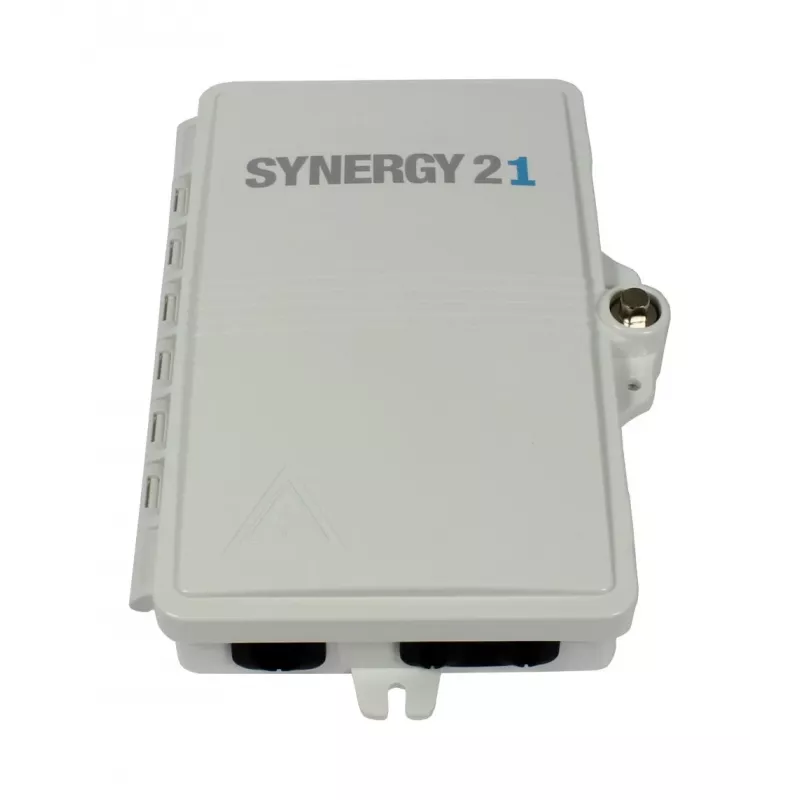

Synergy 21 FTTH nástenná skrinka IP65 1 vstup / 2 výstupy

The Synergy 21 FTTH Wall-Mounted Enclosure IP65 1 Input / 2 Output is a robust and weatherproof solution for fiber optic termination and splicing in Fiber To The Home (FTTH) and FTTx networks. Designed for outdoor or indoor use, this enclosure provides reliable protection for fiber connections with an IP65 rating against dust and water ingress.

Advantages

IP65 protection ensures durability in harsh environments. UV-resistant ABS plastic construction prevents degradation from sunlight. Integrated fiber routing and bend radius protection maintain signal integrity. Screw-secured lid prevents unauthorized access.

Suitable for

• FTTH network installations
• Outdoor fiber termination points
• Wall-mounted distribution points
• FTTx network infrastructure

Key specifications

• Enclosure Type: FTTH Wall-Mounted Enclosure
• IP Protection Rating: IP65
• Fiber Input Capacity: 1
• Fiber Output Capacity: 2
• Adapter Slot Type: SC Simplex (2 slots)
• Splice Capacity: 2x Fusion Splice or Mechanical Splice
• Material: UV-resistant ABS Plastic
• Mounting Method: Wall Mount
• Color: Light Grey
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +85°C
• Humidity Range: 0% to 95% (non-condensing)
• Flame Retardancy: UL94-V0 compliant
• Locking Mechanism: Screw-secured lid

Recommendations

For optimal performance, use with SC simplex adapters and fusion splice protectors. Ensure proper cable sealing at entry points to maintain IP65 rating.
