Synergy 21 FTTH nástenná skrinka IP65 1 vstup / 6 výstupov

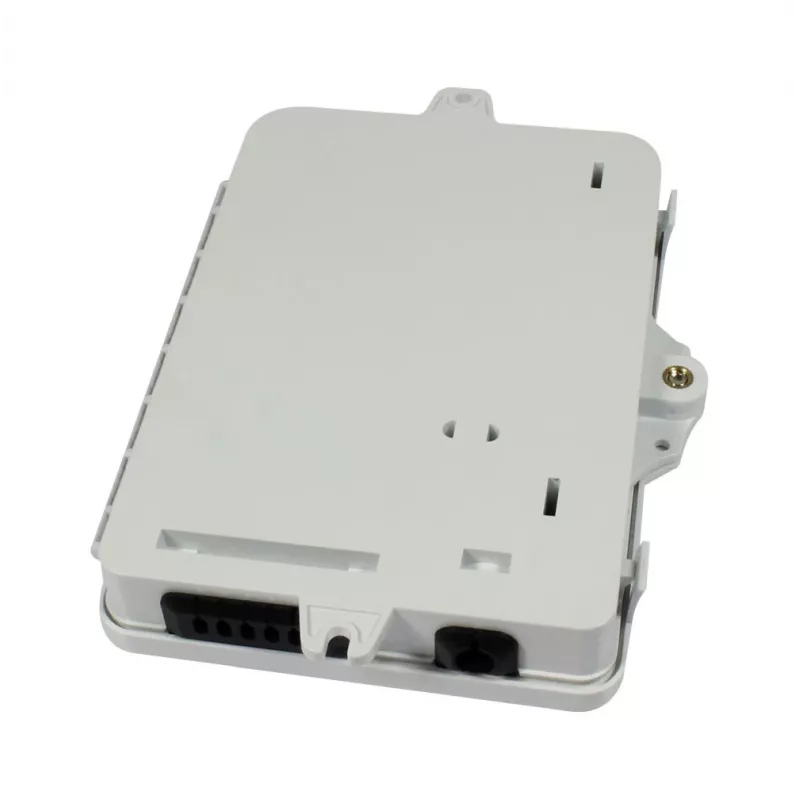

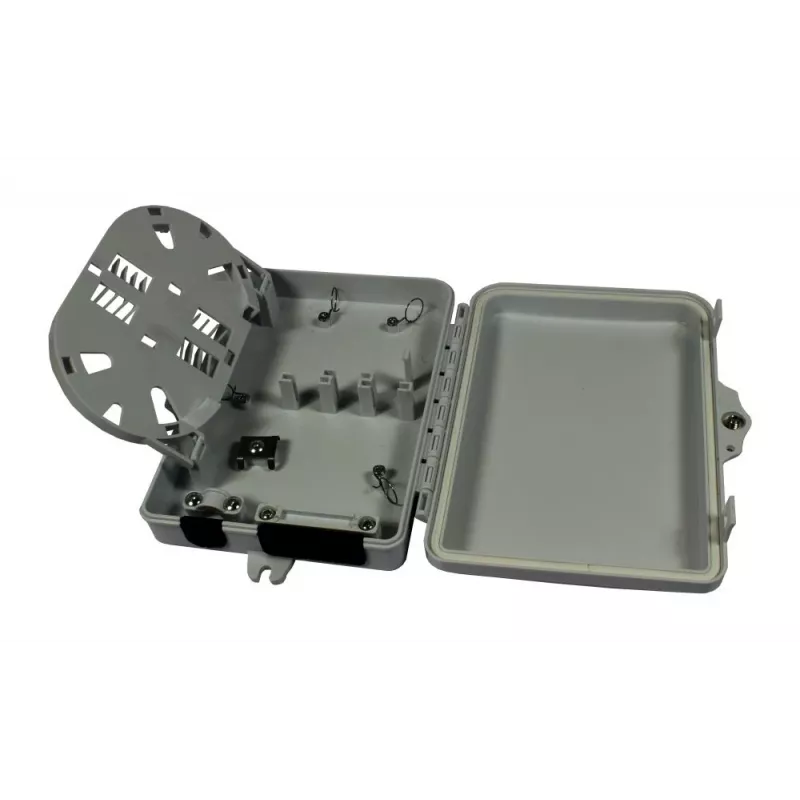

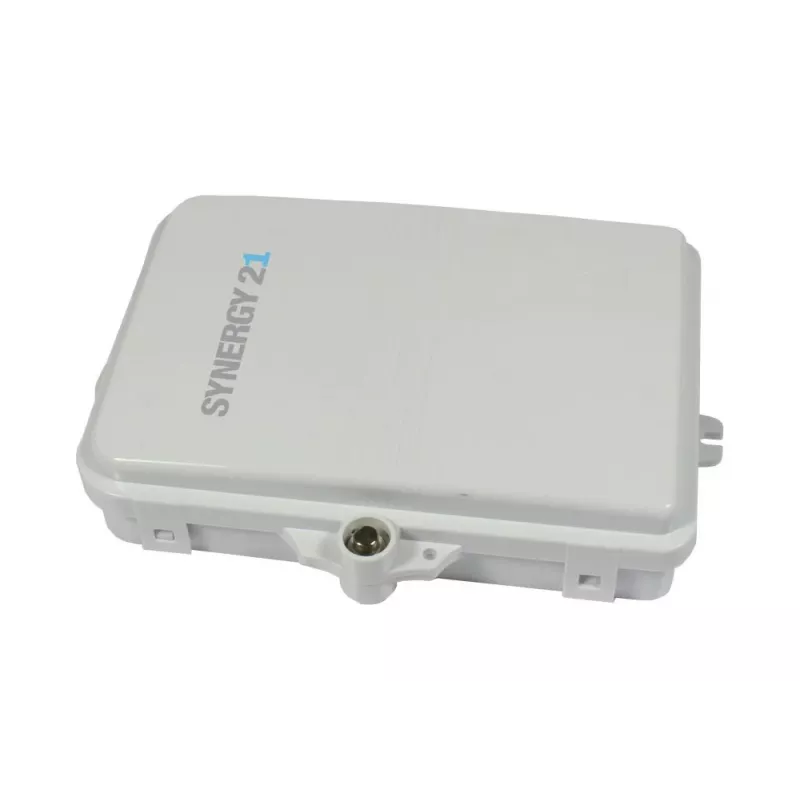

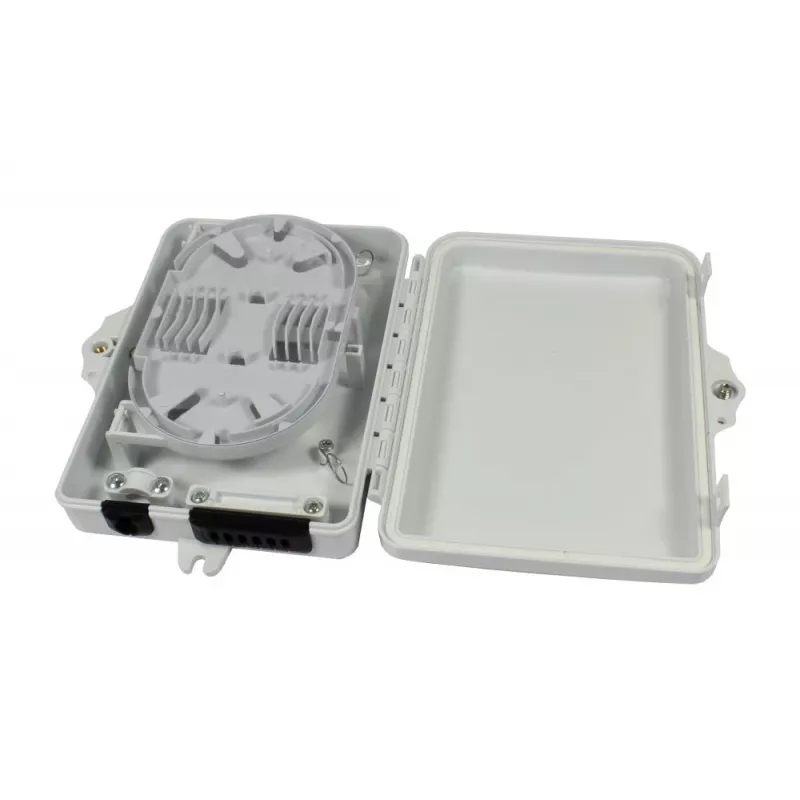

The Synergy 21 FTTH Wall Enclosure IP65 is a robust fiber optic distribution box designed for both indoor and outdoor Fiber-to-the-Home (FTTH) deployments. With a single input and six output ports, it provides reliable protection and management for fiber optic splices and connections. The enclosure is UV-resistant, flame retardant (UL94-V0), and features an IP65 rating, making it dust-tight and protected against water jets. Its wall-mountable design and integrated bend radius control ensure easy installation and optimal fiber management.

Advantages

This enclosure offers a compact yet expandable solution for FTTH networks. The IP65 rating guarantees durability in harsh environments, while the screw-fastened lid provides secure access. The integrated splice capacity of up to 6 fusion splices and support for SC Simplex or LC Duplex adapters (not included) make it versatile for various fiber optic configurations. The UV-resistant ABS/PC material ensures long-term performance in outdoor settings.

Suitable for

• FTTH (Fiber-to-the-Home) installations
• Outdoor fiber distribution points
• Indoor telecom rooms and closets
• Small to medium fiber optic networks

Key specifications

• Product Type: FTTH Wall Enclosure / Fiber Optic Distribution Box
• IP Rating: IP65
• Input Ports: 1
• Output Ports: 6
• Splice Capacity: Up to 6 fusion splices
• Adapter Type Support: SC Simplex or LC Duplex (adapters not included)
• Material: UV-resistant ABS/PC
• Mounting Type: Wall-mountable
• Application Environment: Indoor and Outdoor
• Color: Light Grey
• Cable Entry: Gland for incoming cable, multiple outlets for patch cords
• Locking Mechanism: Screw-fastened lid
• Fiber Management: Integrated bend radius control
• Operating Temperature: -20°C to +70°C
• UV Resistance: Yes
• Flame Retardancy: UL94-V0

Recommendations

For optimal performance, use with compatible SC or LC fiber optic adapters and patch cables. Ensure proper cable gland sealing for outdoor installations. This enclosure is ideal for FTTH networks requiring a durable, weatherproof distribution point.
