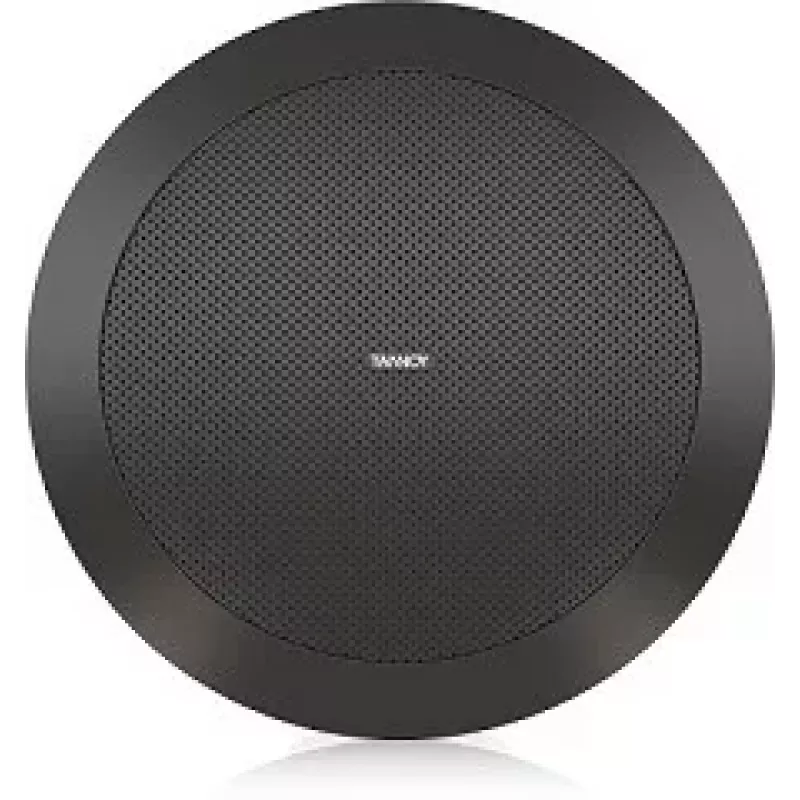

Tannoy CVS 301-BK 3 palcový koaxiálny stropný reproduktor (čierna)

The Tannoy CVS 301-BK is a high-performance 3-inch coaxial ceiling loudspeaker designed for professional installation applications. Engineered for exceptional sound quality and reliability, this speaker delivers clear, full-range audio in a compact, low-profile form factor. The black finish and perforated steel grille allow it to blend seamlessly into any environment.

Advantages

Featuring a coaxial driver design with a 3" (75 mm) low-frequency driver and a 0.75" (19 mm) high-frequency driver, the CVS 301-BK provides smooth, consistent coverage with a 120° conical dispersion pattern. The integrated 100V/70V line transformer with multiple tap settings (20W, 10W, 5W, 2.5W, 1.25W) offers flexible power handling for distributed audio systems. With a sensitivity of 86 dB and peak SPL of 108 dB, it delivers impressive output for its size.

Suitable for

• Background music and paging systems in commercial spaces
• Retail stores, restaurants, and hotels
• Conference rooms and offices
• Educational facilities and public areas

Key specifications

• Speaker Type: Coaxial Ceiling Loudspeaker
• LF Driver: 3" (75 mm)
• HF Driver: 0.75" (19 mm)
• Frequency Response (-3dB): 100 Hz - 20 kHz
• Frequency Range (-10dB): 80 Hz - 22 kHz
• Rated Power (AES): 20 W
• Program Power: 40 W
• Peak Power: 80 W
• Nominal Impedance: 8 Ohms
• Transformer Taps (100V): 20 W, 10 W, 5 W, 2.5 W
• Transformer Taps (70V): 20 W, 10 W, 5 W, 2.5 W, 1.25 W
• Sensitivity (1W/1m): 86 dB
• Maximum SPL (Peak): 108 dB
• Dispersion Angle: 120° Conical
• Mounting Cutout Diameter: 178 mm (7.0")
• Mounting Depth: 150 mm (5.9")
• Color: Black
• Grille Material: Perforated Steel
• Enclosure Material: ABS
• Connector Type: Locking 4-pin Euroblock

Recommendations

For optimal performance, pair the Tannoy CVS 301-BK with a compatible amplifier and ensure proper installation by a qualified professional. The speaker is designed for use with 100V or 70V distributed audio systems, as well as low-impedance (8 Ohm) setups.
