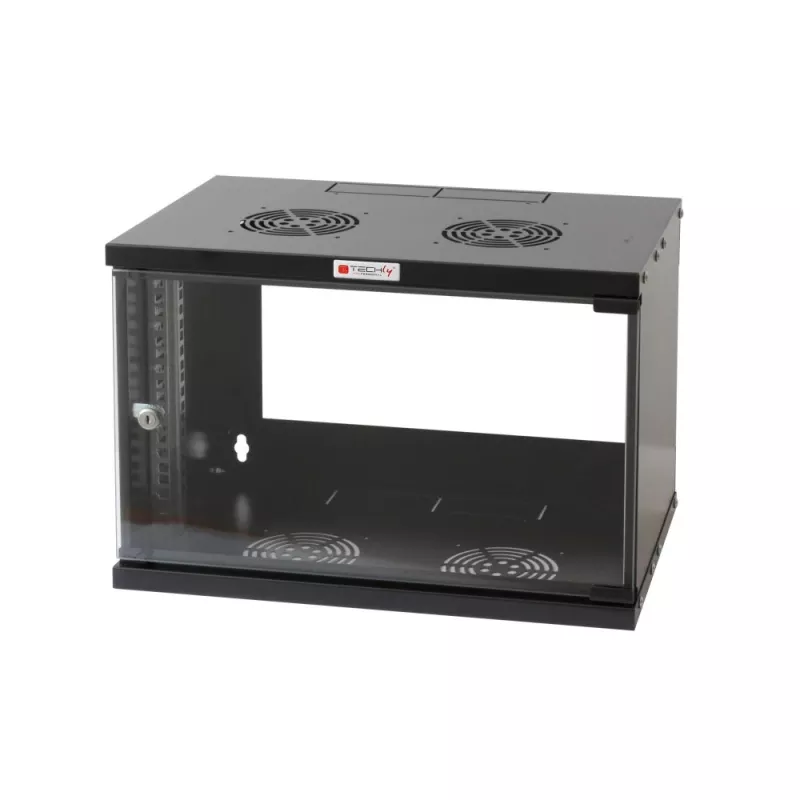

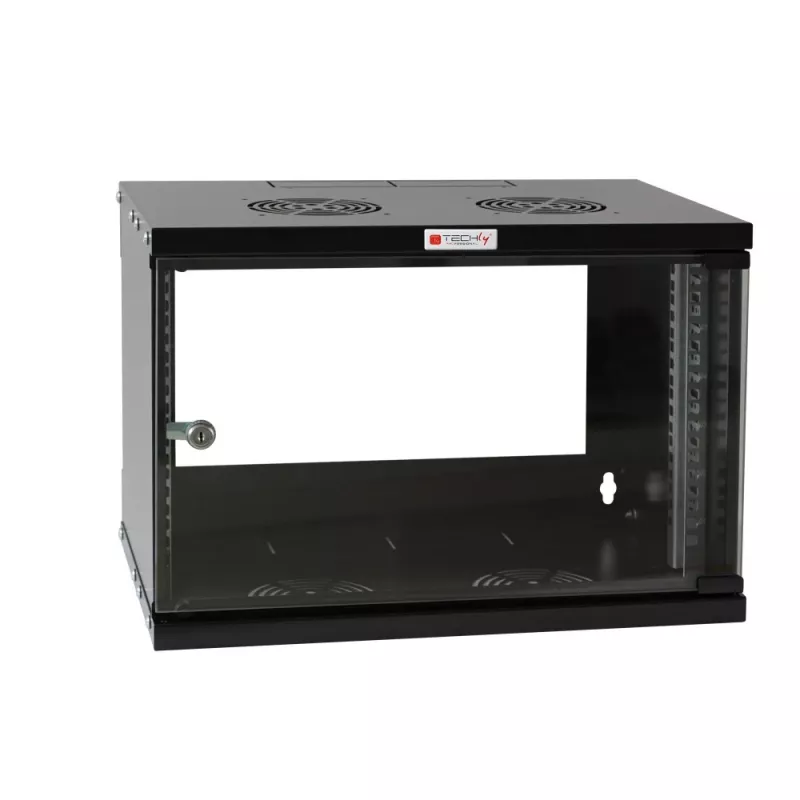

Techly nástenná skriňa 19" 6U D450 čierna montovaná I-CASE EL-1006B45

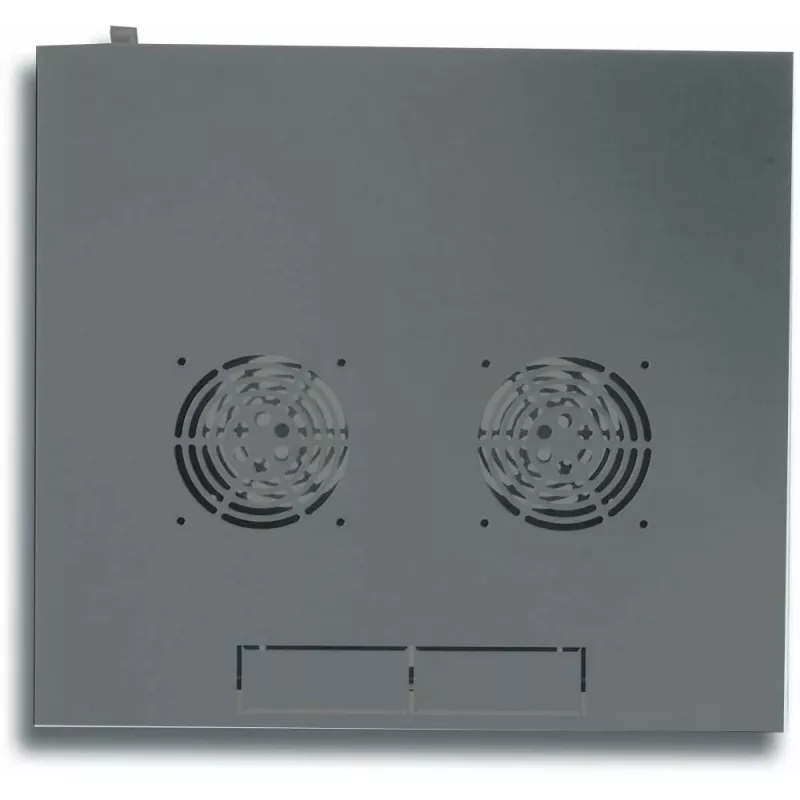

Wall mounted rack Techly I-CASE EL-1006B45 6U D450 Black is a 6U single-section wall cabinet made from welded cold-rolled steel with a removable 5 mm tempered glass door. The door is reversible, opens beyond 180° and is secured with a key lock. Fixed side blind panels are non-removable. The cabinet provides pre-sheared profiles for cable entry through both the base and the roof (225 x 45 mm) and has preparation points for installing two 120 mm fans on the roof and base. The product is finished in RAL 9005 (black) and includes the mounting kit with screws, nuts and an installation key.

Advantages

The Techly I-CASE EL-1006B45 offers a compact 6U capacity with a static load rating of 50 kg and an effective depth of 230 mm on adjustable 19" front uprights. Constructed from solid welded cold-rolled steel and fitted with a tempered glass door, it combines structural rigidity and visual access to installed equipment. It comes pre-prepared for cable routing and fan installation and includes the necessary fasteners for mounting, simplifying installation and reducing the need for additional accessories.

Suitable for

• Small network equipment and patch panels in offices or server rooms
• Access points, routers and switches for SMB or home networks
• Structured cabling termination and small control units
• Wall-mounted installations where space is limited

Key specifications

• Rack capacity: 6U

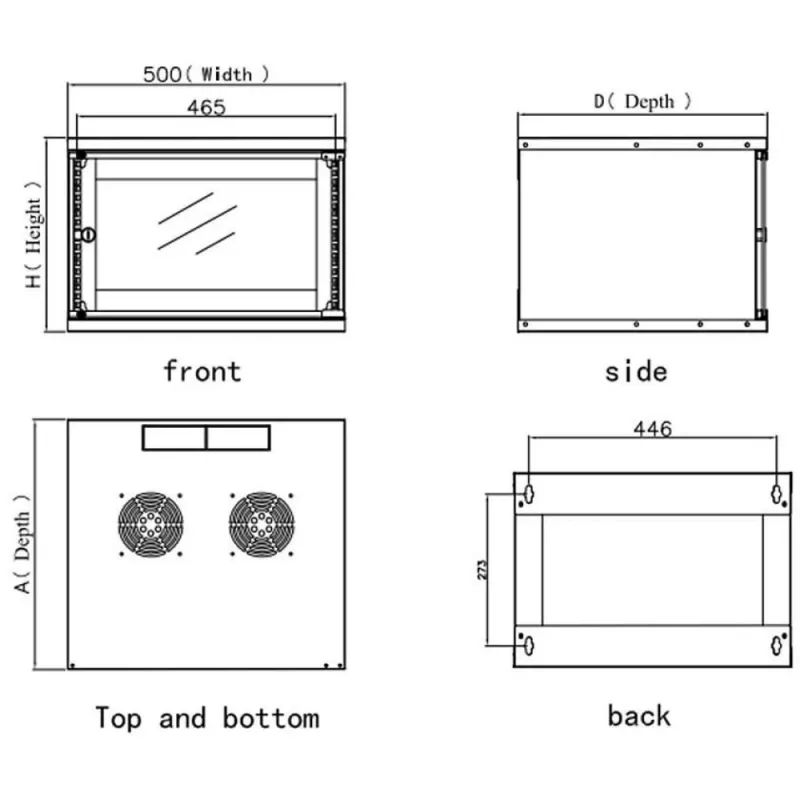

• Dimensions (HxWxD): 350 x 500 x 450 mm
• Material: welded cold-rolled steel
• Door: 5 mm tempered glass, removable and reversible, key lock
• Effective depth on uprights: 230 mm
• Static load: 50 kg
• IP rating: IP20
• Colour: RAL 9005 (black)
• Includes screws, nuts and installation key

How to use

Mount the cabinet on a suitable wall using appropriate anchors (not included) and the supplied installation kit. Install equipment on the pair of adjustable 19" front uprights, positioning them in one of the two available depths to achieve an effective equipment depth of 230 mm. Route cables through the pre-sheared entry profiles at the base or roof (225 x 45 mm). If additional cooling is required, install up to two 120 mm fans in the prepared positions on the roof and base.

Recommendations

For safe and reliable operation, install the rack on a load-bearing wall and ensure total mounted equipment does not exceed the 50 kg static load. Use appropriate wall anchors and observe IP20 indoor protection limits; avoid outdoor or wet locations.
