ICY DOCK ToughArmor MB508V5P-B 8-bay 2,5" U.2/U.3 NVMe SSD/HDD celokovový backplane modul

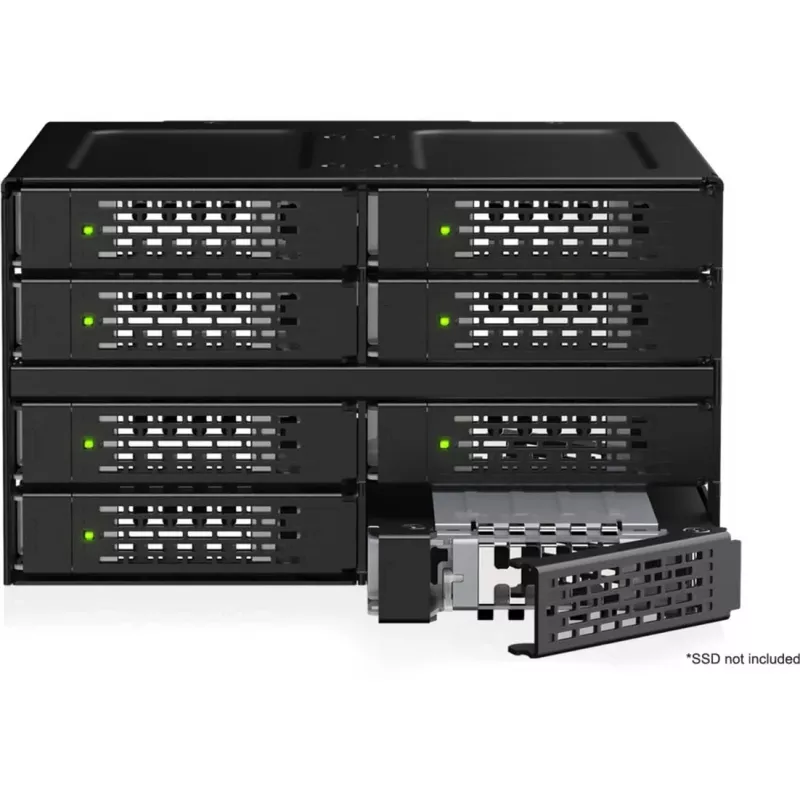

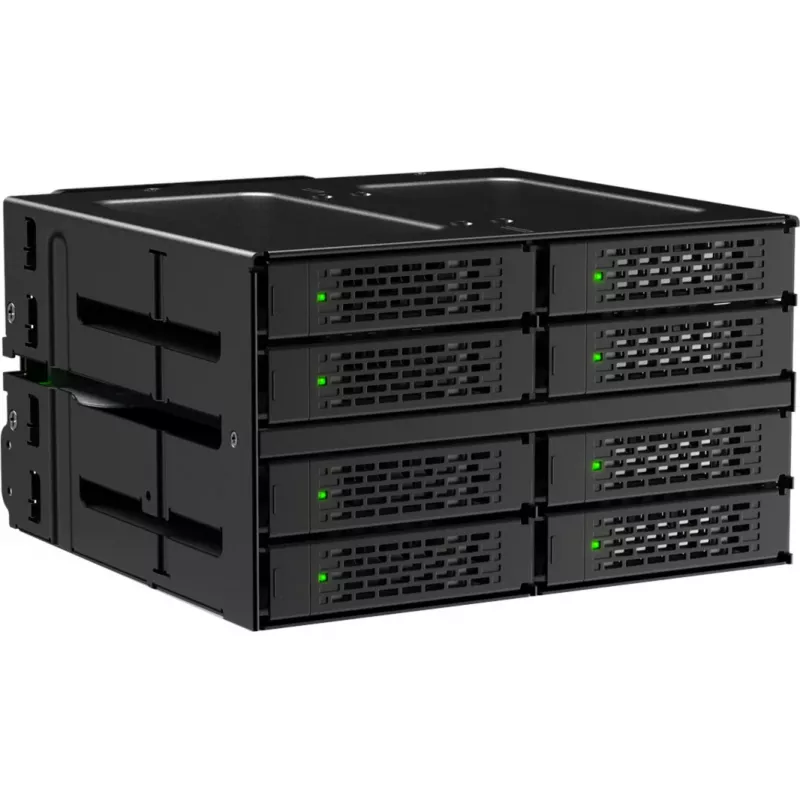

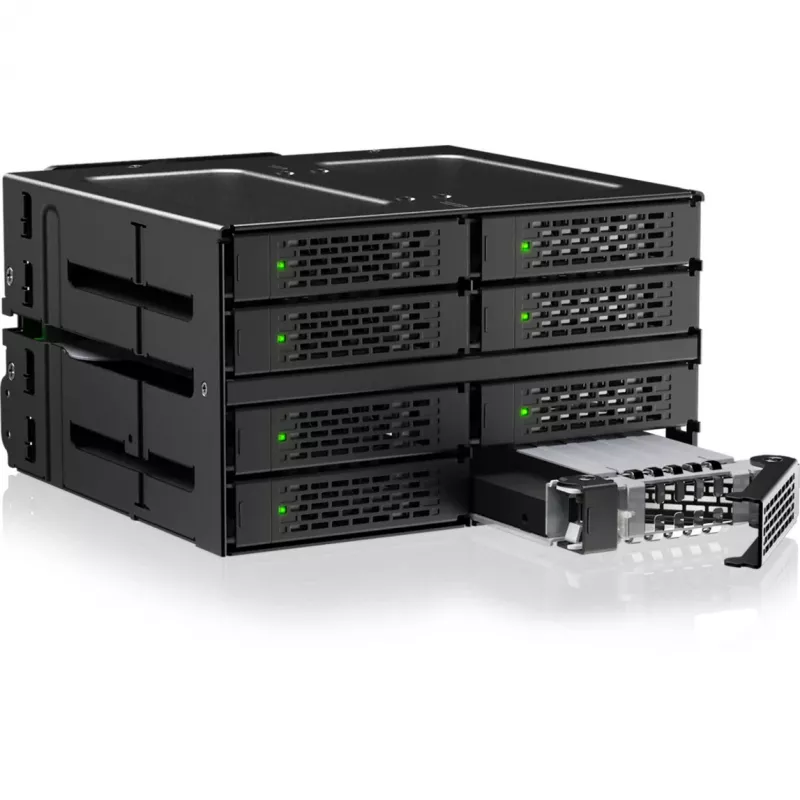

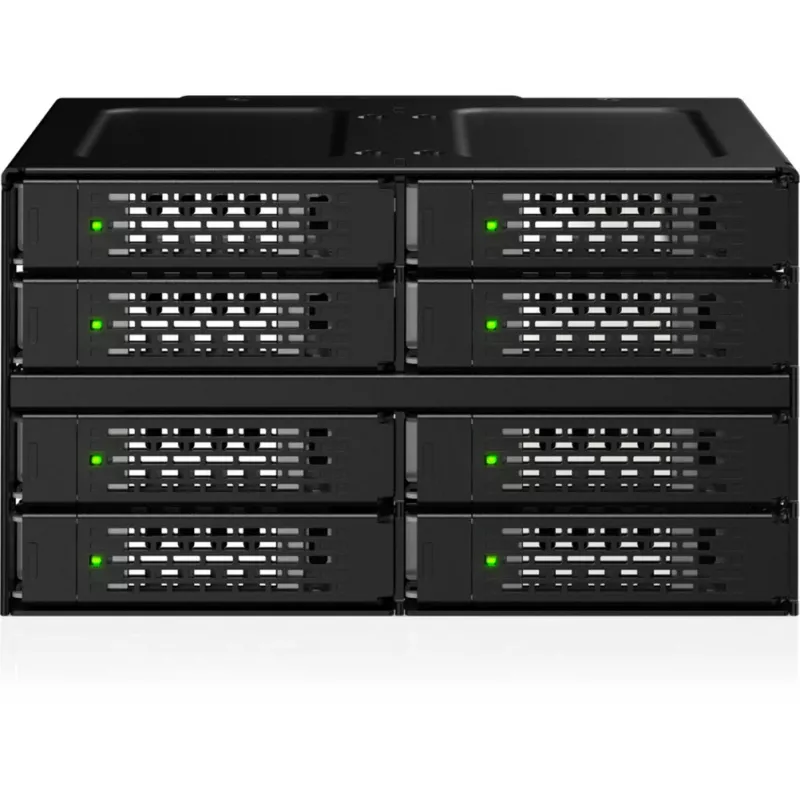

The ICY DOCK ToughArmor MB508V5P-B is a high-performance 8-bay backplane module designed for 2.5" U.2/U.3 NVMe SSDs and HDDs. Featuring full metal construction and dual OCuLink host interfaces, it delivers up to 64Gb/s per drive for demanding storage applications. Ideal for enterprise, industrial, and creative workflows requiring reliable hot-swap storage.

Advantages

Maximize storage density with 8 drives in a single 5.25" bay. Full metal build ensures durability and EMI grounding. Individual key locks and adjustable cooling fans provide security and thermal management. EZ-Slide Mini Trays simplify drive installation without tools.

Suitable for

• Enterprise servers and data centers
• Video production and post-production workstations
• Industrial computing and surveillance systems
• High-performance NAS and storage arrays

Key specifications

• Drive bays: 8x 2.5" U.2/U.3 NVMe SSD/HDD
• Host interface: 2x OCuLink (SFF-8612) for 8 drives
• Data transfer: Up to 64Gb/s per drive (PCIe Gen 4 x4)
• Installation bay: Single 5.25" optical drive bay
• Cooling: 2x 40mm adjustable speed fans
• Security: Individual key lock per drive tray
• Power: 2x SATA 15-pin power connectors
• Material: Full metal construction
• Drive height support: 7mm, 9.5mm, 15mm

Recommendations

For optimal performance, use with PCIe Gen 4 capable host systems and high-quality OCuLink cables. Ensure adequate airflow in the chassis.
