Techly nástenný rack 19" 6U prof. 450 sivý zmontovaný I-CASE EL-1006G45

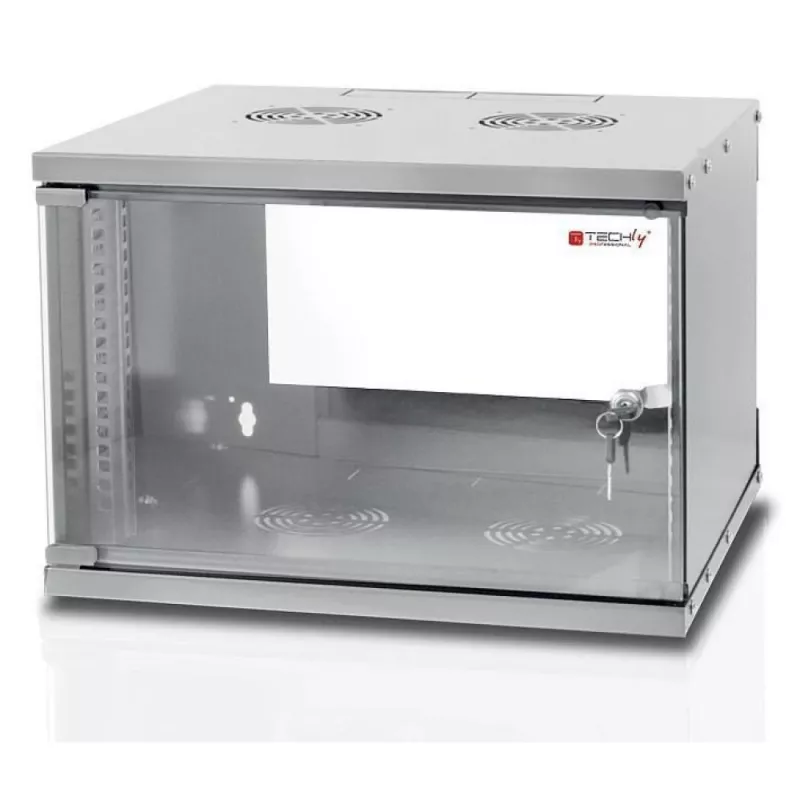

Built-in closet individual section supplied assembled, designed for secure equipment housing in server rooms, telecom cabinets or industrial installations. The unit features a solid welded cold-rolled steel frame and a 5 mm tempered glass front door that is removable and reversible, with an opening angle greater than 180° and a key lock. Side panels are fixed and non-removable. The cabinet includes prepared cable entry points on the base and roof profiles via knockouts (225 x 45 mm) and provision for installing two 120 mm fans on the roof and on the base. It comes with a pair of 19" front mounting rails and a hardware kit for installation.

Advantages

The welded cold-rolled steel construction provides structural rigidity and long-term durability while the removable, reversible tempered glass door allows visual inspection without opening the cabinet. Fixed side panels increase security and prevent accidental access. Cable knockouts and fan preparation simplify installation and ventilation upgrades. Adjustable 19" front rails support standard equipment mounting and the included installation kit reduces the need for additional accessories.

Key specifications

• Supply condition: supplied assembled
• Material: welded cold-rolled steel
• Front door: tempered glass 5 mm, removable and reversible, opening angle >180°, key lock
• Side panels: fixed, non-removable
• Cable entry: knockouts on base and roof profiles (225 x 45 mm)

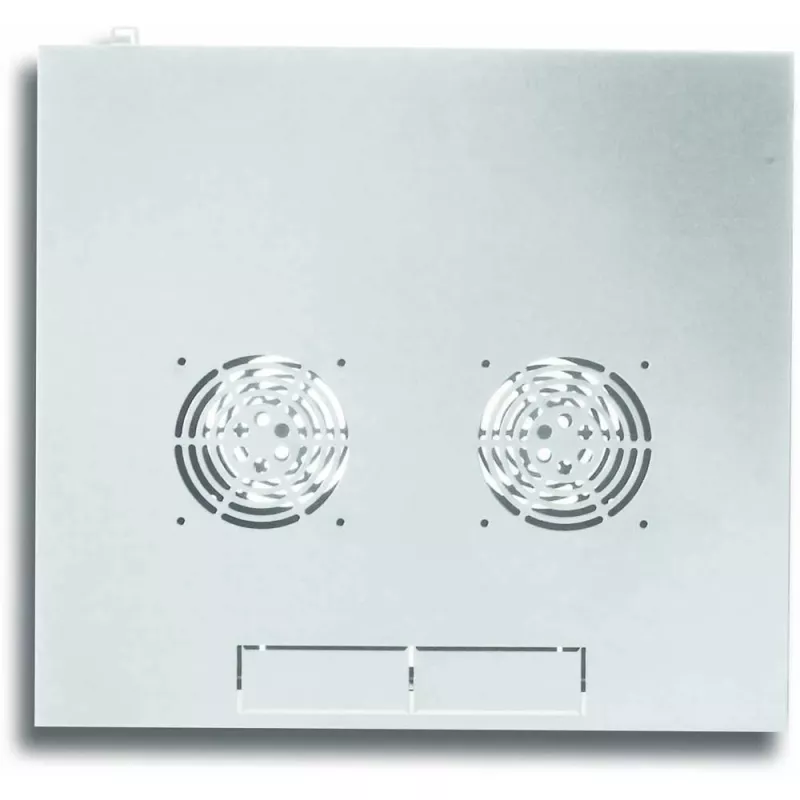

• Fan provision: preparation for two 120 mm fans on roof and base
• Front rails: pair of 19" by 1.5 mm, adjustable in two positions (effective depth 230 mm)
• Static load capacity: 50 kg
• Protection rating: IP20
• Includes: kit of screws, nuts and installation key

How to use

Install the assembled cabinet in the desired built-in location, secure it according to local mounting requirements, and connect equipment to the adjustable 19" rails. Use the knockouts on the base and roof profiles for cable entry and route cables through the prepared openings. If additional ventilation is required, install up to two 120 mm fans in the prepared roof and base locations. Lock the tempered glass door with the supplied key when access is not needed.

Recommendations

For safe operation, ensure the cabinet is mounted on a suitable support to handle the 50 kg static load, maintain proper airflow if fans are not installed, and observe IP20 protection limitations by avoiding exposure to liquids. Use the supplied installation kit and verify rail positions before mounting equipment.
